Suzuki DF 40 Parts Listings - 2010
S/N 04002F-010001 to 04002F-01XXXX

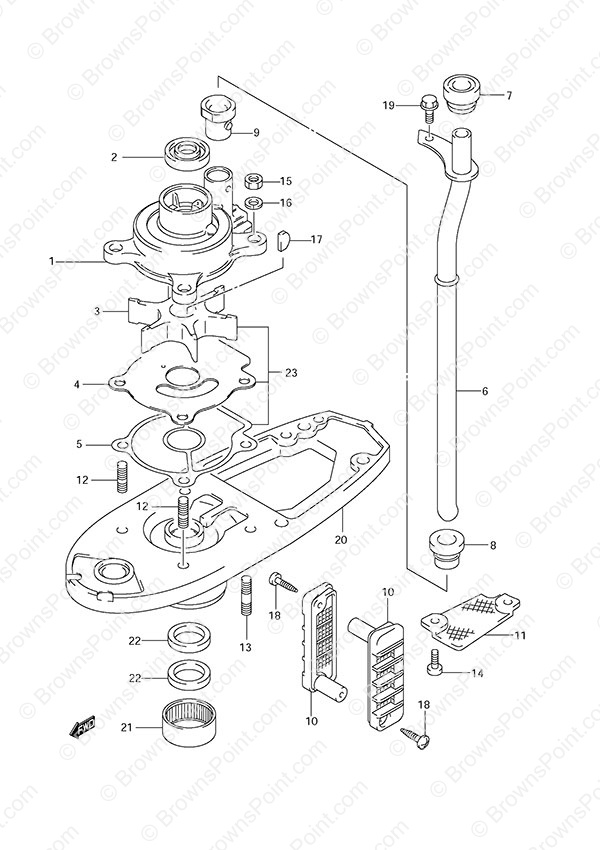

Fig. 15 - Water Pump
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 3 | 17461-96312 Water Pump Impeller
SKU: 17461-96312 Weight: 0.060000 Brand: Price: $ 30.31 |
Water Pump Impeller | 1 | $ 30.31 | ||
| 4 | 17471-94401 Water Pump Plate
SKU: 17471-94401 Weight: 0.100000 Brand: Price: $ 8.73 |
Water Pump Plate | 1 | $ 8.73 | ||
| 5 | 17472-96304 Water Pump Plate Gasket
SKU: 17472-96304 Weight: 0.060000 Brand: Price: $ 2.28 |
Water Pump Plate Gasket | 1 | $ 2.28 | ||
| 6-1 | 17560-87J11 Water Tube (S) (NLA)
SKU: 17560-87J11 Weight: 0.100000 Brand: Price: $ 29.61 |
Water Tube (S) (NLA) | 1 | $ 29.61 | w/Transom (S) | |
| 6-2 | 17560-87J01 Water Tube (L)
SKU: 17560-87J01 Weight: 0.100000 Brand: Price: $ 44.06 |
Water Tube (L) | 1 | $ 44.06 | w/Transom (L) | |
| 7 | 17563-94400 Water Tube Grommet
SKU: 17563-94400 Weight: 0.060000 Brand: Price: $ 3.93 |
Water Tube Grommet | 1 | $ 3.93 | Upper | |
| 8 | 17565-94400 Water Tube Grommet
SKU: 17565-94400 Weight: 0.060000 Brand: Price: $ 4.67 |
Water Tube Grommet | 1 | $ 4.67 | Middle w/Transom (L) | |
| 9 | 17566-94401 Water Tube Grommet
SKU: 17566-94401 Weight: 0.060000 Brand: Price: $ 2.53 |
Water Tube Grommet | 1 | $ 2.53 | Lower | |
| 10 | 17631-96320 Water Filter
SKU: 17631-96320 Weight: 0.060000 Brand: Price: $ 7.63 |
Water Filter | 2 | $ 7.63 | ||
| 11-1 | 17635-87E00 Sub Water Filter
SKU: 17635-87E00 Weight: 0.060000 Brand: Price: $ 5.02 |
Sub Water Filter | 1 | $ 5.02 | Standard | |
| 11-2 | 17635-87E10 Gear Case Plate
SKU: 17635-87E10 Weight: 0.250000 Brand: Price: $ 109.56 |
Gear Case Plate | 1 | $ 109.56 | Optional | |
| 12 | 09108-06060 Stud Bolt (6x18)
SKU: 09108-06060 Weight: 0.060000 Brand: Price: $ 1.74 |
Stud Bolt (6x18) | 2 | $ 1.74 | ||
| 13 | 09108-06061 Stud Bolt (6x35)
SKU: 09108-06061 Weight: 0.060000 Brand: Price: $ 4.53 |
Stud Bolt (6x35) | 2 | $ 4.53 | ||
| 14 | 09125-05046 Screw (5x12)
SKU: 09125-05046 Weight: 0.060000 Brand: Price: $ 1.82 |
Screw (5x12) | 2 | $ 1.82 | ||
| 15 | 29141-93J00 Nut (6mm)
SKU: 29141-93J00 Weight: 0.060000 Brand: Price: $ 1.80 |
Nut (6mm) | 4 | $ 1.80 | ||
| 16 | 29162-93J00 Lock Washer
SKU: 29162-93J00 Weight: 0.060000 Brand: Price: $ 1.52 |
Lock Washer | 4 | $ 1.52 | ||
| 17 | 09420-04006 Impeller Key
SKU: 09420-04006 Weight: 0.060000 Brand: Price: $ 3.93 |
Impeller Key | 1 | $ 3.93 | ||
| 18 | 03142-04309 SCREW 4 X 30
SKU: 03142-04309 Weight: 0.060000 Brand: Price: $ 2.34 |
SCREW 4 X 30 | 2 | $ 2.34 | ||
| 19 | 09116-06094 Bolt (6x15)
SKU: 09116-06094 Weight: 0.060000 Brand: Price: $ 2.28 |
Bolt (6x15) | 1 | $ 2.28 | ||
| 20 | 56130-94431-0EP Drive Shaft Bearing Housing
SKU: 56130-94431-0EP Weight: 1.260000 Brand: Price: $ 187.51 |
Drive Shaft Bearing Housing | 1 | $ 187.51 | ||
| 21 | 09263-25025 Bearing (25x33x15)
SKU: 09263-25025 Weight: 0.250000 Brand: Price: $ 25.46 |
Bearing (25x33x15) | 1 | $ 25.46 | ||
| 22 | 09282-17005 Oil Seal (16x32x6)
SKU: 09282-17005 Weight: 0.060000 Brand: Price: $ 6.28 |
Oil Seal (16x32x6) | 2 | $ 6.28 | ||
| 23 | 17400-96354 Water Pump Repair Kit DF25-50 DT20-40c
SKU: 17400-96354 Weight: 0.250000 Brand: Price: $ 33.32 |
Water Pump Repair Kit DF25-50 DT20-40c | 1 | $ 33.32 | Includes Ref# 3 to 5 17 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
