Suzuki DF 40 Parts Listings - 2010
S/N 04002F-010001 to 04002F-01XXXX

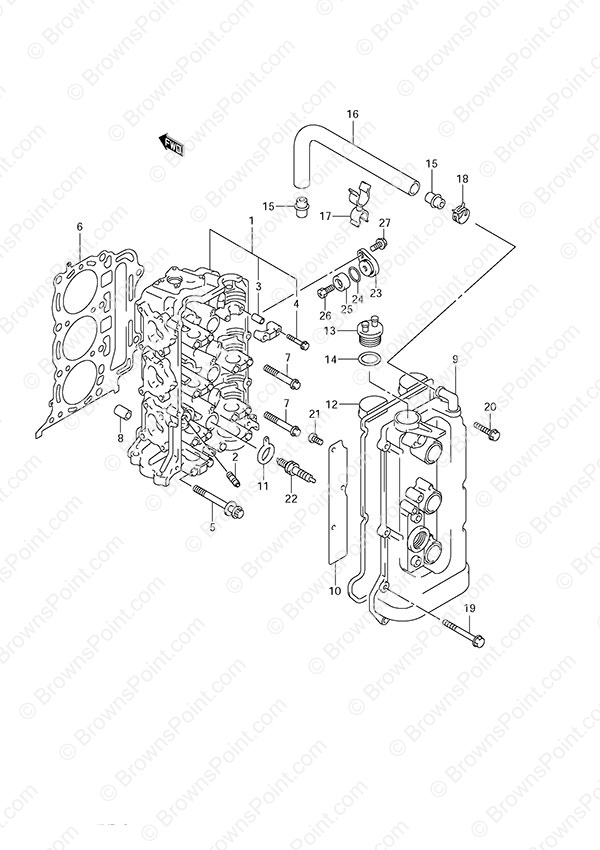

Fig. 1 - Cylinder Head
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 11100-87J23 Cylinder Head
SKU: 11100-87J23 Weight: 27.000000 Brand: Price: $ 1,839.80 |
Cylinder Head | 1 | $ 1,839.80 | ||
| 2 | 11115-73G01-001 Valve Guide
SKU: 11115-73G01-001 Weight: 0.125000 Brand: Price: $ 27.40 |
Valve Guide | 12 | $ 27.40 | ||
| 3 | 09206-08001 Knock Pin (8x11)
SKU: 09206-08001 Weight: 0.060000 Brand: Price: $ 1.78 |
Knock Pin (8x11) | 14 | $ 1.78 | ||
| 4-1 | 11128-90J00 Camshaft Housing Bolt
SKU: 11128-90J00 Weight: 0.060000 Brand: Price: $ 2.99 |
Camshaft Housing Bolt | 17 | $ 2.99 | S/N 010001 to 011309 | |
| 4-2 | 09103-06266 Bolt (6x40)
SKU: 09103-06266 Weight: 0.250000 Brand: Price: $ 2.21 |
Bolt (6x40) | 17 | $ 2.21 | S/N 011310 to 01XXXX | |
| 5 | 11119-87J00 Cylinder Head Bolt
SKU: 11119-87J00 Weight: 0.140000 Brand: Price: $ 7.49 |
Cylinder Head Bolt | 8 | $ 7.49 | ||
| 6 | 11141-87J02 Cylinder Head Gasket
SKU: 11141-87J02 Weight: 0.200000 Brand: Price: $ 64.77 |
Cylinder Head Gasket | 1 | $ 64.77 | ||
| 7 | 11116-87J30 Cylinder Head Bolt
SKU: 11116-87J30 Weight: 0.200000 Brand: Price: $ 5.32 |
Cylinder Head Bolt | 2 | $ 5.32 | ||
| 8 | 04211-13189 PIN
SKU: 04211-13189 Weight: 0.060000 Brand: Price: $ 2.21 |
PIN | 2 | $ 2.21 | ||
| 9 | 11170-87J00 Cylinder Head Cover (NLA)
SKU: 11170-87J00 Weight: 0.100000 Brand: Price: $ 231.57 |
Cylinder Head Cover (NLA) | 1 | $ 231.57 | ||
| 10 | 11173-87J01 Breather Plate
SKU: 11173-87J01 Weight: 0.060000 Brand: Price: $ 6.21 |
Breather Plate | 1 | $ 6.21 | ||
| 11 | 11179-73G00 Spark Plug Hole Gasket
SKU: 11179-73G00 Weight: 0.060000 Brand: Price: $ 8.62 |
Spark Plug Hole Gasket | 3 | $ 8.62 | ||
| 12 | 11189-87J00 Cylinder Head Cover Gasket
SKU: 11189-87J00 Weight: 0.100000 Brand: Price: $ 25.67 |
Cylinder Head Cover Gasket | 1 | $ 25.67 | ||
| 13 | 11382-99E00 Oil Filler Cap
SKU: 11382-99E00 Weight: 0.060000 Brand: Price: $ 7.28 |
Oil Filler Cap | 1 | $ 7.28 | ||
| 14 | 09280-26006 O-Ring
SKU: 09280-26006 Weight: 0.060000 Brand: Price: $ 2.80 |
O-Ring | 1 | $ 2.80 | ||
| 15 | 11176-87J00 Breather Hose Jet (NLA)
SKU: 11176-87J00 Weight: 0.100000 Brand: Price: $ 3.02 |
Breather Hose Jet (NLA) | 2 | $ 3.02 | ||
| 16 | 11174-99800 Breather Hose Set
SKU: 11174-99800 Weight: 0.500000 Brand: Price: $ 24.22 |
Breather Hose Set | 1 | $ 24.22 | ||
| 17 | 09408-00140 Clamp
SKU: 09408-00140 Weight: 0.100000 Brand: Price: $ 5.16 |
Clamp | 1 | $ 5.16 | ||
| 18 | 09401-20409 Clip
SKU: 09401-20409 Weight: 0.060000 Brand: Price: $ 3.71 |
Clip | 1 | $ 3.71 | ||
| 19 | 01547-06457 BOLT 6X45
SKU: 01547-06457 Weight: 0.060000 Brand: Price: $ 2.33 |
BOLT 6X45 | 3 | $ 2.33 | ||
| 20 | 01547-06257 BOLT 6X25
SKU: 01547-06257 Weight: 0.060000 Brand: Price: $ 2.04 |
BOLT 6X25 | 9 | $ 2.04 | ||
| 21 | 02142-0612A SCREW
SKU: 02142-0612A Weight: 0.100000 Brand: Price: $ 1.38 |
SCREW | 3 | $ 1.38 | ||
| 22 | 09482-00446 NGK DCPR6E Spark Plug
SKU: 09482-00446 Weight: 0.187500 Brand: Price: $ 3.57 |
NGK DCPR6E Spark Plug | 3 | $ 3.57 | ||
| 23 | 11261-93J00 Protection Anode Cover
SKU: 11261-93J00 Weight: 0.150000 Brand: Price: $ 16.29 |
Protection Anode Cover | 2 | $ 16.29 | ||
| 24 | 09280-22019 O-Ring
SKU: 09280-22019 Weight: 0.060000 Brand: Price: $ 2.38 |
O-Ring | 2 | $ 2.38 | ||
| 25 | 55321-87J01 Aluminum Anode
SKU: 55321-87J01 Weight: 0.125000 Brand: Price: $ 7.36 |
Aluminum Anode | 2 | $ 7.36 | ||
| 26 | 09103-06281 Bolt (6x14)
SKU: 09103-06281 Weight: 0.060000 Brand: Price: $ 2.99 |
Bolt (6x14) | 2 | $ 2.99 | ||
| 27 | 01550-08207 BOLT
SKU: 01550-08207 Weight: 0.060000 Brand: Price: $ 2.74 |
BOLT | 2 | $ 2.74 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
