Suzuki DF 40 Parts Listings - 2008
S/N 04001F-880001 to 04001F-88XXXX

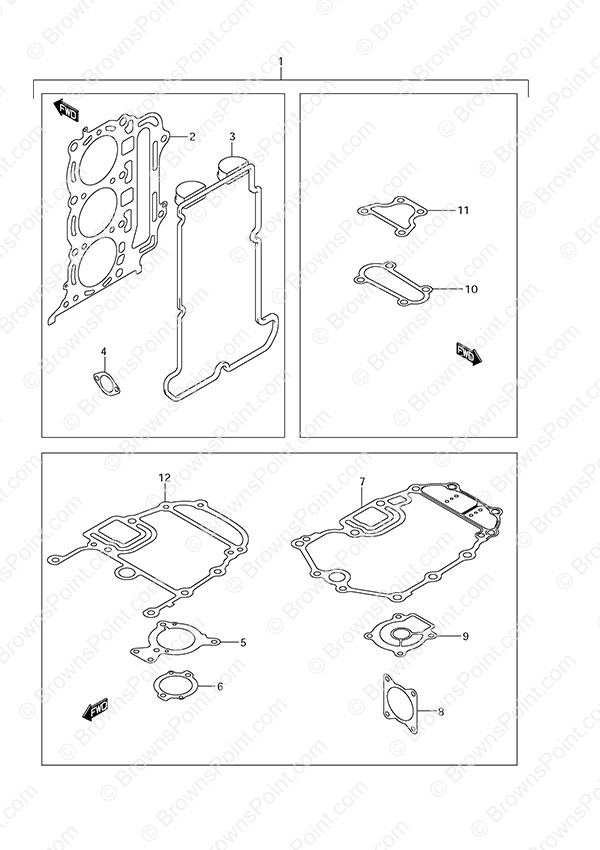

Fig. 71 - Opt: Gasket Set
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 11400-87805 Engine Gasket Set
SKU: 11400-87805 Weight: 5.000000 Brand: Price: $ 133.79 |
Engine Gasket Set | 1 | $ 133.79 | ||
| 2 | 11141-87J02 Cylinder Head Gasket
SKU: 11141-87J02 Weight: 0.200000 Brand: Price: $ 64.77 |
Cylinder Head Gasket | 1 | $ 64.77 | ||
| 3 | 11189-87J00 Cylinder Head Cover Gasket
SKU: 11189-87J00 Weight: 0.100000 Brand: Price: $ 25.67 |
Cylinder Head Cover Gasket | 1 | $ 25.67 | ||
| 4 | 11265-87E10 Protection Cover Gasket
SKU: 11265-87E10 Weight: 0.060000 Brand: Price: $ 3.81 |
Protection Cover Gasket | 1 | $ 3.81 | ||
| 5 | 11413-87J00 Upper Oil Seal Housing Gasket
SKU: 11413-87J00 Weight: 0.200000 Brand: Price: $ 6.55 |
Upper Oil Seal Housing Gasket | 1 | $ 6.55 | ||
| 6 | 11433-87J00 Under Oil Seal Housing Gasket
SKU: 11433-87J00 Weight: 0.060000 Brand: Price: $ 3.99 |
Under Oil Seal Housing Gasket | 1 | $ 3.99 | ||
| 7 | 11489-87J00 Oil Pan Gasket
SKU: 11489-87J00 Weight: 0.060000 Brand: Price: $ 34.24 |
Oil Pan Gasket | 1 | $ 34.24 | ||
| 8 | 13421-87J00 Throttle Body Gasket
SKU: 13421-87J00 Weight: 0.060000 Brand: Price: $ 3.50 |
Throttle Body Gasket | 1 | $ 3.50 | ||
| 9 | 17472-96304 Water Pump Plate Gasket
SKU: 17472-96304 Weight: 0.060000 Brand: Price: $ 2.28 |
Water Pump Plate Gasket | 1 | $ 2.28 | ||
| 10 | 17616-87J00 Pressure Valve Cover Gasket
SKU: 17616-87J00 Weight: 0.060000 Brand: Price: $ 3.37 |
Pressure Valve Cover Gasket | 1 | $ 3.37 | ||
| 11 | 17685-87D10 Thermostat Gasket
SKU: 17685-87D10 Weight: 0.060000 Brand: Price: $ 3.17 |
Thermostat Gasket | 1 | $ 3.17 | ||
| 12 | 51211-87J00 Engine Holder Gasket
SKU: 51211-87J00 Weight: 0.500000 Brand: Price: $ 29.22 |
Engine Holder Gasket | 1 | $ 29.22 | ||
| 13 | 99011-87J09-03A Owners Manual DF40/50 2008
SKU: 99011-87J09-03A Weight: 0.250000 Brand: Price: $ 18.00 |
Owners Manual DF40/50 2008 | 1 | $ 18.00 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
