Suzuki DF 40 Parts Listings - 2007
S/N 04001F-780001 to 04001F-78XXXX

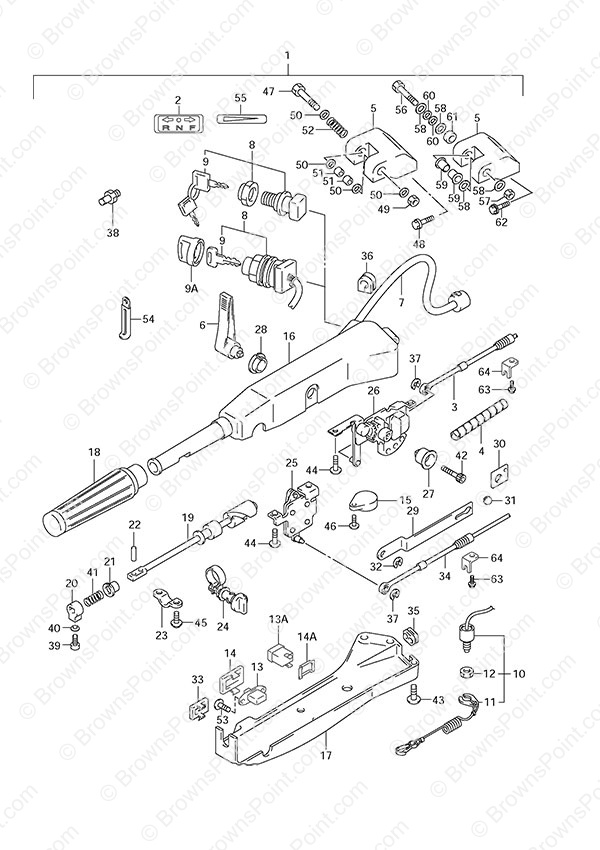

Fig. 70 - Opt: Tiller Handle
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 63002-87J26-0EP DF40/DF50 Tiller Handle Kit
SKU: 63002-87J26-0EP Weight: 40.000000 Brand: Price: $ 891.57 |
DF40/DF50 Tiller Handle Kit | 1 | $ 891.57 | ||
| 2 | 21131-94J00-YAY Clutch Shift Mark
SKU: 21131-94J00-YAY Weight: 0.060000 Brand: Price: $ 1.46 |
Clutch Shift Mark | 1 | $ 1.46 | ||
| 3 | 23230-87J00 Clutch Cable
SKU: 23230-87J00 Weight: 0.500000 Brand: Price: $ 90.97 |
Clutch Cable | 1 | $ 90.97 | ||
| 4 | 33833-91J00 Tube (6x8x250)
SKU: 33833-91J00 Weight: 0.125000 Brand: Price: $ 7.13 |
Tube (6x8x250) | 1 | $ 7.13 | L:250->100 | |
| 5 | 43761-87J30-0EP Tiller Handle Bracket
SKU: 43761-87J30-0EP Weight: 0.100000 Brand: Price: $ 156.38 |
Tiller Handle Bracket | 1 | $ 156.38 | ||
| 6 | 21111-87J10-0EP Clutch Lever
SKU: 21111-87J10-0EP Weight: 1.000000 Brand: Price: $ 81.34 |
Clutch Lever | 1 | $ 81.34 | ||
| 7 | 36620-87J20 Handle Wiring Harness (NLA)
SKU: 36620-87J20 Weight: 1.000000 Brand: Price: $ 131.78 |
Handle Wiring Harness (NLA) | 1 | $ 131.78 | ||
| 8 | 37110-87J21 Ignition Switch Assembly
SKU: 37110-87J21 Weight: 0.250000 Brand: Price: $ 102.86 |
Ignition Switch Assembly | 1 | $ 102.86 | ||
| 9-1 | 37141-99E00 (931) Ignition Key
SKU: 37141-99E00 Weight: 0.060000 Brand: Price: $ 15.38 |
(931) Ignition Key | 1 | $ 15.38 | ||
| 9-2 | 37141-99E10 (932) Ignition Key
SKU: 37141-99E10 Weight: 0.060000 Brand: Price: $ 15.38 |
(932) Ignition Key | 1 | $ 15.38 | ||
| 9-3 | 37141-99E20 (933) Ignition Key
SKU: 37141-99E20 Weight: 0.060000 Brand: Price: $ 15.38 |
(933) Ignition Key | 1 | $ 15.38 | ||
| 9-4 | 37141-99E30 (934) Ignition Key
SKU: 37141-99E30 Weight: 0.060000 Brand: Price: $ 15.38 |
(934) Ignition Key | 1 | $ 15.38 | ||
| 9-5 | 37141-99E40 (935) Ignition Key
SKU: 37141-99E40 Weight: 0.060000 Brand: Price: $ 15.38 |
(935) Ignition Key | 1 | $ 15.38 | ||
| 9-6 | 37141-99E50 (936) Ignition Key
SKU: 37141-99E50 Weight: 0.060000 Brand: Price: $ 15.38 |
(936) Ignition Key | 1 | $ 15.38 | ||
| 9-7 | 37141-99E60 (937) Ignition Key
SKU: 37141-99E60 Weight: 0.060000 Brand: Price: $ 15.38 |
(937) Ignition Key | 1 | $ 15.38 | ||
| 9-8 | 37141-99E70 (938) Ignition Key
SKU: 37141-99E70 Weight: 0.060000 Brand: Price: $ 15.38 |
(938) Ignition Key | 1 | $ 15.38 | ||
| 9-9 | 37141-99E80 (939) Ignition Key
SKU: 37141-99E80 Weight: 0.060000 Brand: Price: $ 15.38 |
(939) Ignition Key | 1 | $ 15.38 | ||
| 9-10 | 37141-99E90 (940) Ignition Key
SKU: 37141-99E90 Weight: 0.060000 Brand: Price: $ 15.38 |
(940) Ignition Key | 1 | $ 15.38 | ||
| 9-11 | 37141-99EA0 (941) Ignition Key
SKU: 37141-99EA0 Weight: 0.060000 Brand: Price: $ 15.38 |
(941) Ignition Key | 1 | $ 15.38 | ||
| 9-12 | 37141-99EB0 (942) Ignition Key
SKU: 37141-99EB0 Weight: 0.060000 Brand: Price: $ 15.38 |
(942) Ignition Key | 1 | $ 15.38 | ||
| 9A | 37143-99E01 Key Cap
SKU: 37143-99E01 Weight: 0.060000 Brand: Price: $ 6.09 |
Key Cap | 1 | $ 6.09 | ||
| 10 | 37820-87J03 Emergency Switch Assembly
SKU: 37820-87J03 Weight: 0.180000 Brand: Price: $ 43.65 |
Emergency Switch Assembly | 1 | $ 43.65 | ||
| 11 | 37823-92E02 Stop Switch Lanyard
SKU: 37823-92E02 Weight: 0.250000 Brand: Price: $ 19.68 |
Stop Switch Lanyard | 1 | $ 19.68 | ||
| 12 | 37826-92E00 Nut
SKU: 37826-92E00 Weight: 0.060000 Brand: Price: $ 5.77 |
Nut | 1 | $ 5.77 | ||
| 13 | 37860-94610 Trim Switch Assembly
SKU: 37860-94610 Weight: 0.100000 Brand: Price: $ 100.08 |
Trim Switch Assembly | 1 | $ 100.08 | ||
| 13A | 37850-87J00 Trim Switch Assembly
SKU: 37850-87J00 Weight: 0.250000 Brand: Price: $ 69.89 |
Trim Switch Assembly | 1 | $ 69.89 | ||
| 14 | 37869-95590 Trim Switch Cap
SKU: 37869-95590 Weight: 0.060000 Brand: Price: $ 9.04 |
Trim Switch Cap | 1 | $ 9.04 | ||
| 14A | 37852-87J00 Trim Switch Cap
SKU: 37852-87J00 Weight: 0.100000 Brand: Price: $ 17.33 |
Trim Switch Cap | 1 | $ 17.33 | ||
| 15 | 38500-92X50 Warning Buzzer
SKU: 38500-92X50 Weight: 0.260000 Brand: Price: $ 68.71 |
Warning Buzzer | 1 | $ 68.71 | ||
| 16 | 63109-87J00-0EP Tiller Handle Housing
SKU: 63109-87J00-0EP Weight: 5.000000 Brand: Price: $ 286.11 |
Tiller Handle Housing | 1 | $ 286.11 | ||
| 17 | 63121-87J04 Under Cover
SKU: 63121-87J04 Weight: 0.250000 Brand: Price: $ 48.78 |
Under Cover | 1 | $ 48.78 | ||
| 18 | 63210-93E30 Handle Grip
SKU: 63210-93E30 Weight: 1.500000 Brand: Price: $ 34.82 |
Handle Grip | 1 | $ 34.82 | ||
| 19 | 63221-87J00 Handle Rod
SKU: 63221-87J00 Weight: 0.100000 Brand: Price: $ 51.15 |
Handle Rod | 1 | $ 51.15 | ||
| 20 | 63223-92D00 Handle Rod Stopper
SKU: 63223-92D00 Weight: 0.060000 Brand: Price: $ 4.49 |
Handle Rod Stopper | 1 | $ 4.49 | ||
| 21 | 63225-93200 Handle Rod Bushing
SKU: 63225-93200 Weight: 0.060000 Brand: Price: $ 4.05 |
Handle Rod Bushing | 1 | $ 4.05 | ||
| 22 | 63227-93200 Handle Rod Pin
SKU: 63227-93200 Weight: 0.062500 Brand: Price: $ 2.18 |
Handle Rod Pin | 1 | $ 2.18 | ||
| 23 | 63235-87J00 Throttle Shaft Plate (NLA)
SKU: 63235-87J00 Weight: 0.100000 Brand: Price: $ 2.77 |
Throttle Shaft Plate (NLA) | 1 | $ 2.77 | ||
| 24 | 63240-87J00 Throttle Adjuster (NLA)
SKU: 63240-87J00 Weight: 0.100000 Brand: Price: $ 12.02 |
Throttle Adjuster (NLA) | 1 | $ 12.02 | ||
| 25 | 63250-87J01 Throttle Arm Assembly
SKU: 63250-87J01 Weight: 0.100000 Brand: Price: $ 171.87 |
Throttle Arm Assembly | 1 | $ 171.87 | ||
| 26 | 63260-87J02 Shift Gear Assembly
SKU: 63260-87J02 Weight: 0.500000 Brand: Price: $ 195.14 |
Shift Gear Assembly | 1 | $ 195.14 | ||
| 27 | 63261-87J00 Shift Gear Bushing
SKU: 63261-87J00 Weight: 0.100000 Brand: Price: $ 13.38 |
Shift Gear Bushing | 1 | $ 13.38 | ||
| 28 | 63262-87J00 Shift Lever Bushing
SKU: 63262-87J00 Weight: 0.100000 Brand: Price: $ 4.32 |
Shift Lever Bushing | 1 | $ 4.32 | ||
| 29 | 63271-87J00 Lock Plate
SKU: 63271-87J00 Weight: 0.250000 Brand: Price: $ 18.34 |
Lock Plate | 1 | $ 18.34 | ||
| 30 | 63272-87J00 Ball Guide Plate
SKU: 63272-87J00 Weight: 0.100000 Brand: Price: $ 13.13 |
Ball Guide Plate | 1 | $ 13.13 | ||
| 31 | 63273-87J00 Ball (NLA)
SKU: 63273-87J00 Weight: 0.100000 Brand: Price: $ 4.60 |
Ball (NLA) | 1 | $ 4.60 | ||
| 32 | 63274-87J00 E Ring (NLA)
SKU: 63274-87J00 Weight: 0.100000 Brand: Price: $ 1.85 |
E Ring (NLA) | 1 | $ 1.85 | ||
| 33 | 67263-99E00 Trim Switch Cover (NLA)
SKU: 67263-99E00 Weight: 0.060000 Brand: Price: $ 3.89 |
Trim Switch Cover (NLA) | 1 | $ 3.89 | ||
| 34 | 63610-87J00 Throttle Cable Assembly
SKU: 63610-87J00 Weight: 0.300000 Brand: Price: $ 91.49 |
Throttle Cable Assembly | 1 | $ 91.49 | ||
| 35 | 63625-87J00 Throttle Cable Grommet (NLA)
SKU: 63625-87J00 Weight: 0.060000 Brand: Price: $ 5.63 |
Throttle Cable Grommet (NLA) | 1 | $ 5.63 | ||
| 36 | 63626-87J01 Handle Wire Grommet (NLA)
SKU: 63626-87J01 Weight: 0.100000 Brand: Price: $ 8.45 |
Handle Wire Grommet (NLA) | 1 | $ 8.45 | ||
| 37 | 67292-87J00 E Ring
SKU: 67292-87J00 Weight: 0.060000 Brand: Price: $ 2.82 |
E Ring | 1 | $ 2.82 | ||
| 38 | 67473-89J00 Connector Pin
SKU: 67473-89J00 Weight: 0.060000 Brand: Price: $ 9.29 |
Connector Pin | 1 | $ 9.29 | ||
| 39 | 09126-06015 Screw (6x23)
SKU: 09126-06015 Weight: 0.060000 Brand: Price: $ 2.62 |
Screw (6x23) | 1 | $ 2.62 | ||
| 40 | 09163-06001 Lock Washer (6.4x12x0.5)
SKU: 09163-06001 Weight: 0.060000 Brand: Price: $ 1.49 |
Lock Washer (6.4x12x0.5) | 1 | $ 1.49 | ||
| 41 | 09440-12027 Spring
SKU: 09440-12027 Weight: 0.060000 Brand: Price: $ 1.39 |
Spring | 1 | $ 1.39 | ||
| 42 | 09106-08099 Bolt (8x50) (NLA)
SKU: 09106-08099 Weight: 0.100000 Brand: Price: $ 3.22 |
Bolt (8x50) (NLA) | 1 | $ 3.22 | ||
| 43 | 09125-05047 Screw (5x14)
SKU: 09125-05047 Weight: 0.100000 Brand: Price: $ 1.95 |
Screw (5x14) | 6 | $ 1.95 | ||
| 44 | 63251-87J00 Screw (6x12)
SKU: 63251-87J00 Weight: 0.100000 Brand: Price: $ 3.81 |
Screw (6x12) | 4 | $ 3.81 | ||
| 45 | 09136-05008 Screw (5x12)
SKU: 09136-05008 Weight: 0.060000 Brand: Price: $ 2.59 |
Screw (5x12) | 2 | $ 2.59 | ||
| 46 | 02142-05207 SCREW
SKU: 02142-05207 Weight: 0.060000 Brand: Price: $ 1.43 |
SCREW | 1 | $ 1.43 | ||
| 53 | 09139-02003 Screw (2x6)
SKU: 09139-02003 Weight: 0.060000 Brand: Price: $ 1.43 |
Screw (2x6) | 2 | $ 1.43 | ||
| 54 | 29404-93J30 Clamp (NLA)
SKU: 29404-93J30 Weight: 0.060000 Brand: Price: $ 1.67 |
Clamp (NLA) | 1 | $ 1.67 | ||
| 55 | 63215-93110 Handle Grip Mark
SKU: 63215-93110 Weight: 0.060000 Brand: Price: $ 3.19 |
Handle Grip Mark | 1 | $ 3.19 | ||
| 56 | 09100-10264 Bolt (10x80)
SKU: 09100-10264 Weight: 0.120000 Brand: Price: $ 8.05 |
Bolt (10x80) | 1 | $ 8.05 | ||
| 57 | 09159-10050 Nut
SKU: 09159-10050 Weight: 0.060000 Brand: Price: $ 2.59 |
Nut | 1 | $ 2.59 | ||
| 58 | 09160-10114 Washer (10.5x22x1.5)
SKU: 09160-10114 Weight: 0.060000 Brand: Price: $ 2.09 |
Washer (10.5x22x1.5) | 4 | $ 2.09 | ||
| 59 | 09306-10020 Bushing
SKU: 09306-10020 Weight: 0.060000 Brand: Price: $ 2.62 |
Bushing | 2 | $ 2.62 | ||
| 60 | 09164-10016 Washer
SKU: 09164-10016 Weight: 0.100000 Brand: Price: $ 4.58 |
Washer | 2 | $ 4.58 | ||
| 61 | 43768-90J01 Spacer
SKU: 43768-90J01 Weight: 0.100000 Brand: Price: $ 46.96 |
Spacer | 1 | $ 46.96 | ||
| 62 | 09116-10176 Bolt (10x44)
SKU: 09116-10176 Weight: 0.080000 Brand: Price: $ 6.81 |
Bolt (10x44) | 2 | $ 6.81 | ||
| 63 | 63611-87J00 Clamp Bracket Bolt
SKU: 63611-87J00 Weight: 0.100000 Brand: Price: $ 6.97 |
Clamp Bracket Bolt | 2 | $ 6.97 | ||
| 64 | 63612-87J00 Clamp Bracket
SKU: 63612-87J00 Weight: 0.100000 Brand: Price: $ 34.67 |
Clamp Bracket | 2 | $ 34.67 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
