Suzuki DF 40 Parts Listings - 2007
S/N 04001F-780001 to 04001F-78XXXX

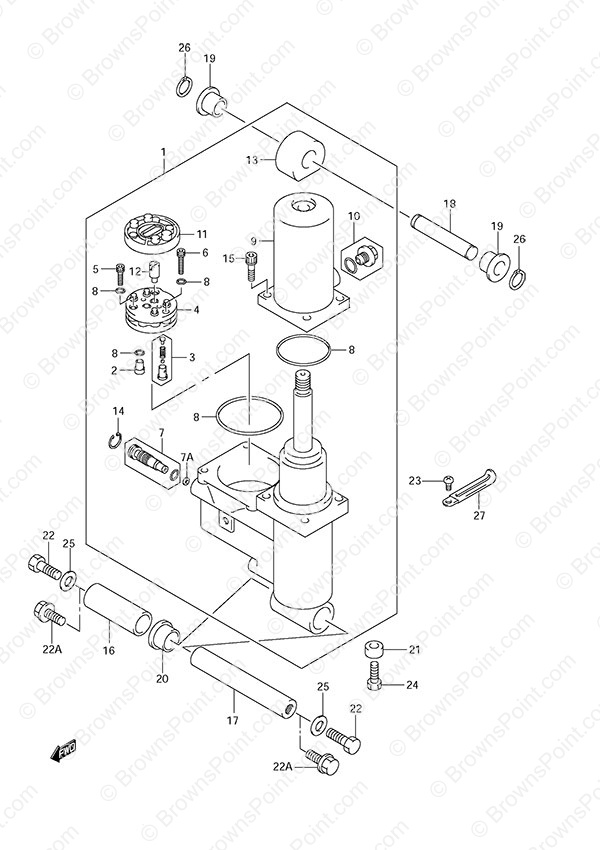

Fig. 42 - Power Trim
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 48000-87J42 Power Trim Assembly
SKU: 48000-87J42 Weight: 10.000000 Brand: Price: $ 1,783.94 |
Power Trim Assembly | 1 | $ 1,783.94 | ||
| 2 | 48320-87J10 Up Pressure Valve
SKU: 48320-87J10 Weight: 0.100000 Brand: Price: $ 40.01 |
Up Pressure Valve | 1 | $ 40.01 | ||
| 3 | 48330-87J10 Down Pressure Valve
SKU: 48330-87J10 Weight: 0.250000 Brand: Price: $ 32.15 |
Down Pressure Valve | 1 | $ 32.15 | ||
| 4 | 48510-97E00 Gear Pump Assembly
SKU: 48510-97E00 Weight: 0.300000 Brand: Price: $ 137.24 |
Gear Pump Assembly | 1 | $ 137.24 | ||
| 5 | 48541-87J10 Bolt (NLA)
SKU: 48541-87J10 Weight: 0.100000 Brand: Price: $ 9.31 |
Bolt (NLA) | 2 | $ 9.31 | ||
| 6 | 48541-87J20 Bolt (NLA)
SKU: 48541-87J20 Weight: 0.100000 Brand: Price: $ 9.80 |
Bolt (NLA) | 1 | $ 9.80 | ||
| 7 | 48551-87J40 Manual Valve
SKU: 48551-87J40 Weight: 0.120000 Brand: Price: $ 46.29 |
Manual Valve | 1 | $ 46.29 | ||
| 7A | 48553-88L00 Washer Seal
SKU: 48553-88L00 Weight: 0.060000 Brand: Price: $ 15.01 |
Washer Seal | 1 | $ 15.01 | ||
| 8 | 48557-87J10 O-Ring Set
SKU: 48557-87J10 Weight: 0.060000 Brand: Price: $ 12.65 |
O-Ring Set | 1 | $ 12.65 | ||
| 9 | 48571-87J21 Resevoir Tank
SKU: 48571-87J21 Weight: 0.750000 Brand: Price: $ 161.91 |
Resevoir Tank | 1 | $ 161.91 | ||
| 10 | 48572-87J10 Plug
SKU: 48572-87J10 Weight: 0.060000 Brand: Price: $ 20.90 |
Plug | 1 | $ 20.90 | ||
| 11 | 48582-97E01 Filter
SKU: 48582-97E01 Weight: 0.100000 Brand: Price: $ 19.97 |
Filter | 1 | $ 19.97 | ||
| 12 | 48583-87J10 Drive Joint
SKU: 48583-87J10 Weight: 0.060000 Brand: Price: $ 22.14 |
Drive Joint | 1 | $ 22.14 | ||
| 13 | 48611-87J10 Joint (NLA)
SKU: 48611-87J10 Weight: 0.100000 Brand: Price: $ 145.95 |
Joint (NLA) | 1 | $ 145.95 | ||
| 14 | 48681-87J11 Circlip
SKU: 48681-87J11 Weight: 0.100000 Brand: Price: $ 9.47 |
Circlip | 1 | $ 9.47 | ||
| 15 | 48862-87J20 Reservoir Tank Bolt
SKU: 48862-87J20 Weight: 0.060000 Brand: Price: $ 15.52 |
Reservoir Tank Bolt | 4 | $ 15.52 | ||
| 16 | 47225-87J00 Tilt Cylinder Lower Collar (NLA)
SKU: 47225-87J00 Weight: 0.100000 Brand: Price: $ 7.94 |
Tilt Cylinder Lower Collar (NLA) | 1 | $ 7.94 | ||
| 17 | 48121-89J10 Tilt Cylinder Lower Shaft
SKU: 48121-89J10 Weight: 0.100000 Brand: Price: $ 79.35 |
Tilt Cylinder Lower Shaft | 1 | $ 79.35 | ||
| 18 | 48321-89J11 Tilt Cylinder Upper Shaft
SKU: 48321-89J11 Weight: 0.100000 Brand: Price: $ 18.30 |
Tilt Cylinder Upper Shaft | 1 | $ 18.30 | ||
| 19 | 48325-89J00 Tilt Cylinder Upper Bushing
SKU: 48325-89J00 Weight: 0.125000 Brand: Price: $ 3.65 |
Tilt Cylinder Upper Bushing | 2 | $ 3.65 | ||
| 20 | 48326-87J00 Tilt Cylinder Lower Bushing
SKU: 48326-87J00 Weight: 0.125000 Brand: Price: $ 8.84 |
Tilt Cylinder Lower Bushing | 1 | $ 8.84 | ||
| 21 | 55321-87J01 Aluminum Anode
SKU: 55321-87J01 Weight: 0.125000 Brand: Price: $ 7.36 |
Aluminum Anode | 1 | $ 7.36 | ||
| 22A | 09116-10179 Bolt (10x35)
SKU: 09116-10179 Weight: 0.125000 Brand: Price: $ 11.01 |
Bolt (10x35) | 2 | $ 11.01 | ||
| 23 | 09125-06063 Screw (6x10)
SKU: 09125-06063 Weight: 0.060000 Brand: Price: $ 1.96 |
Screw (6x10) | 1 | $ 1.96 | ||
| 24 | 09103-06281 Bolt (6x14)
SKU: 09103-06281 Weight: 0.060000 Brand: Price: $ 2.99 |
Bolt (6x14) | 1 | $ 2.99 | ||
| 26 | 09380-12002 Snap Ring
SKU: 09380-12002 Weight: 0.060000 Brand: Price: $ 1.52 |
Snap Ring | 2 | $ 1.52 | ||
| 27 | 29404-93J11 Clamp (L:65)
SKU: 29404-93J11 Weight: 0.060000 Brand: Price: $ 1.57 |
Clamp (L:65) | 1 | $ 1.57 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
