Suzuki DF 40 Parts Listings - 2001
S/N 04001F-151001 to 04001F-15XXXX

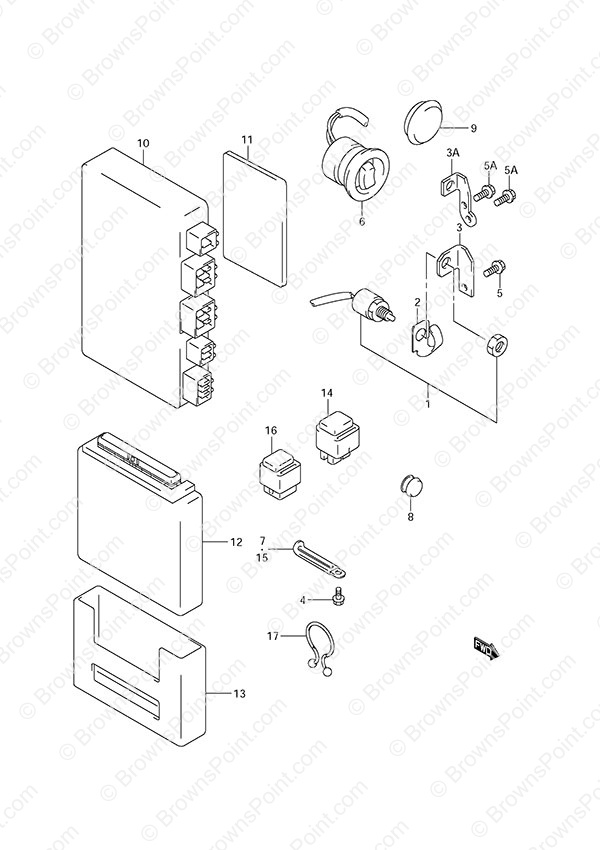

Fig. 33 - Engine Control Unit

Ref# Part Number Description Req Qty* Price Each Order Remarks
1 37721-99E02 Neutral Switch Assembly 1 $ 34.40
2 37725-95600 Switch Actuator 1 $ 5.35
3 37726-87J01 Neutral Switch Bracket 1 $ 6.41
4 02162-06127 BOLT 1 $ 1.48
5 01550-06167 BOLT 1 $ 2.33
6 37850-99E05 PTT Switch Assembly 1 $ 83.20
7 29404-93J11 Clamp (L:65) 2 $ 1.57
8 09250-12004 Plug (NLA) 1 $ 1.60
Warning Lamp Hole
9 09250-40002 Cap (NLA) 1 $ 2.85

Not Available

PTT Switch Hole
12 33920-87JA4 Engine Control Unit 1 $ 2,134.19
13 33925-87J00 ECU Cushion 1 $ 20.42
14 38910-92E00 Relay 1 $ 44.21
15 09404-08205 Clamp (L:62) 1 $ 2.06

Not Available

16 38915-90J00 Relay Holder 1 $ 4.39

Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each. The information on this page is specific to the model and year and/or serial number shown in the header above.

Please verify your model and serial number before placing your order.
