Suzuki DF 40 Parts Listings - 2001
S/N 04001F-151001 to 04001F-15XXXX

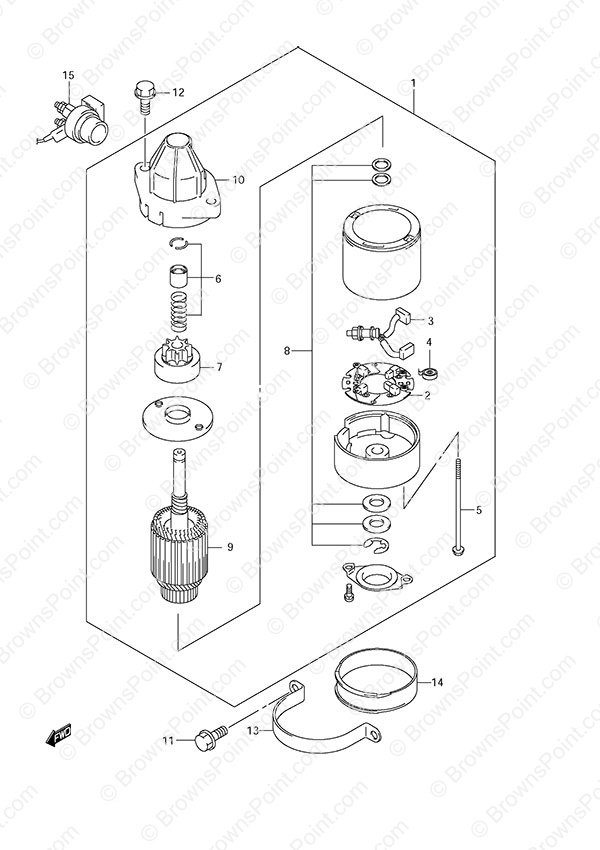

Fig. 25 - Starting Motor
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 31100-87J11 Starter Motor Assembly
SKU: 31100-87J11 Weight: 8.000000 Brand: Price: $ 892.44 |
Starter Motor Assembly | 1 | $ 892.44 | ||
| 2 | 31173-99E00 Brush Holder
SKU: 31173-99E00 Weight: 0.100000 Brand: Price: $ 126.57 |
Brush Holder | 1 | $ 126.57 | Includes Brush (-) | |
| 3 | 31131-99E00 Brush (+)
SKU: 31131-99E00 Weight: 0.060000 Brand: Price: $ 25.72 |
Brush (+) | 1 | $ 25.72 | ||
| 4 | 31135-99E00 Spring
SKU: 31135-99E00 Weight: 0.060000 Brand: Price: $ 4.52 |
Spring | 2 | $ 4.52 | ||
| 5 | 31281-93340 Through Bolt (NLA)
SKU: 31281-93340 Weight: 0.100000 Brand: Price: $ 3.24 |
Through Bolt (NLA) | 2 | $ 3.24 | ||
| 6 | 31312-87J10 Pinion Stopper Set
SKU: 31312-87J10 Weight: 0.100000 Brand: Price: $ 22.85 |
Pinion Stopper Set | 1 | $ 22.85 | ||
| 7 | 31320-87J10 Pinion Assembly (NLA)
SKU: 31320-87J10 Weight: 0.560000 Brand: Price: $ 220.56 |
Pinion Assembly (NLA) | 1 | $ 220.56 | ||
| 8 | 31360-87J10 Washer Set (NLA)
SKU: 31360-87J10 Weight: 0.100000 Brand: Price: $ 12.82 |
Washer Set (NLA) | 1 | $ 12.82 | ||
| 9 | 31310-87J10 Armature (NLA)
SKU: 31310-87J10 Weight: 5.000000 Brand: Price: $ 412.63 |
Armature (NLA) | 1 | $ 412.63 | ||
| 10 | 31151-87J11 Gear Case
SKU: 31151-87J11 Weight: 0.100000 Brand: Price: $ 242.98 |
Gear Case | 1 | $ 242.98 | ||
| 11 | 01550-08207 BOLT
SKU: 01550-08207 Weight: 0.060000 Brand: Price: $ 2.74 |
BOLT | 2 | $ 2.74 | ||
| 12 | 01550-08257 BOLT
SKU: 01550-08257 Weight: 0.060000 Brand: Price: $ 2.82 |
BOLT | 3 | $ 2.82 | ||
| 13 | 31912-94600 Starting Motor Band (NLA)
SKU: 31912-94600 Weight: 0.100000 Brand: Price: $ 4.37 |
Starting Motor Band (NLA) | 1 | $ 4.37 | ||
| 14 | 31918-94600 Lower Damper (NLA)
SKU: 31918-94600 Weight: 0.100000 Brand: Price: $ 7.01 |
Lower Damper (NLA) | 1 | $ 7.01 | ||
| 15 | 31800-94401 Starter Relay
SKU: 31800-94401 Weight: 0.340000 Brand: Price: $ 140.18 |
Starter Relay | 1 | $ 140.18 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
