Suzuki DF 40 Parts Listings - 2000
S/N 04001F-030001 to 04001F-03XXXX

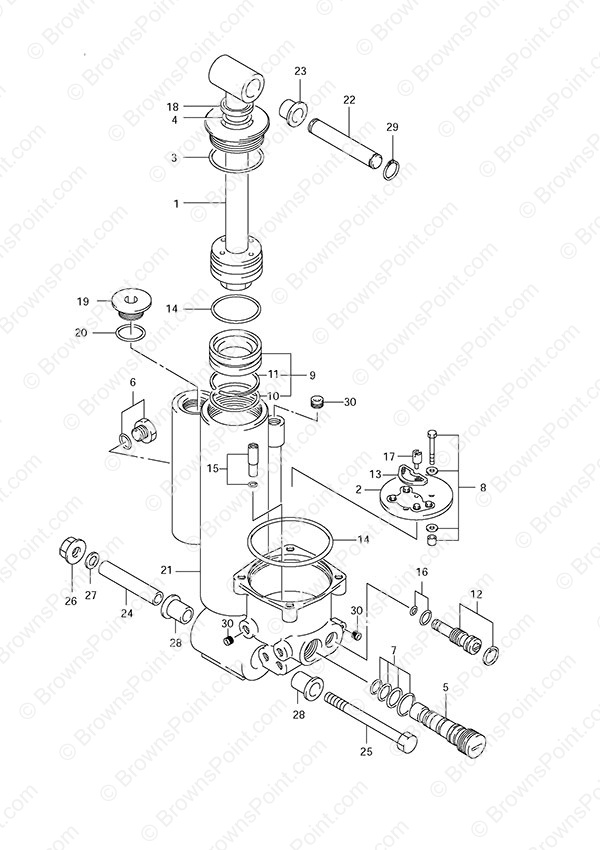

Fig. 41 - Power Trim
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 48601-97E01 Piston Rod (NLA)
SKU: 48601-97E01 Weight: 10.000000 Brand: Price: $ 352.75 |
Piston Rod (NLA) | 1 | $ 352.75 | ||
| 2 | 48510-97E00 Gear Pump Assembly
SKU: 48510-97E00 Weight: 0.300000 Brand: Price: $ 137.24 |
Gear Pump Assembly | 1 | $ 137.24 | ||
| 3 | 48633-97E00 Cylinder Head O-Ring
SKU: 48633-97E00 Weight: 0.060000 Brand: Price: $ 5.22 |
Cylinder Head O-Ring | 1 | $ 5.22 | ||
| 4 | 48634-97E00 Cylinder Head O-Ring (NLA)
SKU: 48634-97E00 Weight: 0.060000 Brand: Price: $ 2.70 |
Cylinder Head O-Ring (NLA) | 1 | $ 2.70 | ||
| 5 | 48530-87J00 Main Check Valve
SKU: 48530-87J00 Weight: 0.100000 Brand: Price: $ 146.66 |
Main Check Valve | 1 | $ 146.66 | ||
| 6 | 48572-97E00 Reservoir Plug Set
SKU: 48572-97E00 Weight: 0.060000 Brand: Price: $ 19.97 |
Reservoir Plug Set | 1 | $ 19.97 | ||
| 7 | 48536-97E01 O-Ring Set
SKU: 48536-97E01 Weight: 0.060000 Brand: Price: $ 14.37 |
O-Ring Set | 1 | $ 14.37 | ||
| 8 | 48541-97E01 Pump Bolt Set (NLA)
SKU: 48541-97E01 Weight: 0.100000 Brand: Price: $ 6.90 |
Pump Bolt Set (NLA) | 1 | $ 6.90 | ||
| 9 | 48650-97E00 Free Piston (NLA)
SKU: 48650-97E00 Weight: 0.100000 Brand: Price: $ 44.19 |
Free Piston (NLA) | 1 | $ 44.19 | ||
| 10 | 48405-87D00 Tilt O-Ring Set
SKU: 48405-87D00 Weight: 0.060000 Brand: Price: $ 5.35 |
Tilt O-Ring Set | 1 | $ 5.35 | ||
| 11 | 48615-97E00 Piston Ring Set
SKU: 48615-97E00 Weight: 0.060000 Brand: Price: $ 8.46 |
Piston Ring Set | 1 | $ 8.46 | ||
| 12 | 48550-87J00 Manual Valve Set
SKU: 48550-87J00 Weight: 0.100000 Brand: Price: $ 105.28 |
Manual Valve Set | 1 | $ 105.28 | ||
| 13 | 48582-97E01 Filter
SKU: 48582-97E01 Weight: 0.100000 Brand: Price: $ 19.97 |
Filter | 1 | $ 19.97 | ||
| 14 | 48505-87D10 O-Ring Set
SKU: 48505-87D10 Weight: 0.060000 Brand: Price: $ 15.40 |
O-Ring Set | 1 | $ 15.40 | ||
| 15 | 48830-97E01 Down Pressure Valve Set (NLA)
SKU: 48830-97E01 Weight: 0.100000 Brand: Price: $ 22.56 |
Down Pressure Valve Set (NLA) | 1 | $ 22.56 | ||
| 16 | 48557-97E00 O-Ring Set
SKU: 48557-97E00 Weight: 0.060000 Brand: Price: $ 3.83 |
O-Ring Set | 1 | $ 3.83 | ||
| 17 | 48583-87J00 Replaced by 48583-97E00
SKU: 48583-87J00 Weight: 0.100000 Brand: Price: $ 0.00 |
Replaced by 48583-97E00 | 1 | $ 0.00 | ||
| 18 | 48632-97E00 Cylinder Head Oil Seal (NLA)
SKU: 48632-97E00 Weight: 0.060000 Brand: Price: $ 9.02 |
Cylinder Head Oil Seal (NLA) | 1 | $ 9.02 | ||
| 19 | 48575-97E01 Reservoir Plug (NLA)
SKU: 48575-97E01 Weight: 0.100000 Brand: Price: $ 16.39 |
Reservoir Plug (NLA) | 1 | $ 16.39 | ||
| 20 | 48576-97E01 Reservoir Plug O-Ring
SKU: 48576-97E01 Weight: 0.100000 Brand: Price: $ 3.95 |
Reservoir Plug O-Ring | 1 | $ 3.95 | ||
| 21 | 48641-97E01-0EP PTT Manifold
SKU: 48641-97E01-0EP Weight: 0.100000 Brand: Price: $ 871.69 |
PTT Manifold | 1 | $ 871.69 | ||
| 22 | 48321-97E01 Upper Tilt Cylinder Shaft
SKU: 48321-97E01 Weight: 0.200000 Brand: Price: $ 17.53 |
Upper Tilt Cylinder Shaft | 1 | $ 17.53 | ||
| 23 | 48325-97E00 Tilt Cylinder Upper Bushing
SKU: 48325-97E00 Weight: 0.060000 Brand: Price: $ 3.82 |
Tilt Cylinder Upper Bushing | 2 | $ 3.82 | ||
| 24 | 48121-97E00 Tilt Cylinder Shaft (NLA)
SKU: 48121-97E00 Weight: 0.100000 Brand: Price: $ 29.57 |
Tilt Cylinder Shaft (NLA) | 1 | $ 29.57 | Lower | |
| 25 | 09100-10190-XC0 Bolt (10x145)
SKU: 09100-10190-XC0 Weight: 0.220000 Brand: Price: $ 19.52 |
Bolt (10x145) | 1 | $ 19.52 | ||
| 26 | 09159-10050 Nut
SKU: 09159-10050 Weight: 0.060000 Brand: Price: $ 2.59 |
Nut | 1 | $ 2.59 | ||
| 27 | 09160-10082 Washer (10.5x19x2.0)
SKU: 09160-10082 Weight: 0.060000 Brand: Price: $ 1.63 |
Washer (10.5x19x2.0) | 1 | $ 1.63 | ||
| 28 | 09307-18002 Bushing
SKU: 09307-18002 Weight: 0.060000 Brand: Price: $ 10.38 |
Bushing | 2 | $ 10.38 | ||
| 29 | 09380-12002 Snap Ring
SKU: 09380-12002 Weight: 0.060000 Brand: Price: $ 1.52 |
Snap Ring | 2 | $ 1.52 | ||
| 30 | 48690-97E00 Manifold Plug Set (NLA)
SKU: 48690-97E00 Weight: 0.100000 Brand: Price: $ 17.67 |
Manifold Plug Set (NLA) | 1 | $ 17.67 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
