Suzuki DF 40 Parts Listings - 2000
S/N 04001F-030001 to 04001F-03XXXX

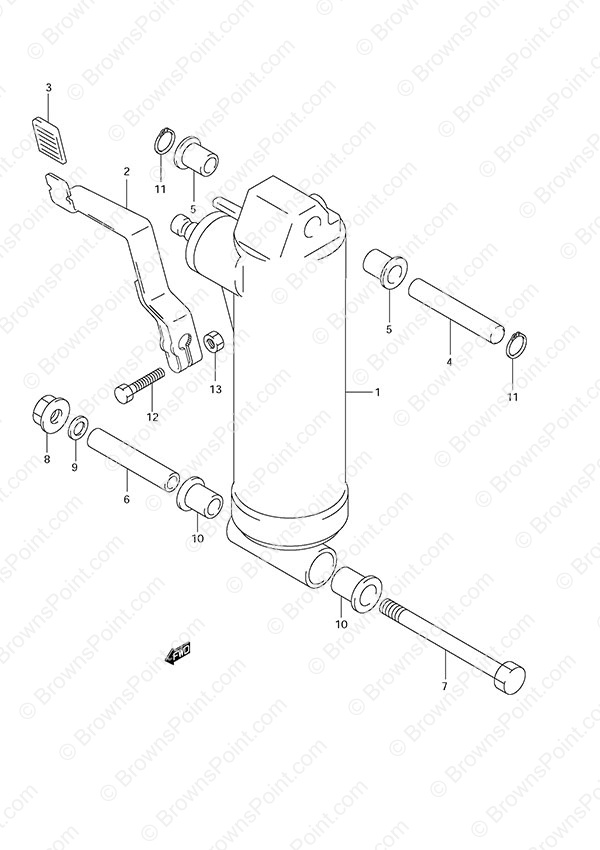

Fig. 39 - Gas Cylinder
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 47400-87J20-0EP Gas Cylinder Assembly (NLA)
SKU: 47400-87J20-0EP Weight: 0.100000 Brand: Price: $ 1,038.89 |
Gas Cylinder Assembly (NLA) | 1 | $ 1,038.89 | ||
| 2 | 45261-87J11 Release Lever (NLA)
SKU: 45261-87J11 Weight: 0.100000 Brand: Price: $ 17.01 |
Release Lever (NLA) | 1 | $ 17.01 | ||
| 3 | 45255-93001 Release Lever Rubber
SKU: 45255-93001 Weight: 0.100000 Brand: Price: $ 4.20 |
Release Lever Rubber | 1 | $ 4.20 | ||
| 4 | 48321-97E01 Upper Tilt Cylinder Shaft
SKU: 48321-97E01 Weight: 0.200000 Brand: Price: $ 17.53 |
Upper Tilt Cylinder Shaft | 1 | $ 17.53 | ||
| 5 | 48325-97E00 Tilt Cylinder Upper Bushing
SKU: 48325-97E00 Weight: 0.060000 Brand: Price: $ 3.82 |
Tilt Cylinder Upper Bushing | 2 | $ 3.82 | ||
| 6 | 48121-97E00 Tilt Cylinder Shaft (NLA)
SKU: 48121-97E00 Weight: 0.100000 Brand: Price: $ 29.57 |
Tilt Cylinder Shaft (NLA) | 1 | $ 29.57 | Lower | |
| 7 | 09100-10190-XC0 Bolt (10x145)
SKU: 09100-10190-XC0 Weight: 0.220000 Brand: Price: $ 19.52 |
Bolt (10x145) | 1 | $ 19.52 | ||
| 8 | 09159-10050 Nut
SKU: 09159-10050 Weight: 0.060000 Brand: Price: $ 2.59 |
Nut | 1 | $ 2.59 | ||
| 9 | 09160-10082 Washer (10.5x19x2.0)
SKU: 09160-10082 Weight: 0.060000 Brand: Price: $ 1.63 |
Washer (10.5x19x2.0) | 1 | $ 1.63 | ||
| 10 | 09307-18002 Bushing
SKU: 09307-18002 Weight: 0.060000 Brand: Price: $ 10.38 |
Bushing | 2 | $ 10.38 | ||
| 11 | 09380-12002 Snap Ring
SKU: 09380-12002 Weight: 0.060000 Brand: Price: $ 1.52 |
Snap Ring | 2 | $ 1.52 | ||
| 12 | 09117-06049 Bolt (6x25)
SKU: 09117-06049 Weight: 0.060000 Brand: Price: $ 3.08 |
Bolt (6x25) | 1 | $ 3.08 | ||
| 13 | 09140-06020 Nut (6mm)
SKU: 09140-06020 Weight: 0.060000 Brand: Price: $ 1.82 |
Nut (6mm) | 1 | $ 1.82 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
