Suzuki DF 40 Parts Listings - 2000
S/N 04001F-030001 to 04001F-03XXXX

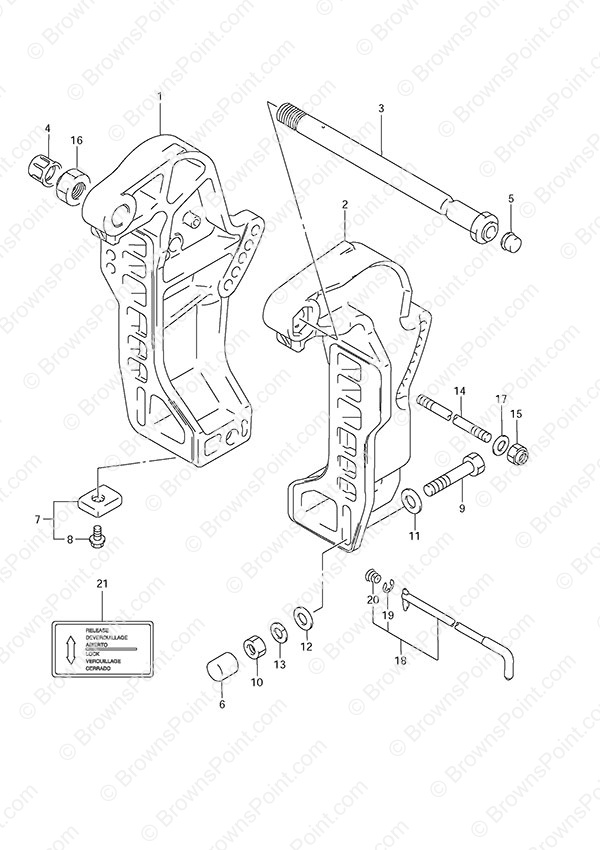

Fig. 35 - Clamp Bracket
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 41111-97E02-0EP Starboard Clamp Bracket (NLA)
SKU: 41111-97E02-0EP Weight: 10.000000 Brand: Price: $ 223.28 |
Starboard Clamp Bracket (NLA) | 1 | $ 223.28 | ||
| 2 | 41121-97E03-0EP Port Clamp Bracket (NLA)
SKU: 41121-97E03-0EP Weight: 10.000000 Brand: Price: $ 223.28 |
Port Clamp Bracket (NLA) | 1 | $ 223.28 | ||
| 3 | 41130-95292 Clamp Bracket Shaft
SKU: 41130-95292 Weight: 1.500000 Brand: Price: $ 283.97 |
Clamp Bracket Shaft | 1 | $ 283.97 | ||
| 4 | 41151-94500 Clamp Bracket Shaft Cap
SKU: 41151-94500 Weight: 0.060000 Brand: Price: $ 2.85 |
Clamp Bracket Shaft Cap | 1 | $ 2.85 | ||
| 5 | 41152-94500 Clamp Bracket Shaft Plug
SKU: 41152-94500 Weight: 0.125000 Brand: Price: $ 2.22 |
Clamp Bracket Shaft Plug | 1 | $ 2.22 | ||
| 6 | 41153-94500 Transom Bolt Cap
SKU: 41153-94500 Weight: 0.060000 Brand: Price: $ 2.96 |
Transom Bolt Cap | 4 | $ 2.96 | ||
| 7 | 55320-95311 Zinc Anode
SKU: 55320-95311 Weight: 0.200000 Brand: Price: $ 8.74 |
Zinc Anode | 2 | $ 8.74 | ||
| 8 | 09116-06094 Bolt (6x15)
SKU: 09116-06094 Weight: 0.060000 Brand: Price: $ 2.28 |
Bolt (6x15) | 2 | $ 2.28 | ||
| 9 | 09100-12093 Transom Bolt (12x100)
SKU: 09100-12093 Weight: 0.220000 Brand: Price: $ 13.75 |
Transom Bolt (12x100) | 4 | $ 13.75 | ||
| 10 | 09140-12028 Nut
SKU: 09140-12028 Weight: 0.060000 Brand: Price: $ 3.60 |
Nut | 4 | $ 3.60 | ||
| 11 | 09160-12044 Washer (12.5x35x3.2)
SKU: 09160-12044 Weight: 0.060000 Brand: Price: $ 3.49 |
Washer (12.5x35x3.2) | 4 | $ 3.49 | ||
| 12 | 09160-12066 Washer (12.5x22x2.5)
SKU: 09160-12066 Weight: 0.060000 Brand: Price: $ 1.80 |
Washer (12.5x22x2.5) | 4 | $ 1.80 | ||
| 13 | 09162-12005 Lock Washer
SKU: 09162-12005 Weight: 0.060000 Brand: Price: $ 2.06 |
Lock Washer | 4 | $ 2.06 | ||
| 14 | 45421-97E00 Tilt Lock Pin (NLA)
SKU: 45421-97E00 Weight: 0.100000 Brand: Price: $ 26.61 |
Tilt Lock Pin (NLA) | 1 | $ 26.61 | ||
| 15 | 09159-10050 Nut
SKU: 09159-10050 Weight: 0.060000 Brand: Price: $ 2.59 |
Nut | 2 | $ 2.59 | ||
| 16 | 09159-22006 Nut
SKU: 09159-22006 Weight: 0.250000 Brand: Price: $ 25.75 |
Nut | 1 | $ 25.75 | ||
| 17 | 09160-10082 Washer (10.5x19x2.0)
SKU: 09160-10082 Weight: 0.060000 Brand: Price: $ 1.63 |
Washer (10.5x19x2.0) | 2 | $ 1.63 | ||
| 18 | 45420-87J00 Tilt Lock Pin (NLA)
SKU: 45420-87J00 Weight: 0.100000 Brand: Price: $ 40.62 |
Tilt Lock Pin (NLA) | 1 | $ 40.62 | w/Tiller Handle | |
| 19 | 09383-08005 E Ring
SKU: 09383-08005 Weight: 0.100000 Brand: Price: $ 2.17 |
E Ring | 1 | $ 2.17 | ||
| 20 | 09441-17002 Spring (NLA)
SKU: 09441-17002 Weight: 0.060000 Brand: Price: $ 1.38 |
Spring (NLA) | 1 | $ 1.38 | ||
| 21 | 43241-87J00 Release Lever Mark (NLA)
SKU: 43241-87J00 Weight: 0.100000 Brand: Price: $ 2.06 |
Release Lever Mark (NLA) | 1 | $ 2.06 | w/Tiller Handle |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
