Suzuki DF 40 Parts Listings - 1999
S/N 04001F-971001 to 04001F-97XXXX

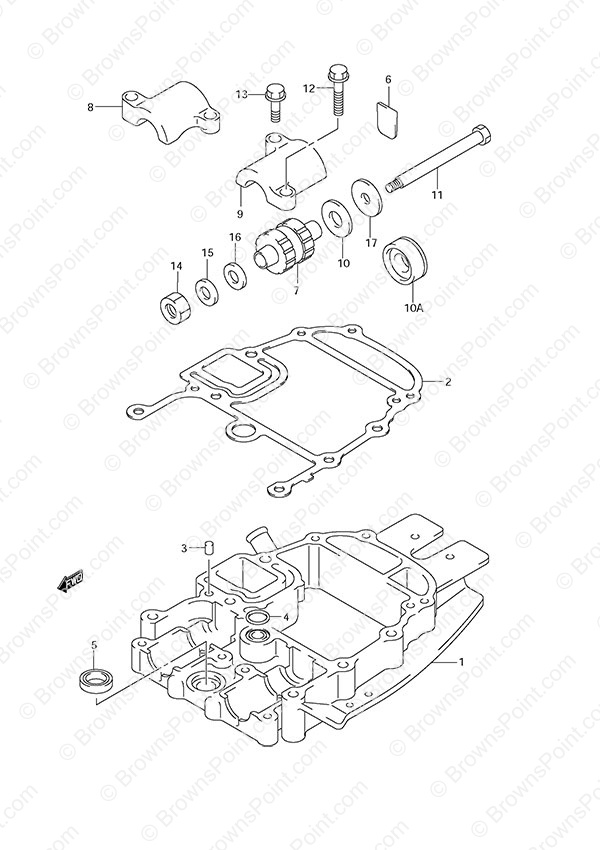

Fig. 45 - Engine Holder
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 51110-87J10-0EP Engine Holder
SKU: 51110-87J10-0EP Weight: 10.000000 Brand: Price: $ 417.57 |
Engine Holder | 1 | $ 417.57 | Requires Ref# 18 | |
| 2 | 51211-87J00 Engine Holder Gasket
SKU: 51211-87J00 Weight: 0.500000 Brand: Price: $ 29.22 |
Engine Holder Gasket | 1 | $ 29.22 | ||
| 3 | 04221-08149 PIN
SKU: 04221-08149 Weight: 0.100000 Brand: Price: $ 1.96 |
PIN | 2 | $ 1.96 | ||
| 4 | 09280-16005 O-Ring
SKU: 09280-16005 Weight: 0.060000 Brand: Price: $ 2.27 |
O-Ring | 1 | $ 2.27 | ||
| 5 | 09282-17009 Oil Seal (17x28x6)
SKU: 09282-17009 Weight: 0.060000 Brand: Price: $ 10.20 |
Oil Seal (17x28x6) | 1 | $ 10.20 | ||
| 6 | 54125-87J00 Upper Thrust Reverse Mount (NLA)
SKU: 54125-87J00 Weight: 0.100000 Brand: Price: $ 3.97 |
Upper Thrust Reverse Mount (NLA) | 2 | $ 3.97 | ||
| 7 | 54130-87J21 Upper Mount
SKU: 54130-87J21 Weight: 1.000000 Brand: Price: $ 61.01 |
Upper Mount | 2 | $ 61.01 | ||
| 8 | 54148-99E01-0EP Stbd Upper Mount Cover
SKU: 54148-99E01-0EP Weight: 0.100000 Brand: Price: $ 32.12 |
Stbd Upper Mount Cover | 1 | $ 32.12 | ||
| 9 | 54149-99E01-0EP Port Upper Mount Cover
SKU: 54149-99E01-0EP Weight: 0.100000 Brand: Price: $ 32.12 |
Port Upper Mount Cover | 1 | $ 32.12 | ||
| 10 | 54165-94400 Lower Damper
SKU: 54165-94400 Weight: 0.100000 Brand: Price: $ 4.84 |
Lower Damper | 4 | $ 4.84 | ||
| 11 | 09100-10190-XC0 Bolt (10x145)
SKU: 09100-10190-XC0 Weight: 0.220000 Brand: Price: $ 19.52 |
Bolt (10x145) | 2 | $ 19.52 | ||
| 12 | 09116-08128 Bolt (8x40)
SKU: 09116-08128 Weight: 0.125000 Brand: Price: $ 4.11 |
Bolt (8x40) | 2 | $ 4.11 | ||
| 13 | 09116-08122 Bolt (8x30)
SKU: 09116-08122 Weight: 0.060000 Brand: Price: $ 4.66 |
Bolt (8x30) | 2 | $ 4.66 | ||
| 14 | 09159-10050 Nut
SKU: 09159-10050 Weight: 0.060000 Brand: Price: $ 2.59 |
Nut | 2 | $ 2.59 | ||
| 15 | 09160-10081 Washer (10x20x3.0)
SKU: 09160-10081 Weight: 0.060000 Brand: Price: $ 2.52 |
Washer (10x20x3.0) | 2 | $ 2.52 | ||
| 16 | 09160-10082 Washer (10.5x19x2.0)
SKU: 09160-10082 Weight: 0.060000 Brand: Price: $ 1.63 |
Washer (10.5x19x2.0) | 2 | $ 1.63 | ||
| 17 | 09160-10134 Washer (NLA)
SKU: 09160-10134 Weight: 0.100000 Brand: Price: $ 3.07 |
Washer (NLA) | 2 | $ 3.07 | ||
| 18 | 09352-50006-600 Hose (5x9x600)
SKU: 09352-50006-600 Weight: 0.250000 Brand: Price: $ 7.60 |
Hose (5x9x600) | 1 | $ 7.60 | Not Shown |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
