Suzuki DF 40 Parts Listings - 1999
S/N 04001F-971001 to 04001F-97XXXX

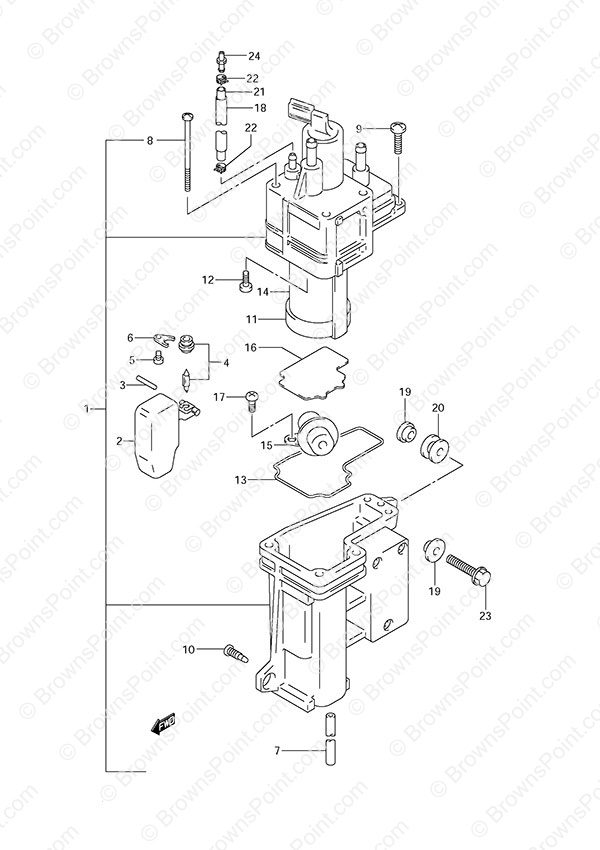

Fig. 11 - Fuel Vapor Separator
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 15600-87J13 Fuel Vapor Separator Assembly
SKU: 15600-87J13 Weight: 4.500000 Brand: Price: $ 699.86 |
Fuel Vapor Separator Assembly | 1 | $ 699.86 | ||
| 2 | 15650-99E00 Float
SKU: 15650-99E00 Weight: 0.060000 Brand: Price: $ 68.42 |
Float | 1 | $ 68.42 | ||
| 3 | 15654-99E00 Float Pin
SKU: 15654-99E00 Weight: 0.060000 Brand: Price: $ 2.50 |
Float Pin | 1 | $ 2.50 | ||
| 4 | 13370-99E00 Needle Valve Assembly
SKU: 13370-99E00 Weight: 0.060000 Brand: Price: $ 48.97 |
Needle Valve Assembly | 1 | $ 48.97 | ||
| 5 | 02112-0408A SCREW
SKU: 02112-0408A Weight: 0.060000 Brand: Price: $ 1.11 |
SCREW | 1 | $ 1.11 | ||
| 6 | 13373-39110 Needle Valve Plate
SKU: 13373-39110 Weight: 0.062500 Brand: Price: $ 7.01 |
Needle Valve Plate | 1 | $ 7.01 | ||
| 7 | 15683-87J00 Drain Hose (L:120)
SKU: 15683-87J00 Weight: 0.125000 Brand: Price: $ 3.37 |
Drain Hose (L:120) | 1 | $ 3.37 | ||
| 8 | 15627-99E00 Screw (L:70)
SKU: 15627-99E00 Weight: 0.100000 Brand: Price: $ 5.30 |
Screw (L:70) | 3 | $ 5.30 | ||
| 9 | 15628-99E00 Screw (L:15)
SKU: 15628-99E00 Weight: 0.060000 Brand: Price: $ 2.42 |
Screw (L:15) | 2 | $ 2.42 | ||
| 10 | 15629-99E10 Drain Screw
SKU: 15629-99E10 Weight: 0.060000 Brand: Price: $ 5.49 |
Drain Screw | 1 | $ 5.49 | ||
| 11 | 15641-99E01 Fuel Pump Filter
SKU: 15641-99E01 Weight: 0.060000 Brand: Price: $ 26.63 |
Fuel Pump Filter | 1 | $ 26.63 | ||
| 12 | 02112-0510A SCREW
SKU: 02112-0510A Weight: 0.060000 Brand: Price: $ 1.44 |
SCREW | 1 | $ 1.44 | ||
| 13 | 15626-99E00 O-Ring
SKU: 15626-99E00 Weight: 0.060000 Brand: Price: $ 12.79 |
O-Ring | 1 | $ 12.79 | ||
| 14 | 15200-87J10 Fuel Pump Assembly
SKU: 15200-87J10 Weight: 0.740000 Brand: Price: $ 438.00 |
Fuel Pump Assembly | 1 | $ 438.00 | ||
| 15 | 15760-87J00 Fuel Pressure Regulator
SKU: 15760-87J00 Weight: 0.160000 Brand: Price: $ 234.08 |
Fuel Pressure Regulator | 1 | $ 234.08 | ||
| 16 | 15642-87J00 Plate
SKU: 15642-87J00 Weight: 0.100000 Brand: Price: $ 8.77 |
Plate | 1 | $ 8.77 | ||
| 17 | 02112-0510A SCREW
SKU: 02112-0510A Weight: 0.060000 Brand: Price: $ 1.44 |
SCREW | 2 | $ 1.44 | ||
| 18 | 18498-87JC1 Protector (L:450)
SKU: 18498-87JC1 Weight: 0.120000 Brand: Price: $ 5.05 |
Protector (L:450) | 1 | $ 5.05 | L:450->300 | |
| 19 | 09169-06067 Washer (6.8x19x1.6)
SKU: 09169-06067 Weight: 0.060000 Brand: Price: $ 3.40 |
Washer (6.8x19x1.6) | 6 | $ 3.40 | ||
| 20 | 09320-09059 Cushion
SKU: 09320-09059 Weight: 0.060000 Brand: Price: $ 3.31 |
Cushion | 3 | $ 3.31 | ||
| 21 | 44420-44AR0 Hose (5x8.2x600)
SKU: 44420-44AR0 Weight: 0.180000 Brand: Price: $ 9.36 |
Hose (5x8.2x600) | 1 | $ 9.36 | L:600->410 | |
| 22 | 09401-08409 Clamp
SKU: 09401-08409 Weight: 0.060000 Brand: Price: $ 2.02 |
Clamp | 2 | $ 2.02 | ||
| 23 | 01550-06257 BOLT
SKU: 01550-06257 Weight: 0.060000 Brand: Price: $ 2.33 |
BOLT | 3 | $ 2.33 | ||
| 24 | 15661-87J01 Evaporation Hose Jet
SKU: 15661-87J01 Weight: 0.100000 Brand: Price: $ 5.88 |
Evaporation Hose Jet | 1 | $ 5.88 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
