Suzuki DF 25 V-Twin Parts Listings - 2009
S/N 02502F-980001 to 02502F-98XXXX

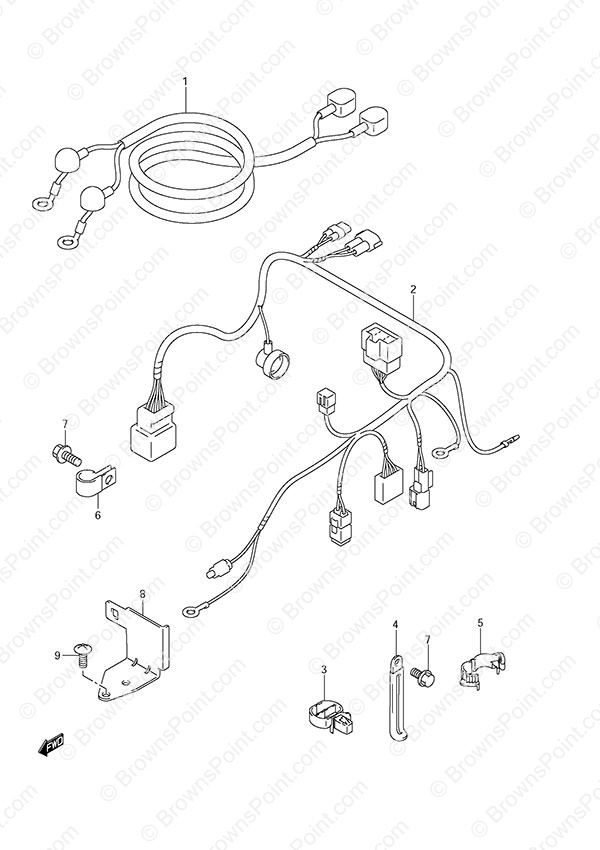

Fig. 23 - Harness
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 33810-95J00 Starter Motor Cable Assembly
SKU: 33810-95J00 Weight: 0.100000 Brand: Price: $ 118.36 |
Starter Motor Cable Assembly | 1 | $ 118.36 | Electric Starter | |
| 2-1 | 36610-95J01 Wiring Harness Assembly
SKU: 36610-95J01 Weight: 5.000000 Brand: Price: $ 183.22 |
Wiring Harness Assembly | 1 | $ 183.22 | Electric Starter | |
| 2-2 | 36610-95J10 Wiring Harness Assembly (NLA)
SKU: 36610-95J10 Weight: 5.000000 Brand: Price: $ 64.96 |
Wiring Harness Assembly (NLA) | 1 | $ 64.96 | Manual Starter | |
| 2-3 | 36610-95J20 Wiring Harness Assembly (NLA)
SKU: 36610-95J20 Weight: 5.000000 Brand: Price: $ 175.38 |
Wiring Harness Assembly (NLA) | 1 | $ 175.38 | Remote Control | |
| 3 | 09403-14315 Clamp (NLA)
SKU: 09403-14315 Weight: 0.100000 Brand: Price: $ 1.57 |
Clamp (NLA) | 2 | $ 1.57 | ||
| 4-1 | 29404-93J11 Clamp (L:65)
SKU: 29404-93J11 Weight: 0.060000 Brand: Price: $ 1.57 |
Clamp (L:65) | 5 | $ 1.57 | Electric Starter | |
| 4-2 | 29404-93J11 Clamp (L:65)
SKU: 29404-93J11 Weight: 0.060000 Brand: Price: $ 1.57 |
Clamp (L:65) | 4 | $ 1.57 | Manual Starter | |
| 5 | 09408-00184 Clamp
SKU: 09408-00184 Weight: 0.125000 Brand: Price: $ 2.95 |
Clamp | 1 | $ 2.95 | ||
| 6 | 09403-13413 CLAMP
SKU: 09403-13413 Weight: 0.000000 Brand: Price: $ 5.28 |
CLAMP | 2 | $ 5.28 | ||
| 7-1 | 01550-06127 BOLT
SKU: 01550-06127 Weight: 0.060000 Brand: Price: $ 2.33 |
BOLT | 5 | $ 2.33 | Electric Starter | |
| 7-2 | 01550-06127 BOLT
SKU: 01550-06127 Weight: 0.060000 Brand: Price: $ 2.33 |
BOLT | 4 | $ 2.33 | Manual Starter | |
| 7-3 | 01550-06127 BOLT
SKU: 01550-06127 Weight: 0.060000 Brand: Price: $ 2.33 |
BOLT | 4 | $ 2.33 | Remote Control | |
| 8 | 36616-95J00 Connector Holder (NLA)
SKU: 36616-95J00 Weight: 0.100000 Brand: Price: $ 5.40 |
Connector Holder (NLA) | 1 | $ 5.40 | Remote Control | |
| 9 | 02142-06167 6 X 16 CROSS SC
SKU: 02142-06167 Weight: 0.060000 Brand: Price: $ 1.38 |
6 X 16 CROSS SC | 2 | $ 1.38 | Remote Control |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
