Suzuki DF 25 V-Twin Parts Listings - 2008
S/N 02502F-880001 to 02502F-88XXXX

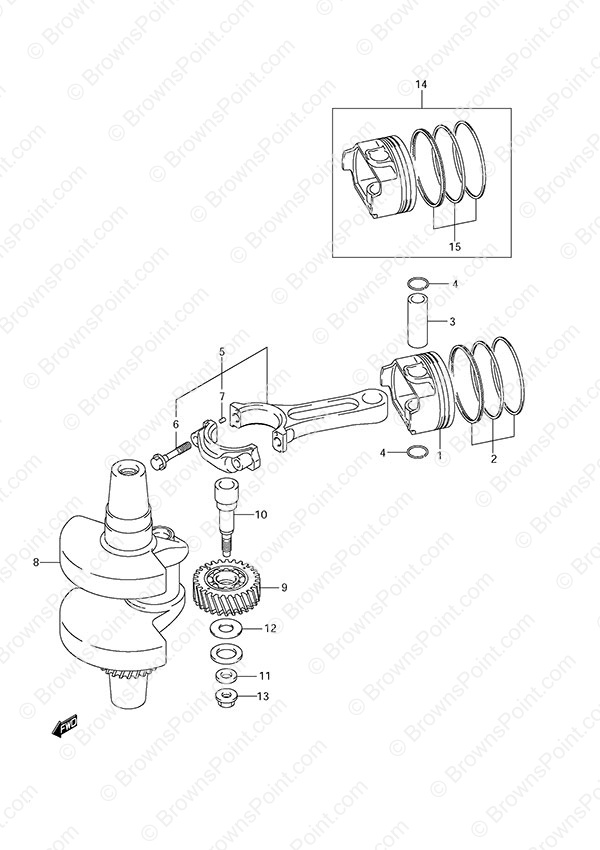

Fig. 3 - Crankshaft
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 12111-95J00-0B0 Piston
SKU: 12111-95J00-0B0 Weight: 0.500000 Brand: Price: $ 53.13 |
Piston | 2 | $ 53.13 | ||
| 2 | 12140-75F30 Piston Ring Set
SKU: 12140-75F30 Weight: 0.100000 Brand: Price: $ 73.71 |
Piston Ring Set | 2 | $ 73.71 | ||
| 3 | 12151-54A50 Piston Pin
SKU: 12151-54A50 Weight: 0.100000 Brand: Price: $ 11.96 |
Piston Pin | 2 | $ 11.96 | ||
| 4 | 09381-17005 Piston Pin Circlip (NLA)
SKU: 09381-17005 Weight: 0.100000 Brand: Price: $ 1.46 |
Piston Pin Circlip (NLA) | 4 | $ 1.46 | ||
| 5-1 | 12160-95J01-0A0 Connecting Rod Assembly
SKU: 12160-95J01-0A0 Weight: 1.000000 Brand: Price: $ 141.00 |
Connecting Rod Assembly | 2 | $ 141.00 | Red | |
| 5-2 | 12160-95J01-0B0 Connecting Rod Assembly
SKU: 12160-95J01-0B0 Weight: 0.440000 Brand: Price: $ 141.00 |
Connecting Rod Assembly | 1 | $ 141.00 | No Paint | |
| 6 | 12163-32C00 Connecting Rod Bolt (NLA)
SKU: 12163-32C00 Weight: 0.100000 Brand: Price: $ 3.79 |
Connecting Rod Bolt (NLA) | 4 | $ 3.79 | ||
| 7 | 04221-03059 PIN
SKU: 04221-03059 Weight: 0.100000 Brand: Price: $ 1.49 |
PIN | 4 | $ 1.49 | ||
| 8 | 12220-95J00-0B0 Crankshaft
SKU: 12220-95J00-0B0 Weight: 12.000000 Brand: Price: $ 864.15 |
Crankshaft | 1 | $ 864.15 | ||
| 9 | 12730-95J10 Idle Gear Assembly
SKU: 12730-95J10 Weight: 0.100000 Brand: Price: $ 266.80 |
Idle Gear Assembly | 1 | $ 266.80 | ||
| 10 | 12735-95J10 Idle Gear Shaft
SKU: 12735-95J10 Weight: 0.100000 Brand: Price: $ 38.79 |
Idle Gear Shaft | 1 | $ 38.79 | ||
| 11 | 09160-08122 Washer (8.5x18x3.2)
SKU: 09160-08122 Weight: 0.100000 Brand: Price: $ 2.39 |
Washer (8.5x18x3.2) | 1 | $ 2.39 | ||
| 12 | 09160-12067 Washer (12.5x23x1.0)
SKU: 09160-12067 Weight: 0.060000 Brand: Price: $ 3.13 |
Washer (12.5x23x1.0) | 1 | $ 3.13 | ||
| 13 | 08316-1008A Nut
SKU: 08316-1008A Weight: 0.060000 Brand: Price: $ 2.45 |
Nut | 1 | $ 2.45 | ||
| 14 | 12100-95J00-050 Piston & Ring Set (0.50) (NLA)
SKU: 12100-95J00-050 Weight: 0.100000 Brand: Price: $ 94.22 |
Piston & Ring Set (0.50) (NLA) | 2 | $ 94.22 | Optional | |
| 15 | 12140-75F30-050 Piston Ring Set (0.50) (NLA)
SKU: 12140-75F30-050 Weight: 0.100000 Brand: Price: $ 52.25 |
Piston Ring Set (0.50) (NLA) | 2 | $ 52.25 | Optional |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
