Suzuki DF 25 V-Twin Parts Listings - 2006
S/N 02502F-680001 to 02502F-68XXXX

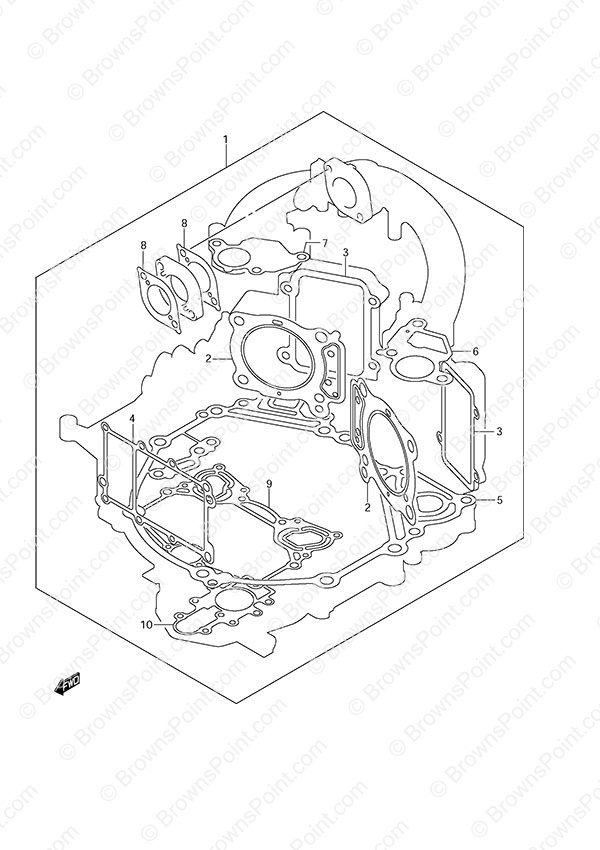

Fig. 46 - Opt: Gasket Set
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 11410-95811 Engine Gasket Set
SKU: 11410-95811 Weight: 0.100000 Brand: Price: $ 154.87 |
Engine Gasket Set | 1 | $ 154.87 | ||
| 2 | 11141-95J00 Cylinder Head Gasket
SKU: 11141-95J00 Weight: 0.080000 Brand: Price: $ 16.64 |
Cylinder Head Gasket | 2 | $ 16.64 | ||
| 3 | 11189-95J00 Cylinder Head Cover Gasket
SKU: 11189-95J00 Weight: 0.060000 Brand: Price: $ 11.45 |
Cylinder Head Cover Gasket | 2 | $ 11.45 | ||
| 4 | 11219-95J01 Cylinder Block Cover Gasket
SKU: 11219-95J01 Weight: 0.100000 Brand: Price: $ 9.78 |
Cylinder Block Cover Gasket | 1 | $ 9.78 | ||
| 5 | 11351-95J01 Crankcase Gasket
SKU: 11351-95J01 Weight: 0.220000 Brand: Price: $ 34.60 |
Crankcase Gasket | 1 | $ 34.60 | ||
| 6 | 13119-95J00 Port Intake Manifold Gasket
SKU: 13119-95J00 Weight: 0.060000 Brand: Price: $ 5.14 |
Port Intake Manifold Gasket | 1 | $ 5.14 | ||
| 7 | 13122-95J00 Stbd Intake Manifold Gasket
SKU: 13122-95J00 Weight: 0.060000 Brand: Price: $ 6.78 |
Stbd Intake Manifold Gasket | 1 | $ 6.78 | ||
| 8 | 13125-95J00 Carburetor Gasket
SKU: 13125-95J00 Weight: 0.060000 Brand: Price: $ 4.81 |
Carburetor Gasket | 2 | $ 4.81 | ||
| 9 | 11489-95J01 Oil Pan Gasket
SKU: 11489-95J01 Weight: 0.180000 Brand: Price: $ 33.69 |
Oil Pan Gasket | 1 | $ 33.69 | ||
| 10 | 56132-95J00 Drive Shaft Housing Gasket
SKU: 56132-95J00 Weight: 0.060000 Brand: Price: $ 11.27 |
Drive Shaft Housing Gasket | 1 | $ 11.27 | ||
| 11 | 99011-95J00-03A Owners Manual DF 25 V-Twin - 2006
SKU: 99011-95J00-03A Weight: 0.250000 Brand: Price: $ 12.41 |
Owners Manual DF 25 V-Twin - 2006 | 1 | $ 12.41 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
