Suzuki DF 25 V-Twin Parts Listings - 2006
S/N 02502F-680001 to 02502F-68XXXX

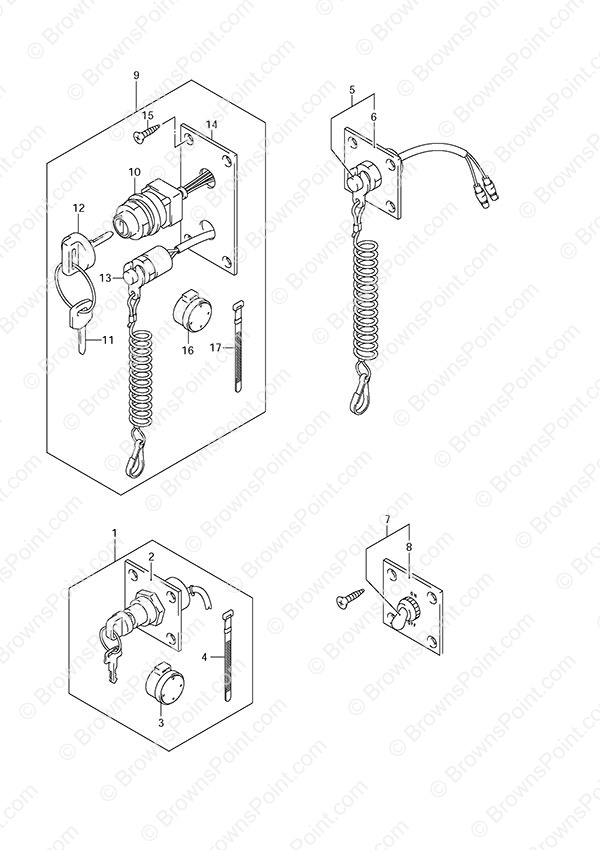

Fig. 36 - Opt: Switch
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 37100-96J01 Ignition Switch Panel Assembly
SKU: 37100-96J01 Weight: 0.660000 Brand: Price: $ 134.47 |
Ignition Switch Panel Assembly | 1 | $ 134.47 | ||
| 2 | 37139-99E00 Ignition Switch Panel
SKU: 37139-99E00 Weight: 0.125000 Brand: Price: $ 45.19 |
Ignition Switch Panel | 1 | $ 45.19 | ||
| 3 | 38500-93J90 Warning Buzzer
SKU: 38500-93J90 Weight: 0.060000 Brand: Price: $ 39.28 |
Warning Buzzer | 1 | $ 39.28 | ||
| 4 | 09407-14403 Clamp (L:125)
SKU: 09407-14403 Weight: 0.060000 Brand: Price: $ 2.27 |
Clamp (L:125) | 1 | $ 2.27 | ||
| 5 | 37803-93J06 Emergency Stop Switch Panel Assembly
SKU: 37803-93J06 Weight: 0.500000 Brand: Price: $ 63.77 |
Emergency Stop Switch Panel Assembly | 1 | $ 63.77 | ||
| 6 | 37825-99E00 Emergency Switch Panel
SKU: 37825-99E00 Weight: 0.125000 Brand: Price: $ 46.73 |
Emergency Switch Panel | 1 | $ 46.73 | ||
| 7 | 37210-93J00 Lighting Switch Set (NLA)
SKU: 37210-93J00 Weight: 1.000000 Brand: Price: $ 82.61 |
Lighting Switch Set (NLA) | 1 | $ 82.61 | ||
| 8 | 37212-93J00 Lighting Switch Panel (NLA)
SKU: 37212-93J00 Weight: 1.000000 Brand: Price: $ 34.39 |
Lighting Switch Panel (NLA) | 1 | $ 34.39 | ||
| 10 | 37110-93J02 Ignition Switch Assembly
SKU: 37110-93J02 Weight: 0.500000 Brand: Price: $ 96.87 |
Ignition Switch Assembly | 1 | $ 96.87 | ||
| 11-1 | 37141-99E00 (931) Ignition Key
SKU: 37141-99E00 Weight: 0.060000 Brand: Price: $ 15.38 |
(931) Ignition Key | 2 | $ 15.38 | ||
| 11-2 | 37141-99E10 (932) Ignition Key
SKU: 37141-99E10 Weight: 0.060000 Brand: Price: $ 15.38 |
(932) Ignition Key | 2 | $ 15.38 | ||
| 11-3 | 37141-99E20 (933) Ignition Key
SKU: 37141-99E20 Weight: 0.060000 Brand: Price: $ 15.38 |
(933) Ignition Key | 2 | $ 15.38 | ||
| 11-4 | 37141-99E30 (934) Ignition Key
SKU: 37141-99E30 Weight: 0.060000 Brand: Price: $ 15.38 |
(934) Ignition Key | 2 | $ 15.38 | ||
| 11-5 | 37141-99E40 (935) Ignition Key
SKU: 37141-99E40 Weight: 0.060000 Brand: Price: $ 15.38 |
(935) Ignition Key | 2 | $ 15.38 | ||
| 11-6 | 37141-99E50 (936) Ignition Key
SKU: 37141-99E50 Weight: 0.060000 Brand: Price: $ 15.38 |
(936) Ignition Key | 2 | $ 15.38 | ||
| 11-7 | 37141-99E60 (937) Ignition Key
SKU: 37141-99E60 Weight: 0.060000 Brand: Price: $ 15.38 |
(937) Ignition Key | 2 | $ 15.38 | ||
| 11-8 | 37141-99E70 (938) Ignition Key
SKU: 37141-99E70 Weight: 0.060000 Brand: Price: $ 15.38 |
(938) Ignition Key | 2 | $ 15.38 | ||
| 11-9 | 37141-99E80 (939) Ignition Key
SKU: 37141-99E80 Weight: 0.060000 Brand: Price: $ 15.38 |
(939) Ignition Key | 2 | $ 15.38 | ||
| 11-10 | 37141-99E90 (940) Ignition Key
SKU: 37141-99E90 Weight: 0.060000 Brand: Price: $ 15.38 |
(940) Ignition Key | 2 | $ 15.38 | ||
| 11-11 | 37141-99EA0 (941) Ignition Key
SKU: 37141-99EA0 Weight: 0.060000 Brand: Price: $ 15.38 |
(941) Ignition Key | 2 | $ 15.38 | ||
| 11-12 | 37141-99EB0 (942) Ignition Key
SKU: 37141-99EB0 Weight: 0.060000 Brand: Price: $ 15.38 |
(942) Ignition Key | 2 | $ 15.38 | ||
| 12 | 37143-99E01 Key Cap
SKU: 37143-99E01 Weight: 0.060000 Brand: Price: $ 6.09 |
Key Cap | 1 | $ 6.09 | ||
| 13 | 37820-93J05 Emergency Stop Switch Assembly
SKU: 37820-93J05 Weight: 0.250000 Brand: Price: $ 41.72 |
Emergency Stop Switch Assembly | 1 | $ 41.72 | ||
| 14 | 37139-99E20 Ignition Switch Panel
SKU: 37139-99E20 Weight: 0.125000 Brand: Price: $ 62.69 |
Ignition Switch Panel | 1 | $ 62.69 | ||
| 15 | 03121-0516A SCREW
SKU: 03121-0516A Weight: 0.060000 Brand: Price: $ 1.96 |
SCREW | 4 | $ 1.96 | ||
| 16 | 38500-93J90 Warning Buzzer
SKU: 38500-93J90 Weight: 0.060000 Brand: Price: $ 39.28 |
Warning Buzzer | 1 | $ 39.28 | ||
| 17 | 09407-14403 Clamp (L:125)
SKU: 09407-14403 Weight: 0.060000 Brand: Price: $ 2.27 |
Clamp (L:125) | 1 | $ 2.27 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
