Suzuki DF 25 V-Twin Parts Listings - 2006
S/N 02502F-680001 to 02502F-68XXXX

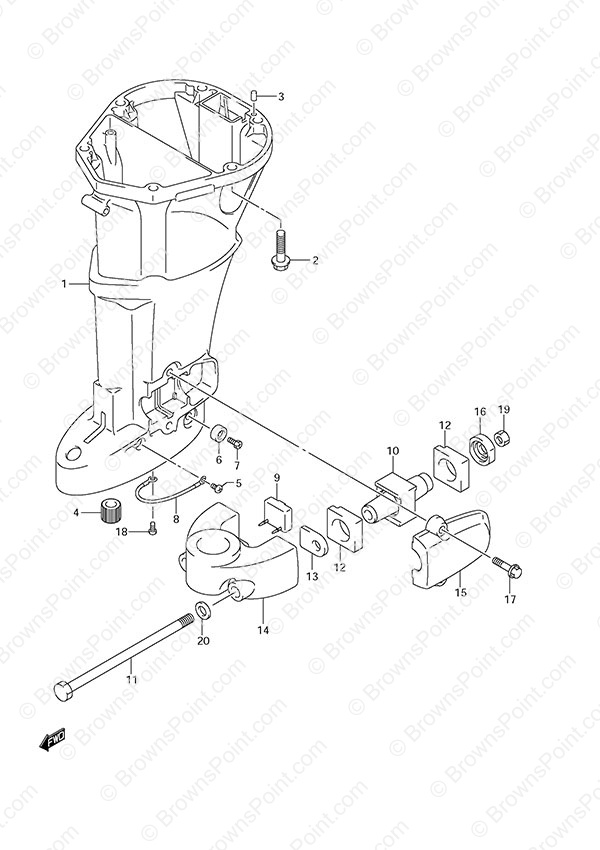

Fig. 26 - Drive Shaft Housing
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1-1 | 52111-95J00-0EP Drive Shaft Housing (S)
SKU: 52111-95J00-0EP Weight: 0.100000 Brand: Price: $ 468.99 |
Drive Shaft Housing (S) | 1 | $ 468.99 | w/Transom (S) | |
| 1-2 | 52111-95J10-0EP Drive Shaft Housing (L) (NLA)
SKU: 52111-95J10-0EP Weight: 0.100000 Brand: Price: $ 392.64 |
Drive Shaft Housing (L) (NLA) | 1 | $ 392.64 | w/Transom (L) | |
| 2 | 09116-10143 Bolt (10x40) (NLA)
SKU: 09116-10143 Weight: 0.100000 Brand: Price: $ 5.98 |
Bolt (10x40) (NLA) | 6 | $ 5.98 | ||
| 3 | 09202-06023 Knock Pin (6x10)
SKU: 09202-06023 Weight: 0.060000 Brand: Price: $ 3.00 |
Knock Pin (6x10) | 2 | $ 3.00 | ||
| 4 | 57130-96300 Drive Shaft Bushing (NLA)
SKU: 57130-96300 Weight: 0.100000 Brand: Price: $ 7.39 |
Drive Shaft Bushing (NLA) | 1 | $ 7.39 | w/Transom (L) | |
| 5 | 09125-06063 Screw (6x10)
SKU: 09125-06063 Weight: 0.060000 Brand: Price: $ 1.96 |
Screw (6x10) | 1 | $ 1.96 | ||
| 6 | 55321-87J01 Aluminum Anode
SKU: 55321-87J01 Weight: 0.125000 Brand: Price: $ 7.36 |
Aluminum Anode | 1 | $ 7.36 | ||
| 7 | 09103-06281 Bolt (6x14)
SKU: 09103-06281 Weight: 0.060000 Brand: Price: $ 2.99 |
Bolt (6x14) | 1 | $ 2.99 | ||
| 8 | 36894-87D00 Wire Lead (L:195)
SKU: 36894-87D00 Weight: 0.060000 Brand: Price: $ 12.66 |
Wire Lead (L:195) | 1 | $ 12.66 | Mount Bracket to Housing | |
| 9 | 54151-95J00 Lower Thrust Mount (NLA)
SKU: 54151-95J00 Weight: 0.100000 Brand: Price: $ 4.75 |
Lower Thrust Mount (NLA) | 1 | $ 4.75 | ||
| 10 | 54160-95J00 Lower Mount (NLA)
SKU: 54160-95J00 Weight: 0.100000 Brand: Price: $ 31.56 |
Lower Mount (NLA) | 2 | $ 31.56 | ||
| 11 | 54166-95J02 Mount Bolt
SKU: 54166-95J02 Weight: 0.250000 Brand: Price: $ 35.12 |
Mount Bolt | 2 | $ 35.12 | ||
| 12 | 54167-96J00 Lower Side Mount
SKU: 54167-96J00 Weight: 1.000000 Brand: Price: $ 14.06 |
Lower Side Mount | 4 | $ 14.06 | ||
| 13 | 54170-95J00 Lower Side Cushion (NLA)
SKU: 54170-95J00 Weight: 0.100000 Brand: Price: $ 8.41 |
Lower Side Cushion (NLA) | 2 | $ 8.41 | ||
| 14 | 54211-95J00-0EP Lower Mount Bracket (NLA)
SKU: 54211-95J00-0EP Weight: 0.100000 Brand: Price: $ 107.17 |
Lower Mount Bracket (NLA) | 1 | $ 107.17 | ||
| 15 | 54221-95J00-0EP Lower Mount Cover (NLA)
SKU: 54221-95J00-0EP Weight: 1.000000 Brand: Price: $ 49.30 |
Lower Mount Cover (NLA) | 2 | $ 49.30 | ||
| 16 | 54240-95J00 Lower Thrust Reverse Mount (NLA)
SKU: 54240-95J00 Weight: 0.100000 Brand: Price: $ 10.19 |
Lower Thrust Reverse Mount (NLA) | 2 | $ 10.19 | ||
| 17 | 29116-93J10 Bolt (8x35)
SKU: 29116-93J10 Weight: 0.060000 Brand: Price: $ 2.90 |
Bolt (8x35) | 4 | $ 2.90 | ||
| 18 | 09125-06063 Screw (6x10)
SKU: 09125-06063 Weight: 0.060000 Brand: Price: $ 1.96 |
Screw (6x10) | 1 | $ 1.96 | ||
| 19 | 09159-12014 Nut (12x17)
SKU: 09159-12014 Weight: 0.060000 Brand: Price: $ 5.04 |
Nut (12x17) | 2 | $ 5.04 | ||
| 20 | 09160-12110 Washer (12.5x22x3.0)
SKU: 09160-12110 Weight: 0.060000 Brand: Price: $ 3.79 |
Washer (12.5x22x3.0) | 2 | $ 3.79 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
