Suzuki DF 25 V-Twin Parts Listings - 2006
S/N 02502F-680001 to 02502F-68XXXX

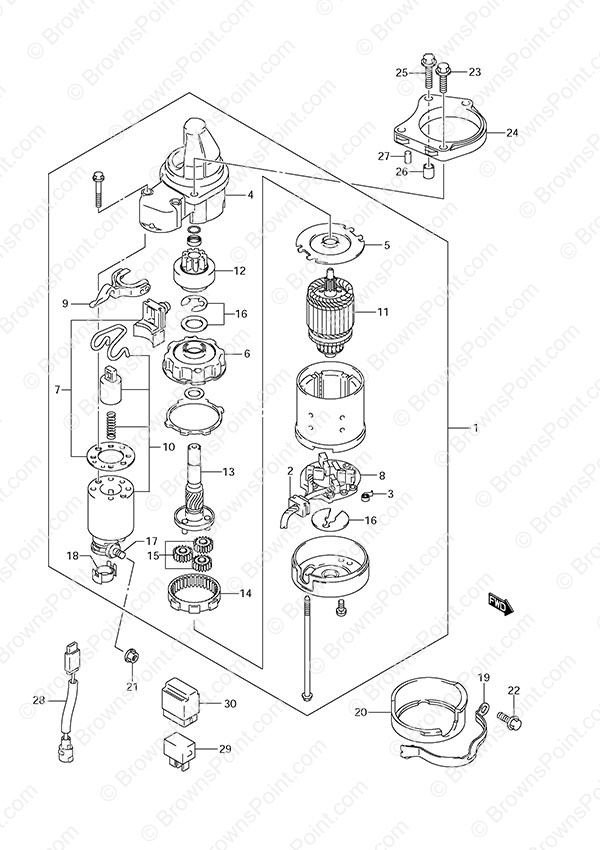

Fig. 19 - Starting Motor
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 31100-95J01 Starter Motor Assembly
SKU: 31100-95J01 Weight: 0.100000 Brand: Price: $ 838.32 |
Starter Motor Assembly | 1 | $ 838.32 | ||
| 2 | 31131-94J00 Plus Brush Set
SKU: 31131-94J00 Weight: 0.100000 Brand: Price: $ 41.56 |
Plus Brush Set | 1 | $ 41.56 | ||
| 3 | 31135-90J00 Spring
SKU: 31135-90J00 Weight: 0.060000 Brand: Price: $ 8.46 |
Spring | 4 | $ 8.46 | ||
| 4 | 31151-94J01 Gear Case
SKU: 31151-94J01 Weight: 1.000000 Brand: Price: $ 172.32 |
Gear Case | 1 | $ 172.32 | ||
| 5 | 31152-90J00 Center Plate (NLA)
SKU: 31152-90J00 Weight: 0.100000 Brand: Price: $ 16.98 |
Center Plate (NLA) | 1 | $ 16.98 | ||
| 6 | 31153-90J00 Planet Gear Bracket (NLA)
SKU: 31153-90J00 Weight: 0.100000 Brand: Price: $ 29.89 |
Planet Gear Bracket (NLA) | 1 | $ 29.89 | ||
| 7 | 31171-96J00 Dust Cover Kit
SKU: 31171-96J00 Weight: 0.100000 Brand: Price: $ 18.24 |
Dust Cover Kit | 1 | $ 18.24 | ||
| 8 | 31173-94J01 Brush Holder
SKU: 31173-94J01 Weight: 0.500000 Brand: Price: $ 123.57 |
Brush Holder | 1 | $ 123.57 | ||
| 9 | 31191-96J00 Shift Lever (NLA)
SKU: 31191-96J00 Weight: 0.100000 Brand: Price: $ 15.49 |
Shift Lever (NLA) | 1 | $ 15.49 | ||
| 10 | 31220-94J00 Magnet Switch
SKU: 31220-94J00 Weight: 0.500000 Brand: Price: $ 254.81 |
Magnet Switch | 1 | $ 254.81 | ||
| 11 | 31310-90J00 Armature
SKU: 31310-90J00 Weight: 5.000000 Brand: Price: $ 574.14 |
Armature | 1 | $ 574.14 | ||
| 12 | 31320-94J00 Pinion Assembly (NLA)
SKU: 31320-94J00 Weight: 0.600000 Brand: Price: $ 200.83 |
Pinion Assembly (NLA) | 1 | $ 200.83 | ||
| 13 | 31341-94J00 Pinion Shaft (NLA)
SKU: 31341-94J00 Weight: 0.400000 Brand: Price: $ 101.44 |
Pinion Shaft (NLA) | 1 | $ 101.44 | ||
| 14 | 31343-90J00 Internal Gear (NLA)
SKU: 31343-90J00 Weight: 0.100000 Brand: Price: $ 63.52 |
Internal Gear (NLA) | 1 | $ 63.52 | ||
| 15 | 31344-90J00 Planetary Gear (NLA)
SKU: 31344-90J00 Weight: 0.100000 Brand: Price: $ 27.77 |
Planetary Gear (NLA) | 3 | $ 27.77 | ||
| 16 | 31360-93J01 Washer Set
SKU: 31360-93J01 Weight: 0.100000 Brand: Price: $ 13.71 |
Washer Set | 1 | $ 13.71 | ||
| 17 | 31913-93J00 Terminal
SKU: 31913-93J00 Weight: 0.100000 Brand: Price: $ 20.06 |
Terminal | 1 | $ 20.06 | ||
| 18 | 31914-93J00 Terminal Cap
SKU: 31914-93J00 Weight: 0.100000 Brand: Price: $ 4.72 |
Terminal Cap | 1 | $ 4.72 | ||
| 19 | 31912-95J00 Starting Motor Band (NLA)
SKU: 31912-95J00 Weight: 0.100000 Brand: Price: $ 6.42 |
Starting Motor Band (NLA) | 1 | $ 6.42 | ||
| 20 | 31918-95J00 Starter Damper (NLA)
SKU: 31918-95J00 Weight: 0.100000 Brand: Price: $ 7.19 |
Starter Damper (NLA) | 1 | $ 7.19 | ||
| 21 | 08316-10087 Nut
SKU: 08316-10087 Weight: 0.060000 Brand: Price: $ 2.27 |
Nut | 1 | $ 2.27 | ||
| 22 | 01550-08207 BOLT
SKU: 01550-08207 Weight: 0.060000 Brand: Price: $ 2.74 |
BOLT | 2 | $ 2.74 | ||
| 23 | 01550-08257 BOLT
SKU: 01550-08257 Weight: 0.060000 Brand: Price: $ 2.82 |
BOLT | 2 | $ 2.82 | ||
| 24 | 31911-95J00 Starting Motor Bracket (NLA)
SKU: 31911-95J00 Weight: 0.100000 Brand: Price: $ 35.35 |
Starting Motor Bracket (NLA) | 1 | $ 35.35 | ||
| 25 | 01550-08307 BOLT
SKU: 01550-08307 Weight: 0.060000 Brand: Price: $ 3.59 |
BOLT | 2 | $ 3.59 | ||
| 26 | 04211-11129 11 X 12 DOWEL P
SKU: 04211-11129 Weight: 0.060000 Brand: Price: $ 1.78 |
11 X 12 DOWEL P | 1 | $ 1.78 | ||
| 27 | 04221-06129 PIN 6X12
SKU: 04221-06129 Weight: 0.060000 Brand: Price: $ 1.49 |
PIN 6X12 | 1 | $ 1.49 | ||
| 28 | 36645-94J00 Wire Lead (NLA)
SKU: 36645-94J00 Weight: 0.500000 Brand: Price: $ 10.03 |
Wire Lead (NLA) | 1 | $ 10.03 | ||
| 29 | 38860-76F01 Relay
SKU: 38860-76F01 Weight: 0.060000 Brand: Price: $ 36.31 |
Relay | 1 | $ 36.31 | ||
| 30 | 38915-90J00 Relay Holder
SKU: 38915-90J00 Weight: 0.060000 Brand: Price: $ 4.39 |
Relay Holder | 1 | $ 4.39 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
