Suzuki DF 25 V-Twin Parts Listings - 2006
S/N 02502F-680001 to 02502F-68XXXX

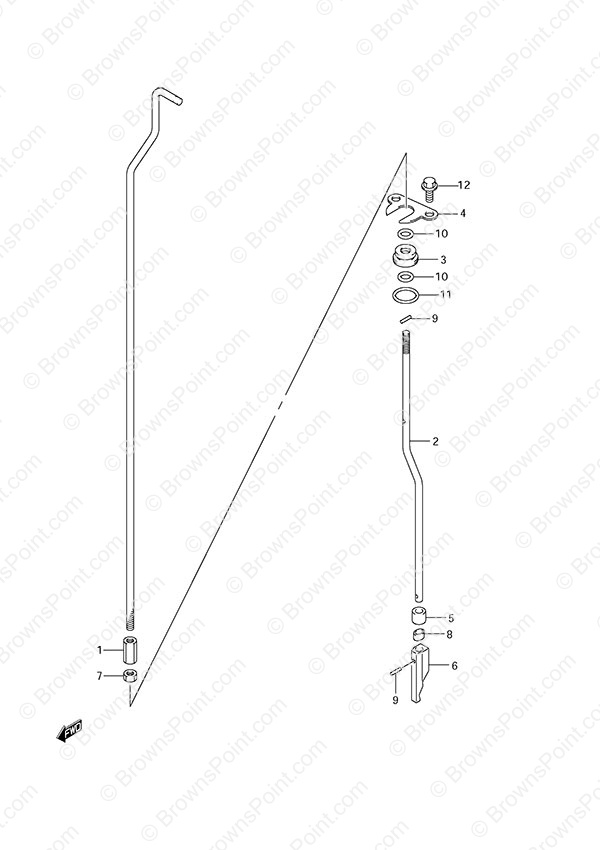

Fig. 17 - Clutch Rod
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 23311-95J00 Clutch Rod Connector
SKU: 23311-95J00 Weight: 0.060000 Brand: Price: $ 7.09 |
Clutch Rod Connector | 1 | $ 7.09 | ||
| 2 | 25111-95J20 Shift Rod
SKU: 25111-95J20 Weight: 0.500000 Brand: Price: $ 37.03 |
Shift Rod | 1 | $ 37.03 | ||
| 3 | 25211-95J10 Shift Rod Guide
SKU: 25211-95J10 Weight: 0.100000 Brand: Price: $ 14.10 |
Shift Rod Guide | 1 | $ 14.10 | ||
| 4 | 25215-95J01 Shift Rod Guide Stopper (NLA)
SKU: 25215-95J01 Weight: 0.100000 Brand: Price: $ 2.64 |
Shift Rod Guide Stopper (NLA) | 1 | $ 2.64 | ||
| 5 | 25232-96302 Gear Case Magnet
SKU: 25232-96302 Weight: 0.060000 Brand: Price: $ 5.83 |
Gear Case Magnet | 1 | $ 5.83 | ||
| 6 | 25311-95J00 Shift Cam
SKU: 25311-95J00 Weight: 0.080000 Brand: Price: $ 25.25 |
Shift Cam | 1 | $ 25.25 | ||
| 7 | 29141-93J00 Nut (6mm)
SKU: 29141-93J00 Weight: 0.060000 Brand: Price: $ 1.80 |
Nut (6mm) | 1 | $ 1.80 | ||
| 8 | 25231-96301 Magnet Spacer (NLA)
SKU: 25231-96301 Weight: 0.100000 Brand: Price: $ 1.19 |
Magnet Spacer (NLA) | 1 | $ 1.19 | ||
| 9 | 09205-02004 Spring Pin (2.5x12)
SKU: 09205-02004 Weight: 0.060000 Brand: Price: $ 0.92 |
Spring Pin (2.5x12) | 2 | $ 0.92 | ||
| 10 | 09280-08005 O-Ring
SKU: 09280-08005 Weight: 0.060000 Brand: Price: $ 1.78 |
O-Ring | 2 | $ 1.78 | ||
| 11 | 09280-15007 O-Ring
SKU: 09280-15007 Weight: 0.060000 Brand: Price: $ 1.73 |
O-Ring | 1 | $ 1.73 | ||
| 12 | 29116-93J00 Bolt (6x20)
SKU: 29116-93J00 Weight: 0.060000 Brand: Price: $ 2.55 |
Bolt (6x20) | 2 | $ 2.55 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
