Suzuki DF 25 V-Twin Parts Listings - 2006
S/N 02502F-680001 to 02502F-68XXXX

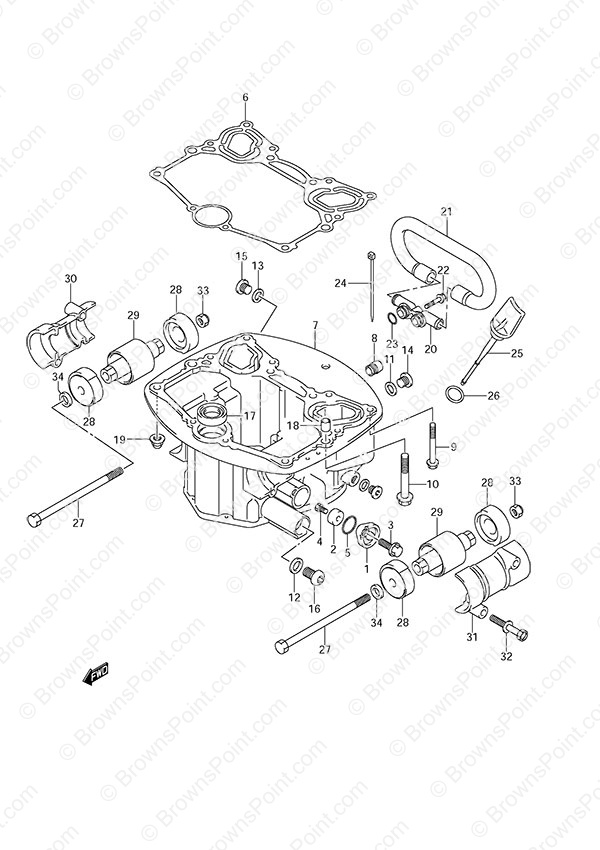

Fig. 14 - Oil Pan
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 11261-93J00 Protection Anode Cover
SKU: 11261-93J00 Weight: 0.150000 Brand: Price: $ 16.29 |
Protection Anode Cover | 1 | $ 16.29 | ||
| 2-1 | 55321-87J01 Aluminum Anode
SKU: 55321-87J01 Weight: 0.125000 Brand: Price: $ 7.36 |
Aluminum Anode | 1 | $ 7.36 | ||
| 2-2 | 55321-87J11 Magnesium Anode
SKU: 55321-87J11 Weight: 0.125000 Brand: Price: $ 13.01 |
Magnesium Anode | 1 | $ 13.01 | Opt: Fresh Water Use Only | |
| 3 | 29103-93J30 Bolt (8x25)
SKU: 29103-93J30 Weight: 0.060000 Brand: Price: $ 3.87 |
Bolt (8x25) | 1 | $ 3.87 | ||
| 4 | 09103-06281 Bolt (6x14)
SKU: 09103-06281 Weight: 0.060000 Brand: Price: $ 2.99 |
Bolt (6x14) | 1 | $ 2.99 | ||
| 5 | 09280-22019 O-Ring
SKU: 09280-22019 Weight: 0.060000 Brand: Price: $ 2.38 |
O-Ring | 1 | $ 2.38 | ||
| 6 | 11489-95J01 Oil Pan Gasket
SKU: 11489-95J01 Weight: 0.180000 Brand: Price: $ 33.69 |
Oil Pan Gasket | 1 | $ 33.69 | ||
| 7 | 11501-95J02-0EP Oil Pan (NLA)
SKU: 11501-95J02-0EP Weight: 20.000000 Brand: Price: $ 502.12 |
Oil Pan (NLA) | 1 | $ 502.12 | ||
| 8 | 43112-94L01 Exhaust Pipe
SKU: 43112-94L01 Weight: 0.060000 Brand: Price: $ 6.24 |
Exhaust Pipe | 1 | $ 6.24 | ||
| 9 | 09116-08126 Bolt (8x65)
SKU: 09116-08126 Weight: 0.100000 Brand: Price: $ 4.34 |
Bolt (8x65) | 6 | $ 4.34 | ||
| 10 | 09116-10137 Bolt (10x70)
SKU: 09116-10137 Weight: 0.120000 Brand: Price: $ 8.02 |
Bolt (10x70) | 6 | $ 8.02 | ||
| 11 | 09168-12011 Water Plug Gasket
SKU: 09168-12011 Weight: 0.100000 Brand: Price: $ 1.68 |
Water Plug Gasket | 2 | $ 1.68 | ||
| 12 | 09168-12012 Oil Drain Plug Gasket
SKU: 09168-12012 Weight: 0.060000 Brand: Price: $ 1.85 |
Oil Drain Plug Gasket | 1 | $ 1.85 | ||
| 13 | 09168-12017 Gasket (12x17x1)
SKU: 09168-12017 Weight: 0.060000 Brand: Price: $ 1.97 |
Gasket (12x17x1) | 2 | $ 1.97 | ||
| 14 | 09248-12007 Oil Drain Plug
SKU: 09248-12007 Weight: 0.060000 Brand: Price: $ 6.47 |
Oil Drain Plug | 2 | $ 6.47 | ||
| 15 | 09248-12007 Oil Drain Plug
SKU: 09248-12007 Weight: 0.060000 Brand: Price: $ 6.47 |
Oil Drain Plug | 2 | $ 6.47 | ||
| 16 | 09248-12009 Oil Drain Plug
SKU: 09248-12009 Weight: 0.060000 Brand: Price: $ 5.88 |
Oil Drain Plug | 1 | $ 5.88 | ||
| 17 | 09282-15L01 Oil Seal *
SKU: 09282-15L01 Weight: 0.060000 Brand: Price: $ 13.39 |
Oil Seal * | 2 | $ 13.39 | ||
| 18 | 04211-13149 PIN
SKU: 04211-13149 Weight: 0.060000 Brand: Price: $ 2.29 |
PIN | 2 | $ 2.29 | ||
| 19 | 08313-20087 Nut
SKU: 08313-20087 Weight: 0.100000 Brand: Price: $ 2.21 |
Nut | 2 | $ 2.21 | ||
| 20 | 11540-95J00 Exhaust Pipe
SKU: 11540-95J00 Weight: 0.080000 Brand: Price: $ 13.08 |
Exhaust Pipe | 1 | $ 13.08 | ||
| 21 | 11543-95J00 Exhaust Hose (NLA)
SKU: 11543-95J00 Weight: 0.100000 Brand: Price: $ 15.27 |
Exhaust Hose (NLA) | 1 | $ 15.27 | ||
| 22 | 09103-06196 Bolt (6x30) (NLA)
SKU: 09103-06196 Weight: 0.100000 Brand: Price: $ 2.46 |
Bolt (6x30) (NLA) | 1 | $ 2.46 | ||
| 23 | 09280-15003 O-Ring
SKU: 09280-15003 Weight: 0.060000 Brand: Price: $ 1.78 |
O-Ring | 2 | $ 1.78 | ||
| 24 | 09407-14407 Clamp (L:140)
SKU: 09407-14407 Weight: 0.060000 Brand: Price: $ 3.09 |
Clamp (L:140) | 2 | $ 3.09 | ||
| 25 | 11381-95J00 Oil Level Gauge (NLA)
SKU: 11381-95J00 Weight: 0.100000 Brand: Price: $ 21.43 |
Oil Level Gauge (NLA) | 1 | $ 21.43 | ||
| 26 | 09280-16013 Oil Level Gauge O-Ring
SKU: 09280-16013 Weight: 0.100000 Brand: Price: $ 5.80 |
Oil Level Gauge O-Ring | 1 | $ 5.80 | ||
| 27 | 54112-95J01 Upper Mount Bolt (NLA)
SKU: 54112-95J01 Weight: 0.100000 Brand: Price: $ 18.65 |
Upper Mount Bolt (NLA) | 2 | $ 18.65 | ||
| 28 | 54120-95J00 Upper Thrust Mount (NLA)
SKU: 54120-95J00 Weight: 0.100000 Brand: Price: $ 11.56 |
Upper Thrust Mount (NLA) | 4 | $ 11.56 | ||
| 29 | 54130-95J00 Upper Mount
SKU: 54130-95J00 Weight: 0.100000 Brand: Price: $ 68.00 |
Upper Mount | 2 | $ 68.00 | ||
| 30 | 54148-95J00-0EP Stbd Upper Mount Cover (NLA)
SKU: 54148-95J00-0EP Weight: 0.100000 Brand: Price: $ 29.72 |
Stbd Upper Mount Cover (NLA) | 1 | $ 29.72 | ||
| 31 | 54149-95J00-0EP Port Upper Mount Cover (NLA)
SKU: 54149-95J00-0EP Weight: 0.100000 Brand: Price: $ 29.72 |
Port Upper Mount Cover (NLA) | 1 | $ 29.72 | ||
| 32 | 09116-08131 Bolt (8x45)
SKU: 09116-08131 Weight: 0.060000 Brand: Price: $ 4.89 |
Bolt (8x45) | 4 | $ 4.89 | ||
| 33 | 09159-10050 Nut
SKU: 09159-10050 Weight: 0.060000 Brand: Price: $ 2.59 |
Nut | 2 | $ 2.59 | ||
| 34 | 09160-10140 Washer (10.5x18x3)
SKU: 09160-10140 Weight: 0.100000 Brand: Price: $ 2.72 |
Washer (10.5x18x3) | 2 | $ 2.72 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
