Suzuki DF 25 V-Twin Parts Listings - 2006
S/N 02502F-680001 to 02502F-68XXXX

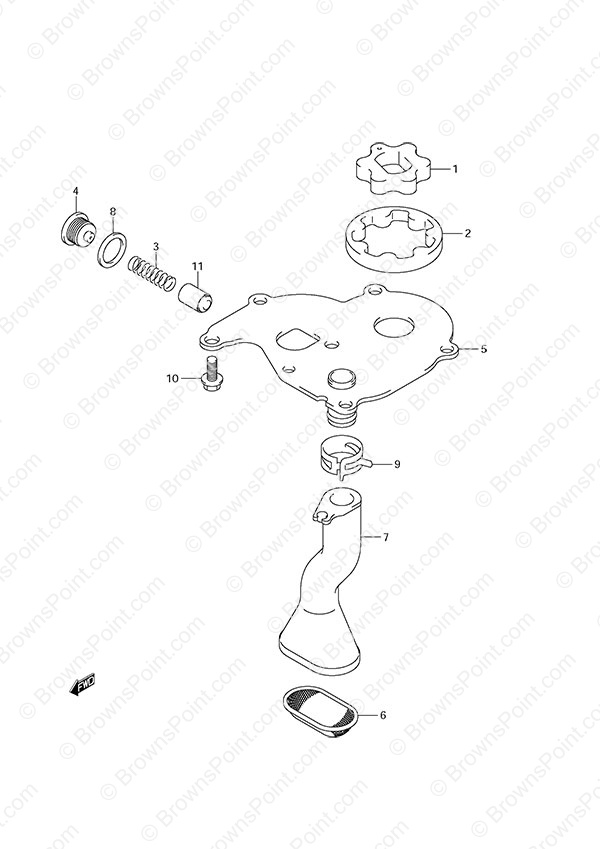

Fig. 13 - Oil Pump
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 16131-95J00 Oil Pump Inner Rotor
SKU: 16131-95J00 Weight: 0.100000 Brand: Price: $ 18.07 |
Oil Pump Inner Rotor | 1 | $ 18.07 | ||
| 2 | 16132-95J00 Oil Pump Outer Rotor
SKU: 16132-95J00 Weight: 0.100000 Brand: Price: $ 26.22 |
Oil Pump Outer Rotor | 1 | $ 26.22 | ||
| 3 | 16152-95J00 Oil Relief Valve Spring
SKU: 16152-95J00 Weight: 0.125000 Brand: Price: $ 2.77 |
Oil Relief Valve Spring | 1 | $ 2.77 | ||
| 4 | 16153-95J00 Relief Valve Spring Retainer (NLA)
SKU: 16153-95J00 Weight: 0.125000 Brand: Price: $ 9.57 |
Relief Valve Spring Retainer (NLA) | 1 | $ 9.57 | ||
| 5 | 16161-95J00 Oil Pump Plate
SKU: 16161-95J00 Weight: 0.100000 Brand: Price: $ 37.20 |
Oil Pump Plate | 1 | $ 37.20 | ||
| 6 | 16520-95J00 Oil Strainer
SKU: 16520-95J00 Weight: 0.100000 Brand: Price: $ 10.88 |
Oil Strainer | 1 | $ 10.88 | ||
| 7 | 16522-95J01 Oil Strainer Pipe
SKU: 16522-95J01 Weight: 0.100000 Brand: Price: $ 13.32 |
Oil Strainer Pipe | 1 | $ 13.32 | ||
| 8 | 09168-16002 Gasket (16x22x2.0)
SKU: 09168-16002 Weight: 0.060000 Brand: Price: $ 1.91 |
Gasket (16x22x2.0) | 1 | $ 1.91 | ||
| 10 | 01550-0616A BOLT
SKU: 01550-0616A Weight: 0.100000 Brand: Price: $ 1.97 |
BOLT | 7 | $ 1.97 | ||
| 11 | 16151-95J00 Oil Pump Relief Valve
SKU: 16151-95J00 Weight: 0.100000 Brand: Price: $ 11.89 |
Oil Pump Relief Valve | 1 | $ 11.89 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
