Suzuki DF 25 V-Twin Parts Listings - 2006
S/N 02502F-680001 to 02502F-68XXXX

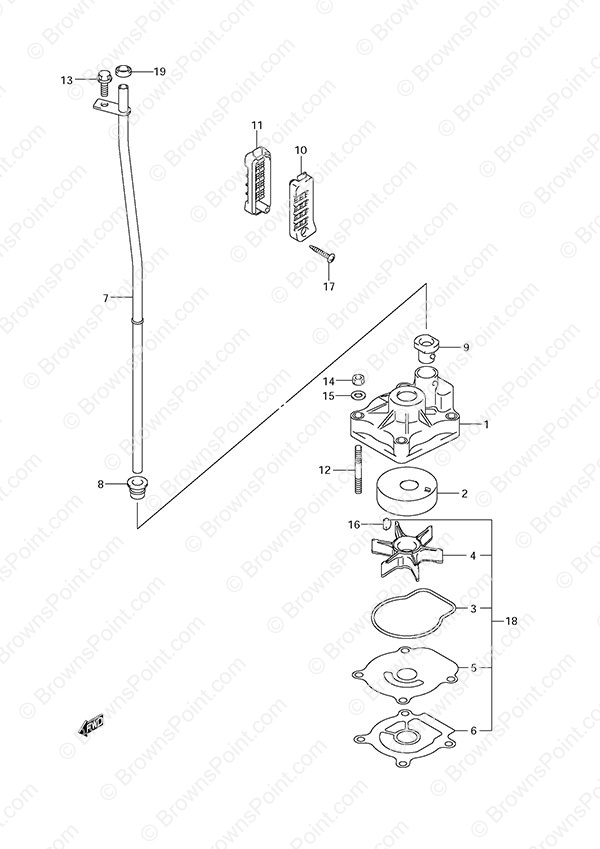

Fig. 9 - Water Pump
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 17410-95J00 Water Pump Case
SKU: 17410-95J00 Weight: 0.220000 Brand: Price: $ 31.27 |
Water Pump Case | 1 | $ 31.27 | ||
| 2 | 17413-95J00 Water Pump Case Sleeve
SKU: 17413-95J00 Weight: 0.080000 Brand: Price: $ 22.79 |
Water Pump Case Sleeve | 1 | $ 22.79 | ||
| 3 | 17416-95J00 Water Pump Case Seal
SKU: 17416-95J00 Weight: 0.060000 Brand: Price: $ 7.01 |
Water Pump Case Seal | 1 | $ 7.01 | ||
| 4 | 17461-96312 Water Pump Impeller
SKU: 17461-96312 Weight: 0.060000 Brand: Price: $ 30.31 |
Water Pump Impeller | 1 | $ 30.31 | ||
| 5 | 17471-95J01 Water Pump Plate
SKU: 17471-95J01 Weight: 0.100000 Brand: Price: $ 8.67 |
Water Pump Plate | 1 | $ 8.67 | ||
| 6 | 17472-96304 Water Pump Plate Gasket
SKU: 17472-96304 Weight: 0.060000 Brand: Price: $ 2.28 |
Water Pump Plate Gasket | 1 | $ 2.28 | ||
| 7-1 | 17560-95J00 Water Tube (S) (NLA)
SKU: 17560-95J00 Weight: 0.100000 Brand: Price: $ 19.57 |
Water Tube (S) (NLA) | 1 | $ 19.57 | w/Transom (S) | |
| 7-2 | 17560-95J10 Water Tube (L) (NLA)
SKU: 17560-95J10 Weight: 0.500000 Brand: Price: $ 24.24 |
Water Tube (L) (NLA) | 1 | $ 24.24 | w/Transom (L) | |
| 8 | 17565-91L00 Water Tube Grommet
SKU: 17565-91L00 Weight: 0.060000 Brand: Price: $ 3.45 |
Water Tube Grommet | 2 | $ 3.45 | ||
| 9 | 17566-96303 Water Tube Grommet
SKU: 17566-96303 Weight: 0.060000 Brand: Price: $ 2.25 |
Water Tube Grommet | 1 | $ 2.25 | ||
| 10 | 17631-95J00 Port Side Water Filter
SKU: 17631-95J00 Weight: 0.100000 Brand: Price: $ 6.66 |
Port Side Water Filter | 1 | $ 6.66 | ||
| 11 | 17632-95J00 Starboard Side Water Filter
SKU: 17632-95J00 Weight: 0.060000 Brand: Price: $ 6.66 |
Starboard Side Water Filter | 1 | $ 6.66 | ||
| 12 | 09108-06146 Stud Bolt (6x52)
SKU: 09108-06146 Weight: 0.060000 Brand: Price: $ 4.25 |
Stud Bolt (6x52) | 4 | $ 4.25 | ||
| 13 | 09116-06094 Bolt (6x15)
SKU: 09116-06094 Weight: 0.060000 Brand: Price: $ 2.28 |
Bolt (6x15) | 1 | $ 2.28 | ||
| 14 | 29141-93J00 Nut (6mm)
SKU: 29141-93J00 Weight: 0.060000 Brand: Price: $ 1.80 |
Nut (6mm) | 4 | $ 1.80 | ||
| 15 | 09160-06082 Washer (6.5x13x1.0)
SKU: 09160-06082 Weight: 0.060000 Brand: Price: $ 1.44 |
Washer (6.5x13x1.0) | 4 | $ 1.44 | ||
| 16 | 09420-04006 Impeller Key
SKU: 09420-04006 Weight: 0.060000 Brand: Price: $ 3.93 |
Impeller Key | 1 | $ 3.93 | ||
| 17 | 03142-04259 SCREW
SKU: 03142-04259 Weight: 0.060000 Brand: Price: $ 2.20 |
SCREW | 1 | $ 2.20 | ||
| 18 | 17400-95J03 Water Pump Repair Kit DF25 V-Twin
SKU: 17400-95J03 Weight: 0.180000 Brand: Price: $ 28.02 |
Water Pump Repair Kit DF25 V-Twin | 1 | $ 28.02 | Optional Includes: 3,4,5,6 16 | |
| 19 | 09320-08062 Cushion
SKU: 09320-08062 Weight: 0.060000 Brand: Price: $ 13.65 |
Cushion | 1 | $ 13.65 | S/N 680340 to 68XXXX |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
