Suzuki DF 30 Parts Listings - 2007
S/N 03001F-780001 to 03001F-78XXXX

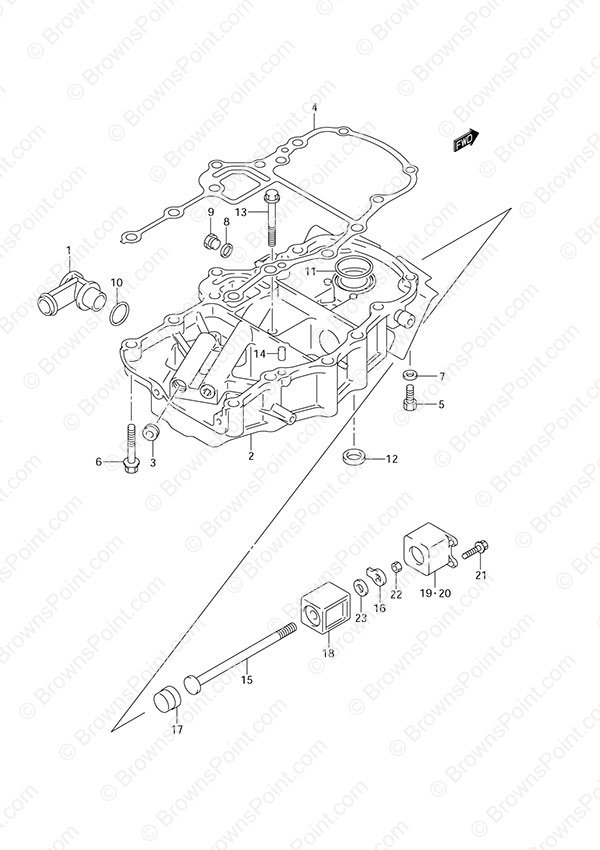

Fig. 35 - Engine Holder
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 17573-89J02 Water Return Hose Pipe
SKU: 17573-89J02 Weight: 0.080000 Brand: Price: $ 8.35 |
Water Return Hose Pipe | 1 | $ 8.35 | ||
| 2 | 51110-89J05-0EP Engine Holder (NLA)
SKU: 51110-89J05-0EP Weight: 10.000000 Brand: Price: $ 330.12 |
Engine Holder (NLA) | 1 | $ 330.12 | ||
| 3 | 09246-08004 Plug (NLA)
SKU: 09246-08004 Weight: 0.100000 Brand: Price: $ 2.16 |
Plug (NLA) | 2 | $ 2.16 | ||
| 4 | 51211-89J00 Engine Holder Gasket
SKU: 51211-89J00 Weight: 0.200000 Brand: Price: $ 47.55 |
Engine Holder Gasket | 1 | $ 47.55 | ||
| 5 | 09106-08146 Bolt (8x30) (NLA)
SKU: 09106-08146 Weight: 0.100000 Brand: Price: $ 4.06 |
Bolt (8x30) (NLA) | 2 | $ 4.06 | ||
| 6 | 09116-08156 Bolt (8x50)
SKU: 09116-08156 Weight: 0.060000 Brand: Price: $ 4.71 |
Bolt (8x50) | 3 | $ 4.71 | ||
| 7 | 09160-08082 Washer (8.5x16x1.2)
SKU: 09160-08082 Weight: 0.060000 Brand: Price: $ 1.63 |
Washer (8.5x16x1.2) | 2 | $ 1.63 | ||
| 8 | 09168-12017 Gasket (12x17x1)
SKU: 09168-12017 Weight: 0.060000 Brand: Price: $ 1.97 |
Gasket (12x17x1) | 1 | $ 1.97 | ||
| 9 | 09248-12007 Oil Drain Plug
SKU: 09248-12007 Weight: 0.060000 Brand: Price: $ 6.47 |
Oil Drain Plug | 1 | $ 6.47 | ||
| 10 | 09280-20006 O-Ring
SKU: 09280-20006 Weight: 0.060000 Brand: Price: $ 1.78 |
O-Ring | 1 | $ 1.78 | ||
| 11 | 09280-42003 O-Ring
SKU: 09280-42003 Weight: 0.100000 Brand: Price: $ 8.80 |
O-Ring | 1 | $ 8.80 | ||
| 12 | 09282-17009 Oil Seal (17x28x6)
SKU: 09282-17009 Weight: 0.060000 Brand: Price: $ 10.20 |
Oil Seal (17x28x6) | 2 | $ 10.20 | ||
| 13 | 01550-08657 BOLT
SKU: 01550-08657 Weight: 0.100000 Brand: Price: $ 4.05 |
BOLT | 1 | $ 4.05 | ||
| 14 | 04221-08149 PIN
SKU: 04221-08149 Weight: 0.100000 Brand: Price: $ 1.96 |
PIN | 2 | $ 1.96 | ||
| 15 | 54112-89J00 Upper Mount Bolt (NLA)
SKU: 54112-89J00 Weight: 1.000000 Brand: Price: $ 16.29 |
Upper Mount Bolt (NLA) | 2 | $ 16.29 | ||
| 16 | 54113-89J00 Upper Mount Bolt Washer (NLA)
SKU: 54113-89J00 Weight: 0.100000 Brand: Price: $ 3.98 |
Upper Mount Bolt Washer (NLA) | 2 | $ 3.98 | ||
| 17 | 54125-89J00 Upper Thrust Reverse Mount
SKU: 54125-89J00 Weight: 0.100000 Brand: Price: $ 5.23 |
Upper Thrust Reverse Mount | 2 | $ 5.23 | ||
| 18 | 54130-89J01 Upper Mount
SKU: 54130-89J01 Weight: 1.000000 Brand: Price: $ 42.45 |
Upper Mount | 2 | $ 42.45 | ||
| 19 | 54148-89J00-0EP Upper Mount Stbd Cover
SKU: 54148-89J00-0EP Weight: 0.100000 Brand: Price: $ 61.34 |
Upper Mount Stbd Cover | 1 | $ 61.34 | ||
| 20 | 54149-89J00-0EP Upper Mount Port Cover (NLA)
SKU: 54149-89J00-0EP Weight: 0.100000 Brand: Price: $ 30.61 |
Upper Mount Port Cover (NLA) | 1 | $ 30.61 | ||
| 21 | 09116-06121 Bolt (6x25)
SKU: 09116-06121 Weight: 0.060000 Brand: Price: $ 2.72 |
Bolt (6x25) | 6 | $ 2.72 | ||
| 22 | 09159-10050 Nut
SKU: 09159-10050 Weight: 0.060000 Brand: Price: $ 2.59 |
Nut | 2 | $ 2.59 | ||
| 23 | 09160-10081 Washer (10x20x3.0)
SKU: 09160-10081 Weight: 0.060000 Brand: Price: $ 2.52 |
Washer (10x20x3.0) | 2 | $ 2.52 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
