Suzuki DF 30 Parts Listings - 2006
S/N 03001F-680001 to 03001F-68XXXX

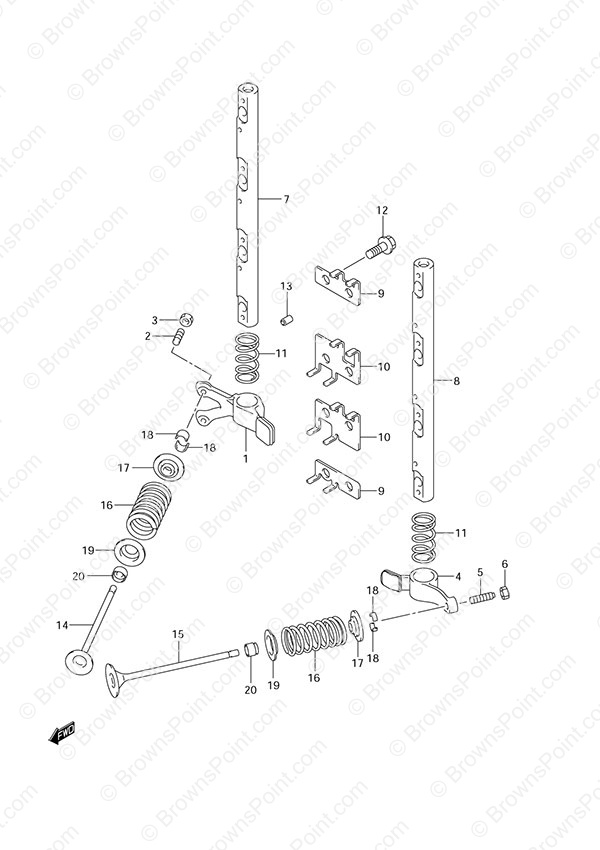

Fig. 6 - Valve
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 12841-89J00 Intake Valve Rocker Arm (NLA)
SKU: 12841-89J00 Weight: 0.100000 Brand: Price: $ 42.17 |
Intake Valve Rocker Arm (NLA) | 3 | $ 42.17 | ||
| 2 | 12842-32411 Tappet Adjusting Screw
SKU: 12842-32411 Weight: 0.250000 Brand: Price: $ 5.53 |
Tappet Adjusting Screw | 6 | $ 5.53 | ||
| 3 | 12843-32400 Tappet Adjusting Nut
SKU: 12843-32400 Weight: 0.250000 Brand: Price: $ 2.90 |
Tappet Adjusting Nut | 6 | $ 2.90 | ||
| 4 | 12851-89J00 Exhaust Valve Rocker Arm (NLA)
SKU: 12851-89J00 Weight: 0.100000 Brand: Price: $ 28.42 |
Exhaust Valve Rocker Arm (NLA) | 3 | $ 28.42 | ||
| 5 | 12842-32411 Tappet Adjusting Screw
SKU: 12842-32411 Weight: 0.250000 Brand: Price: $ 5.53 |
Tappet Adjusting Screw | 3 | $ 5.53 | ||
| 6 | 12843-32400 Tappet Adjusting Nut
SKU: 12843-32400 Weight: 0.250000 Brand: Price: $ 2.90 |
Tappet Adjusting Nut | 3 | $ 2.90 | ||
| 7 | 12860-89J00 Intake Rocker Arm Shaft (NLA)
SKU: 12860-89J00 Weight: 0.100000 Brand: Price: $ 49.45 |
Intake Rocker Arm Shaft (NLA) | 1 | $ 49.45 | ||
| 8 | 12870-89J00 Exhaust Rocker Arm Shaft (NLA)
SKU: 12870-89J00 Weight: 0.100000 Brand: Price: $ 49.45 |
Exhaust Rocker Arm Shaft (NLA) | 1 | $ 49.45 | ||
| 9 | 12881-89J00 Rocker Arm Shaft Bracket (NLA)
SKU: 12881-89J00 Weight: 0.100000 Brand: Price: $ 2.03 |
Rocker Arm Shaft Bracket (NLA) | 2 | $ 2.03 | ||
| 10 | 12882-89J00 Rocker Arm Shaft Bracket (NLA)
SKU: 12882-89J00 Weight: 0.100000 Brand: Price: $ 2.51 |
Rocker Arm Shaft Bracket (NLA) | 2 | $ 2.51 | ||
| 11 | 12891-89J00 Rocker Arm Spring (NLA)
SKU: 12891-89J00 Weight: 0.100000 Brand: Price: $ 1.64 |
Rocker Arm Spring (NLA) | 6 | $ 1.64 | ||
| 12 | 09103-07011 Bolt (7x24) (NLA)
SKU: 09103-07011 Weight: 0.100000 Brand: Price: $ 1.68 |
Bolt (7x24) (NLA) | 8 | $ 1.68 | ||
| 13 | 09206-06005 Knock Pin (NLA)
SKU: 09206-06005 Weight: 0.100000 Brand: Price: $ 1.68 |
Knock Pin (NLA) | 4 | $ 1.68 | ||
| 14 | 12911-85100 Intake Valve
SKU: 12911-85100 Weight: 0.100000 Brand: Price: $ 34.37 |
Intake Valve | 6 | $ 34.37 | ||
| 15 | 12915-89J00 Exhaust Valve
SKU: 12915-89J00 Weight: 0.100000 Brand: Price: $ 71.81 |
Exhaust Valve | 3 | $ 71.81 | ||
| 16 | 12921-53A00 Valve Spring (NLA)
SKU: 12921-53A00 Weight: 0.100000 Brand: Price: $ 6.73 |
Valve Spring (NLA) | 9 | $ 6.73 | ||
| 17 | 12931-86500 Valve Spring Retainer (NLA)
SKU: 12931-86500 Weight: 0.100000 Brand: Price: $ 3.39 |
Valve Spring Retainer (NLA) | 9 | $ 3.39 | ||
| 18 | 12932-24400 Valve Cotter
SKU: 12932-24400 Weight: 0.060000 Brand: Price: $ 2.04 |
Valve Cotter | 18 | $ 2.04 | ||
| 19 | 12933-86510 Valve Spring Seat
SKU: 12933-86510 Weight: 0.100000 Brand: Price: $ 2.66 |
Valve Spring Seat | 9 | $ 2.66 | ||
| 20 | 09289-05006 Valve Stem Seal
SKU: 09289-05006 Weight: 0.060000 Brand: Price: $ 4.02 |
Valve Stem Seal | 9 | $ 4.02 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
