Suzuki DF 30 Parts Listings - 2006
S/N 03001F-680001 to 03001F-68XXXX

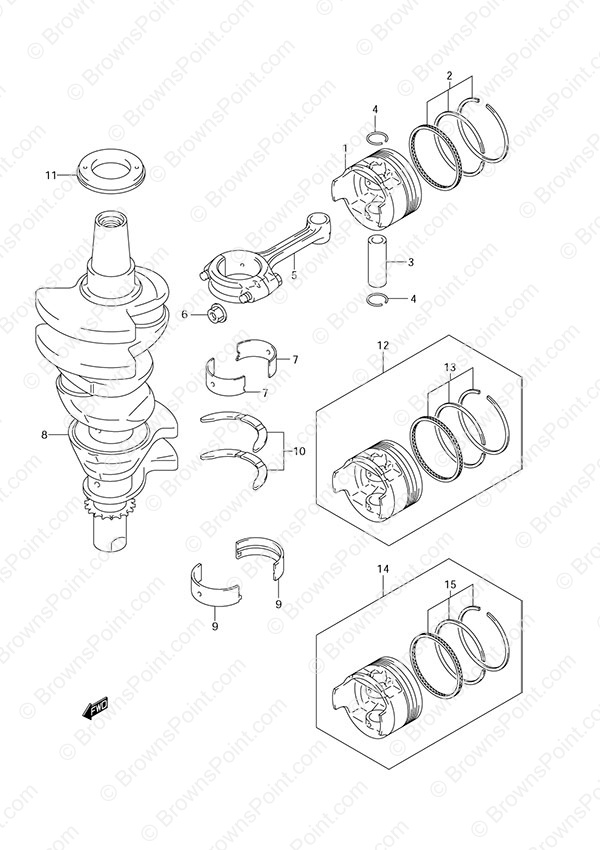

Fig. 4 - Crankshaft
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 12111-89J00 Piston (NLA)
SKU: 12111-89J00 Weight: 1.000000 Brand: Price: $ 48.03 |
Piston (NLA) | 3 | $ 48.03 | ||
| 2 | 12140-51F10 Piston Ring Set
SKU: 12140-51F10 Weight: 0.100000 Brand: Price: $ 46.15 |
Piston Ring Set | 3 | $ 46.15 | ||
| 3 | 12151-60D00 Piston Pin
SKU: 12151-60D00 Weight: 0.100000 Brand: Price: $ 15.58 |
Piston Pin | 3 | $ 15.58 | ||
| 4 | 09381-16001 Piston Pin Circlip
SKU: 09381-16001 Weight: 0.060000 Brand: Price: $ 1.44 |
Piston Pin Circlip | 6 | $ 1.44 | ||
| 5 | 12160-60D02 Connecting Rod Assembly (NLA)
SKU: 12160-60D02 Weight: 1.000000 Brand: Price: $ 102.39 |
Connecting Rod Assembly (NLA) | 3 | $ 102.39 | ||
| 6 | 09159-08033 Nut
SKU: 09159-08033 Weight: 0.100000 Brand: Price: $ 3.02 |
Nut | 6 | $ 3.02 | ||
| 7-1 | 12181-81401-0A0 Connecting Rod Bearing
SKU: 12181-81401-0A0 Weight: 0.060000 Brand: Price: $ 15.06 |
Connecting Rod Bearing | 6 | $ 15.06 | ||
| 7-2 | 12181-81401-025 Connecting Rod Bearing (US:0.25) (NLA)
SKU: 12181-81401-025 Weight: 0.100000 Brand: Price: $ 9.17 |
Connecting Rod Bearing (US:0.25) (NLA) | 6 | $ 9.17 | Optional | |
| 8 | 12220-89J01 Crankshaft Assembly (NLA)
SKU: 12220-89J01 Weight: 50.000000 Brand: Price: $ 807.76 |
Crankshaft Assembly (NLA) | 1 | $ 807.76 | ||
| 9-1 | 12341-89J00-0A0 Crankshaft Bearing Set (Green) (NLA)
SKU: 12341-89J00-0A0 Weight: 0.125000 Brand: Price: $ 9.90 |
Crankshaft Bearing Set (Green) (NLA) | 8 | $ 9.90 | ||
| 9-2 | 12341-89J00-0B0 Crankshaft Bearing Set (Black) (NLA)
SKU: 12341-89J00-0B0 Weight: 0.100000 Brand: Price: $ 9.89 |
Crankshaft Bearing Set (Black) (NLA) | 8 | $ 9.89 | ||
| 9-3 | 12341-89J00-0C0 Crankshaft Bearing Set (NON)
SKU: 12341-89J00-0C0 Weight: 0.100000 Brand: Price: $ 10.20 |
Crankshaft Bearing Set (NON) | 8 | $ 10.20 | ||
| 9-4 | 12341-89J00-0D0 Crankshaft Bearing Set (Yellow) (NLA)
SKU: 12341-89J00-0D0 Weight: 0.100000 Brand: Price: $ 9.89 |
Crankshaft Bearing Set (Yellow) (NLA) | 8 | $ 9.89 | ||
| 9-5 | 12341-89J00-0E0 Crankshaft Bearing Set (Blue) (NLA)
SKU: 12341-89J00-0E0 Weight: 0.100000 Brand: Price: $ 7.98 |
Crankshaft Bearing Set (Blue) (NLA) | 8 | $ 7.98 | ||
| 9-6 | 12341-89J00-025 Crankshaft Bearing Set (US:0.25)
SKU: 12341-89J00-025 Weight: 0.125000 Brand: Price: $ 10.22 |
Crankshaft Bearing Set (US:0.25) | 8 | $ 10.22 | Optional | |
| 9-7 | 12341-89J00-050 Crankshaft Bearing Set (US:0.50) (NLA)
SKU: 12341-89J00-050 Weight: 0.100000 Brand: Price: $ 7.98 |
Crankshaft Bearing Set (US:0.50) (NLA) | 8 | $ 7.98 | Optional | |
| 10 | 12300-78830 Crankshaft Thrust Bearing
SKU: 12300-78830 Weight: 0.100000 Brand: Price: $ 19.60 |
Crankshaft Thrust Bearing | 1 | $ 19.60 | ||
| 11 | 09283-32043 Oil Seal
SKU: 09283-32043 Weight: 0.100000 Brand: Price: $ 23.66 |
Oil Seal | 1 | $ 23.66 | ||
| 12 | 12100-89J00-025 Piston & Ring Set (OS:0.25) (NLA)
SKU: 12100-89J00-025 Weight: 1.000000 Brand: Price: $ 61.29 |
Piston & Ring Set (OS:0.25) (NLA) | 3 | $ 61.29 | Optional | |
| 13 | 12140-51F10-025 Piston Ring Set (OS:0.25) (NLA)
SKU: 12140-51F10-025 Weight: 0.100000 Brand: Price: $ 34.72 |
Piston Ring Set (OS:0.25) (NLA) | 3 | $ 34.72 | Optional | |
| 14 | 12100-89J00-050 Piston & Ring Set (OS:0.50)
SKU: 12100-89J00-050 Weight: 1.000000 Brand: Price: $ 106.64 |
Piston & Ring Set (OS:0.50) | 3 | $ 106.64 | Optional | |
| 15 | 12140-51F10-050 Piston Ring Set (OS:0.50)
SKU: 12140-51F10-050 Weight: 0.250000 Brand: Price: $ 62.05 |
Piston Ring Set (OS:0.50) | 3 | $ 62.05 | Optional |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
