Suzuki DF 30 Parts Listings - 2005
S/N 03001F-510001 to 03001F-51XXXX

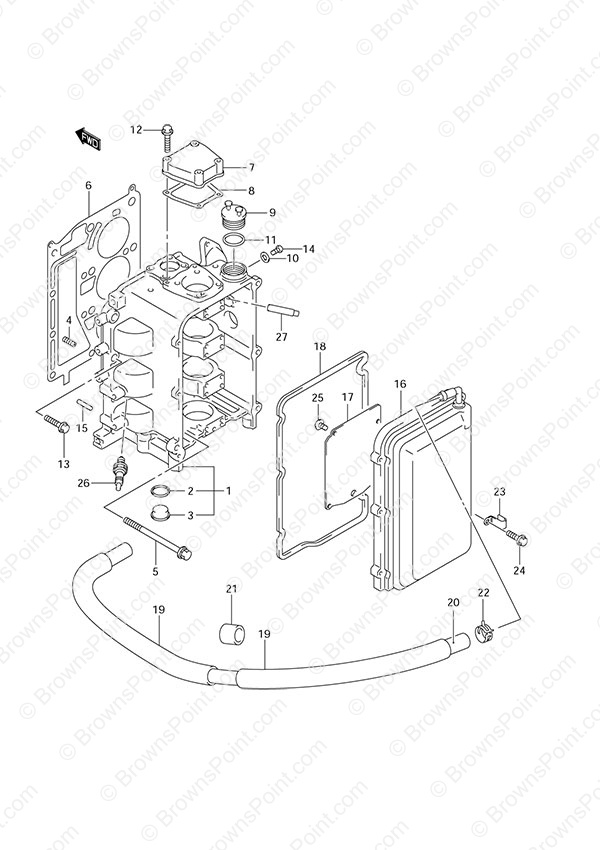

Fig. 1 - Cylinder Head
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 11100-89J00 Cylinder Head
SKU: 11100-89J00 Weight: 27.000000 Brand: Price: $ 1,352.50 |
Cylinder Head | 1 | $ 1,352.50 | ||
| 2 | 11217-85FA0 M26 Plug Gasket
SKU: 11217-85FA0 Weight: 0.060000 Brand: Price: $ 3.57 |
M26 Plug Gasket | 2 | $ 3.57 | ||
| 3 | 11116-96J00 Plug
SKU: 11116-96J00 Weight: 0.060000 Brand: Price: $ 9.89 |
Plug | 2 | $ 9.89 | ||
| 4 | 11112-99E00 Oil Venturi Plug (NLA)
SKU: 11112-99E00 Weight: 0.100000 Brand: Price: $ 2.30 |
Oil Venturi Plug (NLA) | 1 | $ 2.30 | ||
| 5 | 11119-89J00 Cylinder Head Bolt (NLA)
SKU: 11119-89J00 Weight: 0.200000 Brand: Price: $ 5.23 |
Cylinder Head Bolt (NLA) | 8 | $ 5.23 | ||
| 6 | 11141-89J01 Cylinder Head Gasket
SKU: 11141-89J01 Weight: 0.350000 Brand: Price: $ 62.15 |
Cylinder Head Gasket | 1 | $ 62.15 | ||
| 7 | 11181-89J00 Cylinder Head Upper Cover (NLA)
SKU: 11181-89J00 Weight: 0.100000 Brand: Price: $ 12.48 |
Cylinder Head Upper Cover (NLA) | 1 | $ 12.48 | ||
| 8 | 11182-89J00 Cylinder Head Upper Cover Gasket
SKU: 11182-89J00 Weight: 0.060000 Brand: Price: $ 3.37 |
Cylinder Head Upper Cover Gasket | 1 | $ 3.37 | ||
| 9 | 11382-99E00 Oil Filler Cap
SKU: 11382-99E00 Weight: 0.060000 Brand: Price: $ 7.28 |
Oil Filler Cap | 1 | $ 7.28 | ||
| 10 | 09168-05010 Gasket
SKU: 09168-05010 Weight: 0.060000 Brand: Price: $ 1.73 |
Gasket | 3 | $ 1.73 | ||
| 11 | 09280-26006 O-Ring
SKU: 09280-26006 Weight: 0.060000 Brand: Price: $ 2.80 |
O-Ring | 1 | $ 2.80 | ||
| 12 | 01550-06307 BOLT
SKU: 01550-06307 Weight: 0.060000 Brand: Price: $ 2.74 |
BOLT | 4 | $ 2.74 | ||
| 13 | 01550-08307 BOLT
SKU: 01550-08307 Weight: 0.060000 Brand: Price: $ 3.59 |
BOLT | 4 | $ 3.59 | ||
| 14 | 02112-05087 SCREW
SKU: 02112-05087 Weight: 0.060000 Brand: Price: $ 1.44 |
SCREW | 3 | $ 1.44 | ||
| 15 | 04211-13189 PIN
SKU: 04211-13189 Weight: 0.060000 Brand: Price: $ 2.21 |
PIN | 2 | $ 2.21 | ||
| 16 | 11170-89J00 Cylinder Head Cover
SKU: 11170-89J00 Weight: 0.100000 Brand: Price: $ 254.32 |
Cylinder Head Cover | 1 | $ 254.32 | ||
| 17 | 11173-89J00 Breather Plate (NLA)
SKU: 11173-89J00 Weight: 0.100000 Brand: Price: $ 5.36 |
Breather Plate (NLA) | 1 | $ 5.36 | ||
| 18 | 11189-89J00 Cylinder Head Cover Gasket
SKU: 11189-89J00 Weight: 0.060000 Brand: Price: $ 23.61 |
Cylinder Head Cover Gasket | 1 | $ 23.61 | ||
| 19 | 18498-90J20 Breather Hose Protector *
SKU: 18498-90J20 Weight: 0.160000 Brand: Price: $ 9.89 |
Breather Hose Protector * | 2 | $ 9.89 | L:590->330 | |
| 20 | 09355-13207-00B Breather Hose
SKU: 09355-13207-00B Weight: 12.000000 Brand: Price: $ 65.02 |
Breather Hose | 1 | $ 65.02 | L:2000->770 | |
| 22 | 09401-20406 Clip (NLA)
SKU: 09401-20406 Weight: 0.100000 Brand: Price: $ 2.85 |
Clip (NLA) | 1 | $ 2.85 | ||
| 23 | 09403-25304 Clamp (NLA)
SKU: 09403-25304 Weight: 0.100000 Brand: Price: $ 1.57 |
Clamp (NLA) | 1 | $ 1.57 | ||
| 24 | 01550-06257 BOLT
SKU: 01550-06257 Weight: 0.060000 Brand: Price: $ 2.33 |
BOLT | 8 | $ 2.33 | ||
| 25 | 02142-0612A SCREW
SKU: 02142-0612A Weight: 0.100000 Brand: Price: $ 1.38 |
SCREW | 4 | $ 1.38 | ||
| 26 | 09482-00446 NGK DCPR6E Spark Plug
SKU: 09482-00446 Weight: 0.187500 Brand: Price: $ 3.57 |
NGK DCPR6E Spark Plug | 3 | $ 3.57 | ||
| 27 | 11116-54E00-001 OS Valve Guide (NLA)
SKU: 11116-54E00-001 Weight: 0.100000 Brand: Price: $ 10.74 |
OS Valve Guide (NLA) | 3 | $ 10.74 | Optional |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
