Suzuki DF 30 Parts Listings - 2001
S/N 03001F-151001 to 03001F-15XXXX

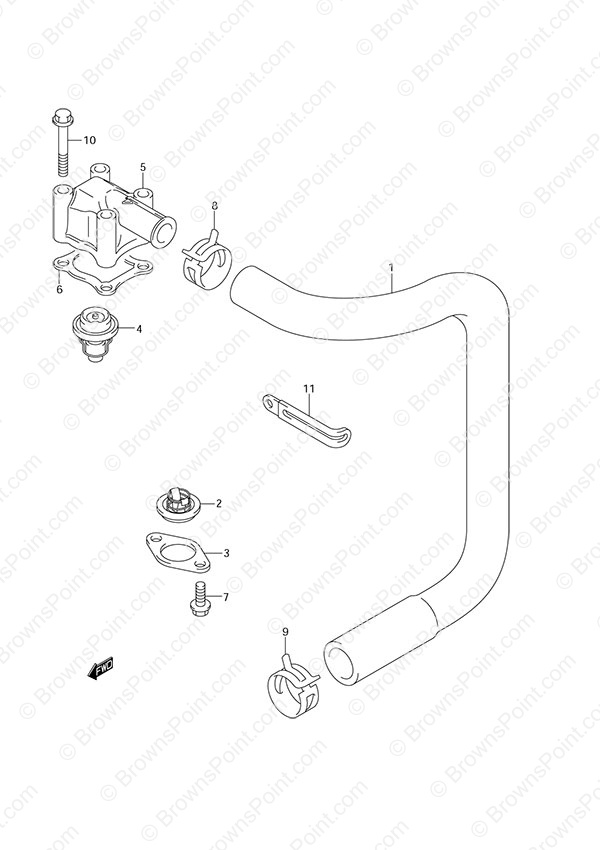

Fig. 13 - Thermostat

Ref# Part Number Description Req Qty* Price Each Order Remarks
1 11196-89J00 Water Return Hose 1 $ 25.18
2 17660-99E01 Water Pressure Valve 1 $ 17.21
3 17665-99E00 Water Pressure Valve Cover (NLA) 1 $ 22.98

Not Available

4 17670-94404 Thermostat (60c) 1 $ 56.21
5 17681-89J01 Thermostat Cover 1 $ 41.91
6 17685-89J00 Thermostat Gasket 1 $ 3.25
7 09116-06094 Bolt (6x15) 2 $ 2.28
8 09401-25406 Clip 1 $ 3.57
9 09401-26408 Clip 1 $ 3.57
10 01550-06457 BOLT 4 $ 2.74
11 09404-06435 Clamp (L:135) 1 $ 3.19

Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each. The information on this page is specific to the model and year and/or serial number shown in the header above.

Please verify your model and serial number before placing your order.
