Suzuki DF 25 Parts Listings - 2006
S/N 02501F-680001 to 02501F-68XXXX

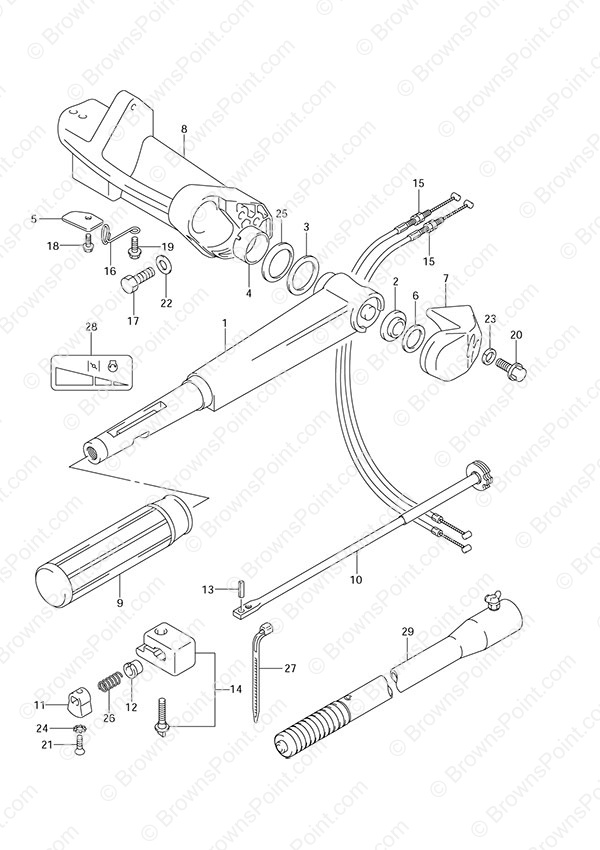

Fig. 40 - Tiller Handle
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 63111-96322-0EP Tiller Handle
SKU: 63111-96322-0EP Weight: 2.000000 Brand: Price: $ 137.24 |
Tiller Handle | 1 | $ 137.24 | ||
| 2 | 63114-95L00 Handle Cover Spacer
SKU: 63114-95L00 Weight: 0.060000 Brand: Price: $ 5.65 |
Handle Cover Spacer | 1 | $ 5.65 | ||
| 3 | 63115-96310 Handle Cover Inside Spacer
SKU: 63115-96310 Weight: 0.060000 Brand: Price: $ 6.26 |
Handle Cover Inside Spacer | 1 | $ 6.26 | ||
| 4 | 63115-89J00 Tiller Handle Bushing
SKU: 63115-89J00 Weight: 0.100000 Brand: Price: $ 8.17 |
Tiller Handle Bushing | 1 | $ 8.17 | ||
| 5 | 63117-89J00 Throttle Cable Cover (NLA)
SKU: 63117-89J00 Weight: 0.100000 Brand: Price: $ 3.59 |
Throttle Cable Cover (NLA) | 1 | $ 3.59 | ||
| 6 | 63118-94300 Tiller Handle Shim (0.3)
SKU: 63118-94300 Weight: 0.062500 Brand: Price: $ 3.57 |
Tiller Handle Shim (0.3) | 0 | $ 3.57 | ||
| 7 | 63121-89J02-0EP Tiller Handle Cover
SKU: 63121-89J02-0EP Weight: 0.700000 Brand: Price: $ 91.59 |
Tiller Handle Cover | 1 | $ 91.59 | ||
| 8 | 63131-89J11-0EP Tiller Handle Bracket
SKU: 63131-89J11-0EP Weight: 2.000000 Brand: Price: $ 212.51 |
Tiller Handle Bracket | 1 | $ 212.51 | ||
| 9 | 63210-93E30 Handle Grip
SKU: 63210-93E30 Weight: 1.500000 Brand: Price: $ 34.82 |
Handle Grip | 1 | $ 34.82 | ||
| 10 | 63220-96320 Handle Rod
SKU: 63220-96320 Weight: 1.000000 Brand: Price: $ 41.27 |
Handle Rod | 1 | $ 41.27 | ||
| 11 | 63223-89J00 Handle Rod Stopper (NLA)
SKU: 63223-89J00 Weight: 0.100000 Brand: Price: $ 4.21 |
Handle Rod Stopper (NLA) | 1 | $ 4.21 | ||
| 12 | 63225-93200 Handle Rod Bushing
SKU: 63225-93200 Weight: 0.060000 Brand: Price: $ 4.05 |
Handle Rod Bushing | 1 | $ 4.05 | ||
| 13 | 63227-93200 Handle Rod Pin
SKU: 63227-93200 Weight: 0.062500 Brand: Price: $ 2.18 |
Handle Rod Pin | 1 | $ 2.18 | ||
| 14 | 63240-97E10 Handle Grip Adjuster
SKU: 63240-97E10 Weight: 0.250000 Brand: Price: $ 29.07 |
Handle Grip Adjuster | 1 | $ 29.07 | ||
| 15 | 63610-89J11 Throttle Cable Assembly
SKU: 63610-89J11 Weight: 0.250000 Brand: Price: $ 33.39 |
Throttle Cable Assembly | 2 | $ 33.39 | ||
| 16 | 65793-89J00 Fuel Hose Holder (NLA)
SKU: 65793-89J00 Weight: 0.100000 Brand: Price: $ 5.13 |
Fuel Hose Holder (NLA) | 1 | $ 5.13 | ||
| 17 | 09100-10155 Bolt (10x50)
SKU: 09100-10155 Weight: 0.250000 Brand: Price: $ 5.56 |
Bolt (10x50) | 2 | $ 5.56 | ||
| 18 | 09116-05010 Bolt (5x12)
SKU: 09116-05010 Weight: 0.060000 Brand: Price: $ 2.14 |
Bolt (5x12) | 1 | $ 2.14 | ||
| 19 | 09116-06127 Bolt (6x12)
SKU: 09116-06127 Weight: 0.060000 Brand: Price: $ 2.98 |
Bolt (6x12) | 1 | $ 2.98 | ||
| 20 | 09116-08137 Bolt (8x22)
SKU: 09116-08137 Weight: 0.060000 Brand: Price: $ 7.44 |
Bolt (8x22) | 2 | $ 7.44 | ||
| 21 | 09126-06015 Screw (6x23)
SKU: 09126-06015 Weight: 0.060000 Brand: Price: $ 2.62 |
Screw (6x23) | 1 | $ 2.62 | ||
| 22 | 09160-10098 Washer (10x18x1.0)
SKU: 09160-10098 Weight: 0.100000 Brand: Price: $ 1.42 |
Washer (10x18x1.0) | 2 | $ 1.42 | ||
| 24 | 09163-06001 Lock Washer (6.4x12x0.5)
SKU: 09163-06001 Weight: 0.060000 Brand: Price: $ 1.49 |
Lock Washer (6.4x12x0.5) | 1 | $ 1.49 | ||
| 25 | 09164-32005 Wave Washer
SKU: 09164-32005 Weight: 0.100000 Brand: Price: $ 4.03 |
Wave Washer | 1 | $ 4.03 | ||
| 26 | 09440-12027 Spring
SKU: 09440-12027 Weight: 0.060000 Brand: Price: $ 1.39 |
Spring | 1 | $ 1.39 | ||
| 27 | 09407-14403 Clamp (L:125)
SKU: 09407-14403 Weight: 0.060000 Brand: Price: $ 2.27 |
Clamp (L:125) | 1 | $ 2.27 | ||
| 28 | 69714-89J00 Handle Grip Mark (NLA)
SKU: 69714-89J00 Weight: 0.100000 Brand: Price: $ 2.64 |
Handle Grip Mark (NLA) | 1 | $ 2.64 | ||
| 29 | 63300-93E00 Extension Bar Assembly (NLA)
SKU: 63300-93E00 Weight: 0.100000 Brand: Price: $ 193.86 |
Extension Bar Assembly (NLA) | 1 | $ 193.86 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
