Suzuki DF 25 Parts Listings - 2004
S/N 02501F-421001 to 02501F-42XXXX

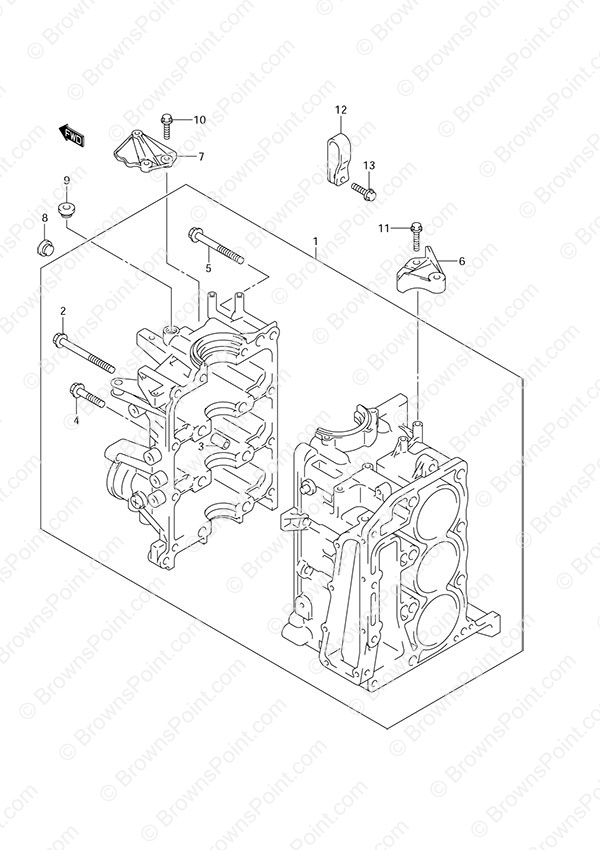

Fig. 2 - Cylinder Block
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 11300-89JV1 Cylinder Block Assembly (NLA)
SKU: 11300-89JV1 Weight: 1.000000 Brand: Price: $ 1,589.32 |
Cylinder Block Assembly (NLA) | 1 | $ 1,589.32 | ||
| 2 | 11117-89J10 Crankcase Bolt (NLA)
SKU: 11117-89J10 Weight: 0.100000 Brand: Price: $ 3.76 |
Crankcase Bolt (NLA) | 8 | $ 3.76 | ||
| 3 | 09206-13019 Knock Pin
SKU: 09206-13019 Weight: 0.062500 Brand: Price: $ 2.54 |
Knock Pin | 4 | $ 2.54 | ||
| 4 | 01550-08407 BOLT 8 X 40
SKU: 01550-08407 Weight: 0.060000 Brand: Price: $ 3.48 |
BOLT 8 X 40 | 6 | $ 3.48 | ||
| 5 | 01550-08757 BOLT
SKU: 01550-08757 Weight: 0.080000 Brand: Price: $ 4.05 |
BOLT | 2 | $ 4.05 | ||
| 6 | 18711-89J00 Starboard Brace (NLA)
SKU: 18711-89J00 Weight: 0.100000 Brand: Price: $ 22.17 |
Starboard Brace (NLA) | 1 | $ 22.17 | ||
| 7 | 18712-89J00 Front Brace
SKU: 18712-89J00 Weight: 0.100000 Brand: Price: $ 25.97 |
Front Brace | 1 | $ 25.97 | ||
| 8 | 09246-04009 Plug
SKU: 09246-04009 Weight: 0.060000 Brand: Price: $ 3.68 |
Plug | 1 | $ 3.68 | ||
| 9 | 09246-08004 Plug (NLA)
SKU: 09246-08004 Weight: 0.100000 Brand: Price: $ 2.16 |
Plug (NLA) | 4 | $ 2.16 | ||
| 10 | 01550-06207 BOLT
SKU: 01550-06207 Weight: 0.060000 Brand: Price: $ 2.33 |
BOLT | 2 | $ 2.33 | ||
| 11 | 01550-06307 BOLT
SKU: 01550-06307 Weight: 0.060000 Brand: Price: $ 2.74 |
BOLT | 2 | $ 2.74 | ||
| 12 | 11291-89J00 Engine Hook (NLA)
SKU: 11291-89J00 Weight: 0.100000 Brand: Price: $ 6.24 |
Engine Hook (NLA) | 1 | $ 6.24 | ||
| 13 | 01550-08257 BOLT
SKU: 01550-08257 Weight: 0.060000 Brand: Price: $ 2.82 |
BOLT | 1 | $ 2.82 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
