Suzuki DF 25 Parts Listings - 2000
S/N 02501F-030001 to 02501F-03XXXX

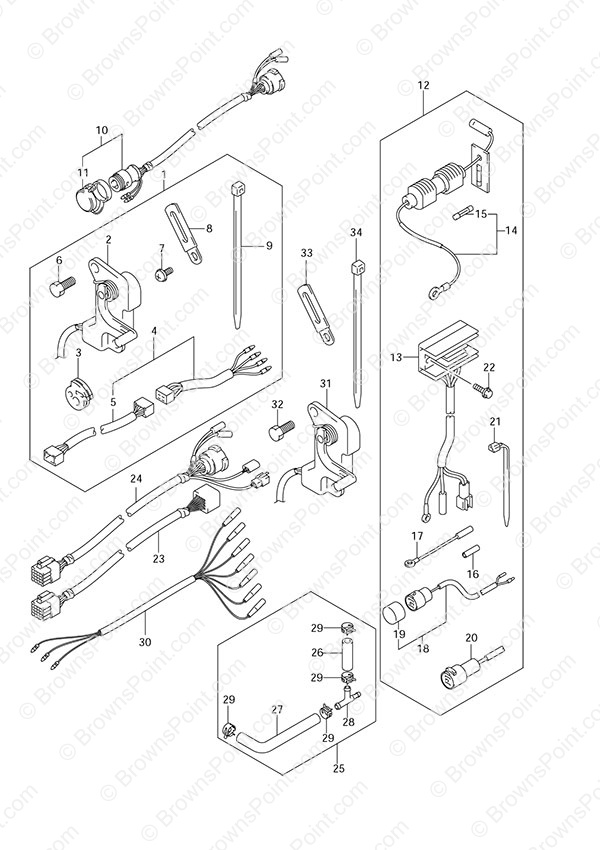

Fig. 47 - Opt: Trim Sender
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 34804-94711 Trim Sender Set
SKU: 34804-94711 Weight: 1.000000 Brand: Price: $ 295.79 |
Trim Sender Set | 1 | $ 295.79 | 4 Wire Sender | |
| 2 | 34801-94710 Trim Sender
SKU: 34801-94710 Weight: 1.000000 Brand: Price: $ 284.37 |
Trim Sender | 1 | $ 284.37 | 4 Wire Sender | |
| 3 | 36658-95600 Cable Grommet (NLA)
SKU: 36658-95600 Weight: 0.100000 Brand: Price: $ 5.94 |
Cable Grommet (NLA) | 1 | $ 5.94 | ||
| 4 | 36680-92E00 Trim Meter Wire Assembly (NLA)
SKU: 36680-92E00 Weight: 1.000000 Brand: Price: $ 75.02 |
Trim Meter Wire Assembly (NLA) | 1 | $ 75.02 | ||
| 5 | 36682-92E00 Wire Harness
SKU: 36682-92E00 Weight: 1.000000 Brand: Price: $ 82.25 |
Wire Harness | 1 | $ 82.25 | 4 Wire Sender | |
| 6 | 01550-06167 BOLT
SKU: 01550-06167 Weight: 0.060000 Brand: Price: $ 2.33 |
BOLT | 2 | $ 2.33 | ||
| 7 | 09125-06063 Screw (6x10)
SKU: 09125-06063 Weight: 0.060000 Brand: Price: $ 1.96 |
Screw (6x10) | 1 | $ 1.96 | ||
| 8 | 09404-06432 Clamp (L:65)*
SKU: 09404-06432 Weight: 0.060000 Brand: Price: $ 1.86 |
Clamp (L:65)* | 1 | $ 1.86 | ||
| 9-1 | 09407-14403 Clamp (L:125)
SKU: 09407-14403 Weight: 0.060000 Brand: Price: $ 2.27 |
Clamp (L:125) | 1 | $ 2.27 | ||
| 9-2 | 09407-14407 Clamp (L:140)
SKU: 09407-14407 Weight: 0.060000 Brand: Price: $ 3.09 |
Clamp (L:140) | 1 | $ 3.09 | ||
| 10-1 | 36620-87D20 Wiring Harness Extension (NLA)
SKU: 36620-87D20 Weight: 2.940000 Brand: Price: $ 115.51 |
Wiring Harness Extension (NLA) | 1 | $ 115.51 | L:5000 | |
| 10-2 | 36620-95302 Wiring Harness Extension (NLA)
SKU: 36620-95302 Weight: 1.280000 Brand: Price: $ 83.56 |
Wiring Harness Extension (NLA) | 1 | $ 83.56 | L:2000 | |
| 11 | 36631-94300 Cap
SKU: 36631-94300 Weight: 0.200000 Brand: Price: $ 4.20 |
Cap | 1 | $ 4.20 | ||
| 12 | 39600-89J00 Lighting Receptacle Set (NLA)
SKU: 39600-89J00 Weight: 0.100000 Brand: Price: $ 206.36 |
Lighting Receptacle Set (NLA) | 1 | $ 206.36 | Manual Starter | |
| 13 | 32800-89J00 Rectifier & Regulator (NLA)
SKU: 32800-89J00 Weight: 0.400000 Brand: Price: $ 206.84 |
Rectifier & Regulator (NLA) | 1 | $ 206.84 | ||
| 14 | 36740-95253 Fuse Case Assembly
SKU: 36740-95253 Weight: 0.100000 Brand: Price: $ 18.47 |
Fuse Case Assembly | 1 | $ 18.47 | ||
| 15 | 09481-20001 20 Amp Fuse
SKU: 09481-20001 Weight: 0.060000 Brand: Price: $ 2.54 |
20 Amp Fuse | 1 | $ 2.54 | ||
| 16 | 37132-93700 Wire Connector
SKU: 37132-93700 Weight: 0.100000 Brand: Price: $ 2.22 |
Wire Connector | 1 | $ 2.22 | ||
| 17 | 37801-98300 Lead (NLA)
SKU: 37801-98300 Weight: 0.100000 Brand: Price: $ 3.65 |
Lead (NLA) | 1 | $ 3.65 | ||
| 18 | 39601-95D00 Lighting Receptacle Assembly
SKU: 39601-95D00 Weight: 0.250000 Brand: Price: $ 39.79 |
Lighting Receptacle Assembly | 1 | $ 39.79 | ||
| 19 | 36634-93910 Connector Cap
SKU: 36634-93910 Weight: 0.060000 Brand: Price: $ 4.66 |
Connector Cap | 1 | $ 4.66 | ||
| 20 | 39602-93900 Lamp Cord Plug Assembly
SKU: 39602-93900 Weight: 0.500000 Brand: Price: $ 41.23 |
Lamp Cord Plug Assembly | 1 | $ 41.23 | ||
| 21 | 09407-14403 Clamp (L:125)
SKU: 09407-14403 Weight: 0.060000 Brand: Price: $ 2.27 |
Clamp (L:125) | 1 | $ 2.27 | ||
| 22 | 01550-06207 BOLT
SKU: 01550-06207 Weight: 0.060000 Brand: Price: $ 2.33 |
BOLT | 2 | $ 2.33 | ||
| 25 | 34660-89J00 DF25/DF30 Water Pressure Gauge Install Kit (NLA)
SKU: 34660-89J00 Weight: 0.100000 Brand: Price: $ 6.95 |
DF25/DF30 Water Pressure Gauge Install Kit (NLA) | 1 | $ 6.95 | ||
| 26 | 09352-50006-600 Hose (5x9x600)
SKU: 09352-50006-600 Weight: 0.250000 Brand: Price: $ 7.60 |
Hose (5x9x600) | 1 | $ 7.60 | L:600->70 | |
| 27 | 09352-50006-600 Hose (5x9x600)
SKU: 09352-50006-600 Weight: 0.250000 Brand: Price: $ 7.60 |
Hose (5x9x600) | 1 | $ 7.60 | L:600->140 | |
| 28 | 09367-06006 3 Way
SKU: 09367-06006 Weight: 0.060000 Brand: Price: $ 4.09 |
3 Way | 1 | $ 4.09 | ||
| 29 | 09401-08411 Clip
SKU: 09401-08411 Weight: 0.060000 Brand: Price: $ 1.78 |
Clip | 4 | $ 1.78 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
