Suzuki DF 15 Parts Listings - 2008
S/N 01502F-880001 to 01502F-88XXXX

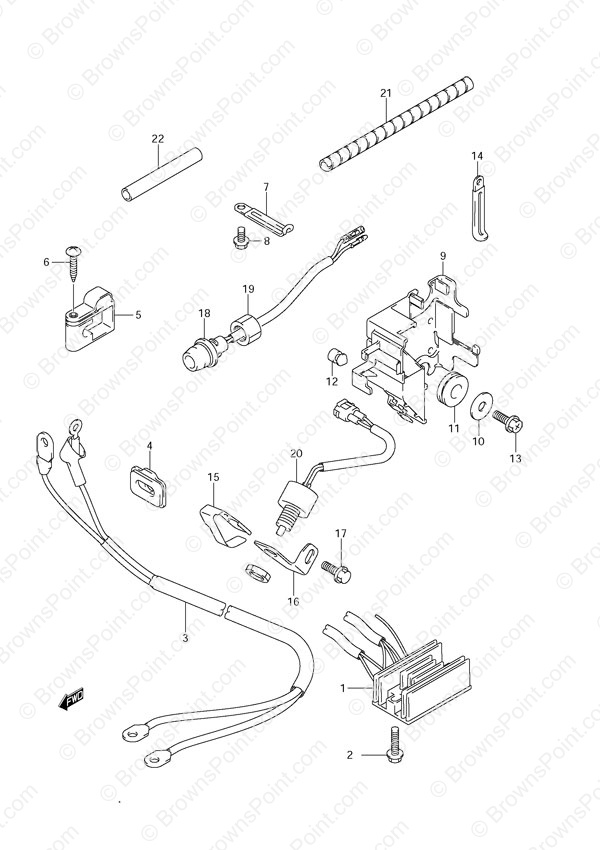

Fig. 32 - Rectifier
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 32800-94J11 Rectifier/Regulator Assembly
SKU: 32800-94J11 Weight: 0.320000 Brand: Price: $ 217.82 |
Rectifier/Regulator Assembly | 1 | $ 217.82 | w/Electric Starter | |
| 2 | 01550-06257 BOLT
SKU: 01550-06257 Weight: 0.060000 Brand: Price: $ 2.33 |
BOLT | 2 | $ 2.33 | ||
| 3 | 33810-94J01 Starter Motor Cable
SKU: 33810-94J01 Weight: 2.000000 Brand: Price: $ 82.72 |
Starter Motor Cable | 1 | $ 82.72 | w/Electric Starter | |
| 4 | 33811-94J10 Starter Cable Grommet (NLA)
SKU: 33811-94J10 Weight: 0.100000 Brand: Price: $ 3.03 |
Starter Cable Grommet (NLA) | 1 | $ 3.03 | w/Electric Starter | |
| 5 | 33816-94J01 Cable Clamp
SKU: 33816-94J01 Weight: 0.100000 Brand: Price: $ 4.80 |
Cable Clamp | 1 | $ 4.80 | w/Electric Starter | |
| 6 | 03241-0625A SCREW
SKU: 03241-0625A Weight: 0.100000 Brand: Price: $ 2.08 |
SCREW | 1 | $ 2.08 | w/Electric Starter | |
| 7 | 29404-93J11 Clamp (L:65)
SKU: 29404-93J11 Weight: 0.060000 Brand: Price: $ 1.57 |
Clamp (L:65) | 1 | $ 1.57 | ||
| 8 | 01550-06127 BOLT
SKU: 01550-06127 Weight: 0.060000 Brand: Price: $ 2.33 |
BOLT | 1 | $ 2.33 | ||
| 9 | 32890-94J00 Electric Parts Holder (NLA)
SKU: 32890-94J00 Weight: 1.000000 Brand: Price: $ 6.42 |
Electric Parts Holder (NLA) | 1 | $ 6.42 | ||
| 10 | 09160-06054 Washer (6.5x22.1.6)
SKU: 09160-06054 Weight: 0.062500 Brand: Price: $ 1.63 |
Washer (6.5x22.1.6) | 2 | $ 1.63 | ||
| 11 | 09320-12090 Cushion
SKU: 09320-12090 Weight: 0.060000 Brand: Price: $ 1.91 |
Cushion | 2 | $ 1.91 | ||
| 12 | 09321-06036 Cushion
SKU: 09321-06036 Weight: 0.060000 Brand: Price: $ 1.53 |
Cushion | 1 | $ 1.53 | ||
| 13 | 01550-06167 BOLT
SKU: 01550-06167 Weight: 0.060000 Brand: Price: $ 2.33 |
BOLT | 2 | $ 2.33 | ||
| 14 | 09407-11401 Clamp (L:95)
SKU: 09407-11401 Weight: 0.060000 Brand: Price: $ 2.28 |
Clamp (L:95) | 1 | $ 2.28 | w/Manual Starter | |
| 15 | 37725-94302 Neutral Switch Actuator
SKU: 37725-94302 Weight: 0.060000 Brand: Price: $ 5.35 |
Neutral Switch Actuator | 1 | $ 5.35 | ||
| 16 | 37726-95D02 Switch Bracket
SKU: 37726-95D02 Weight: 0.100000 Brand: Price: $ 6.21 |
Switch Bracket | 1 | $ 6.21 | ||
| 17 | 01550-06167 BOLT
SKU: 01550-06167 Weight: 0.060000 Brand: Price: $ 2.33 |
BOLT | 1 | $ 2.33 | ||
| 18 | 37161-94J00 Start Switch Assembly
SKU: 37161-94J00 Weight: 1.000000 Brand: Price: $ 41.14 |
Start Switch Assembly | 1 | $ 41.14 | w/Electric Starter | |
| 19 | 09159-14014 Nut (10mm)
SKU: 09159-14014 Weight: 0.060000 Brand: Price: $ 3.98 |
Nut (10mm) | 1 | $ 3.98 | w/Electric Starter | |
| 20 | 37721-94J01 Neutral Switch Assembly
SKU: 37721-94J01 Weight: 0.100000 Brand: Price: $ 48.50 |
Neutral Switch Assembly | 1 | $ 48.50 | ||
| 21 | 33833-91J00 Tube (6x8x250)
SKU: 33833-91J00 Weight: 0.125000 Brand: Price: $ 7.13 |
Tube (6x8x250) | 1 | $ 7.13 | L:250->50 | |
| 22 | 33833-94JL0 Switch Lead Tube
SKU: 33833-94JL0 Weight: 0.100000 Brand: Price: $ 4.39 |
Switch Lead Tube | 1 | $ 4.39 | w/Electric Starter |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
