Suzuki DF 15 Parts Listings - 2008
S/N 01502F-880001 to 01502F-88XXXX

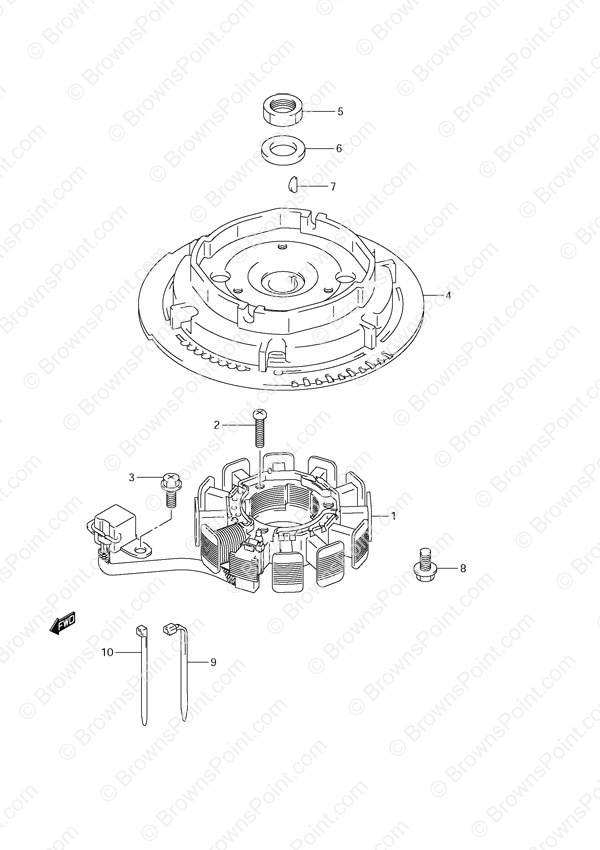

Fig. 28 - Magneto
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1-1 | 32120-94J00 Stator & Pulser Coil
SKU: 32120-94J00 Weight: 1.800000 Brand: Price: $ 347.16 |
Stator & Pulser Coil | 1 | $ 347.16 | w/Manual Starter | |
| 1-2 | 32120-94J10 Stator & Pulser Coil
SKU: 32120-94J10 Weight: 1.920000 Brand: Price: $ 319.77 |
Stator & Pulser Coil | 1 | $ 319.77 | w/Electric Starter | |
| 2 | 09125-06035 Screw (6x25)
SKU: 09125-06035 Weight: 0.060000 Brand: Price: $ 1.93 |
Screw (6x25) | 3 | $ 1.93 | ||
| 3 | 02162-05127 Screw (NLA)
SKU: 02162-05127 Weight: 0.100000 Brand: Price: $ 1.01 |
Screw (NLA) | 2 | $ 1.01 | ||
| 4-1 | 32102-94J10 Flywheel
SKU: 32102-94J10 Weight: 7.600000 Brand: Price: $ 417.88 |
Flywheel | 1 | $ 417.88 | w/Electric Starter | |
| 4-2 | 32102-94J00 Flywheel (NLA)
SKU: 32102-94J00 Weight: 1.000000 Brand: Price: $ 266.37 |
Flywheel (NLA) | 1 | $ 266.37 | w/Manual Starter | |
| 5 | 09140-14008 Nut 14mm
SKU: 09140-14008 Weight: 0.125000 Brand: Price: $ 2.32 |
Nut 14mm | 1 | $ 2.32 | ||
| 6 | 09160-15047 Washer (NLA)
SKU: 09160-15047 Weight: 0.100000 Brand: Price: $ 2.06 |
Washer (NLA) | 1 | $ 2.06 | ||
| 7 | 08341-31039 Woodruff Key
SKU: 08341-31039 Weight: 0.060000 Brand: Price: $ 1.91 |
Woodruff Key | 1 | $ 1.91 | ||
| 8 | 01550-06127 BOLT
SKU: 01550-06127 Weight: 0.060000 Brand: Price: $ 2.33 |
BOLT | 1 | $ 2.33 | ||
| 8 | 09407-11401 Clamp (L:95)
SKU: 09407-11401 Weight: 0.060000 Brand: Price: $ 2.28 |
Clamp (L:95) | 1 | $ 2.28 | ||
| 10-1 | 09407-14407 Clamp (L:140)
SKU: 09407-14407 Weight: 0.060000 Brand: Price: $ 3.09 |
Clamp (L:140) | 2 | $ 3.09 | ||
| 10-2 | 09407-14407 Clamp (L:140)
SKU: 09407-14407 Weight: 0.060000 Brand: Price: $ 3.09 |
Clamp (L:140) | 2 | $ 3.09 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
