Suzuki DF 15 Parts Listings - 2006
S/N 01502F-680001 to 01502F-68XXXX

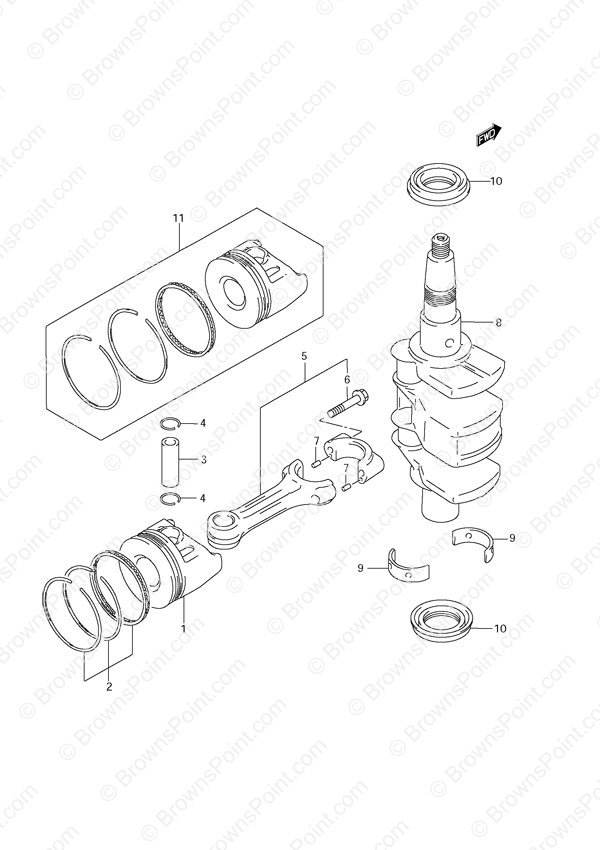

Fig. 5 - Crankshaft
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 12111-94J00-0B0 Piston
SKU: 12111-94J00-0B0 Weight: 1.000000 Brand: Price: $ 54.85 |
Piston | 2 | $ 54.85 | ||
| 2 | 12140-02C10 Piston Ring Set
SKU: 12140-02C10 Weight: 0.060000 Brand: Price: $ 40.32 |
Piston Ring Set | 2 | $ 40.32 | ||
| 3 | 12151-93E00 Piston Pin
SKU: 12151-93E00 Weight: 0.100000 Brand: Price: $ 9.64 |
Piston Pin | 2 | $ 9.64 | ||
| 4 | 09381-14001 Piston Pin Circlip
SKU: 09381-14001 Weight: 0.060000 Brand: Price: $ 1.44 |
Piston Pin Circlip | 4 | $ 1.44 | ||
| 5 | 12160-93E11-0A0 Connecting Rod Assy (Mark 1)
SKU: 12160-93E11-0A0 Weight: 0.300000 Brand: Price: $ 89.12 |
Connecting Rod Assy (Mark 1) | 2 | $ 89.12 | ||
| 6 | 12163-32C00 Connecting Rod Bolt (NLA)
SKU: 12163-32C00 Weight: 0.100000 Brand: Price: $ 3.79 |
Connecting Rod Bolt (NLA) | 4 | $ 3.79 | ||
| 7 | 04221-03059 PIN
SKU: 04221-03059 Weight: 0.100000 Brand: Price: $ 1.49 |
PIN | 4 | $ 1.49 | ||
| 8 | 12220-94J00 Crankshaft Assembly
SKU: 12220-94J00 Weight: 20.000000 Brand: Price: $ 695.93 |
Crankshaft Assembly | 1 | $ 695.93 | ||
| 9-1 | 12229-33C00-0A0 Crankshaft Bearing (Green)
SKU: 12229-33C00-0A0 Weight: 0.100000 Brand: Price: $ 11.18 |
Crankshaft Bearing (Green) | 4 | $ 11.18 | ||
| 9-2 | 12229-33C00-0B0 Crankshaft Bearing (Black)
SKU: 12229-33C00-0B0 Weight: 0.100000 Brand: Price: $ 11.18 |
Crankshaft Bearing (Black) | 4 | $ 11.18 | ||
| 9-3 | 12229-33C00-0D0 Crankshaft Bearing (Yellow)
SKU: 12229-33C00-0D0 Weight: 0.100000 Brand: Price: $ 11.18 |
Crankshaft Bearing (Yellow) | 4 | $ 11.18 | Optional | |
| 10 | 09283-32048 Oil Seal (32x44x6.5)
SKU: 09283-32048 Weight: 0.125000 Brand: Price: $ 11.03 |
Oil Seal (32x44x6.5) | 2 | $ 11.03 | ||
| 11 | 12100-94J00-050 Piston & Ring Set (OS:0.50)
SKU: 12100-94J00-050 Weight: 0.350000 Brand: Price: $ 110.90 |
Piston & Ring Set (OS:0.50) | 2 | $ 110.90 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
