Suzuki DF 9.9 Parts Listings - 2009
S/N 00992F-980001 to 00992F-98XXXX

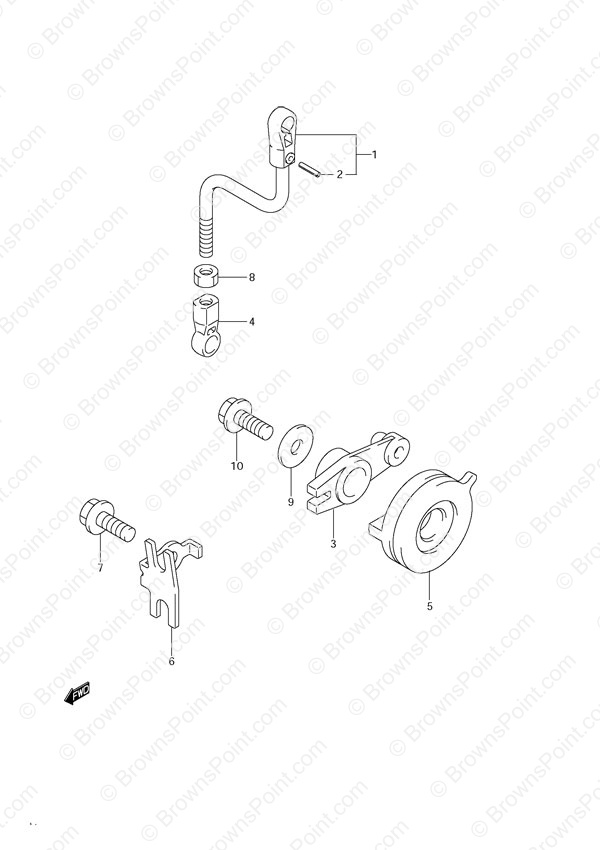

Fig. 20 - Throttle Control Non-Remote Control
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 13510-93E10 Throttle Rod
SKU: 13510-93E10 Weight: 0.060000 Brand: Price: $ 15.41 |
Throttle Rod | 1 | $ 15.41 | ||
| 2 | 09205-02006 Spring Pin (2x12)
SKU: 09205-02006 Weight: 0.060000 Brand: Price: $ 1.07 |
Spring Pin (2x12) | 1 | $ 1.07 | ||
| 3 | 19121-94J00 Throttle Control Lever
SKU: 19121-94J00 Weight: 0.125000 Brand: Price: $ 9.43 |
Throttle Control Lever | 1 | $ 9.43 | ||
| 4 | 19131-95502 Connector
SKU: 19131-95502 Weight: 0.060000 Brand: Price: $ 4.52 |
Connector | 1 | $ 4.52 | ||
| 5 | 19148-94J00 Throttle Drum
SKU: 19148-94J00 Weight: 0.100000 Brand: Price: $ 8.05 |
Throttle Drum | 1 | $ 8.05 | ||
| 6 | 19184-94J00 Throttle Cable Bracket (NLA)
SKU: 19184-94J00 Weight: 0.100000 Brand: Price: $ 3.62 |
Throttle Cable Bracket (NLA) | 1 | $ 3.62 | ||
| 7 | 01550-06167 BOLT
SKU: 01550-06167 Weight: 0.060000 Brand: Price: $ 2.33 |
BOLT | 1 | $ 2.33 | ||
| 8 | 09140-05005 Nut
SKU: 09140-05005 Weight: 0.060000 Brand: Price: $ 2.65 |
Nut | 1 | $ 2.65 | ||
| 9 | 09160-06084 Washer (6.5x18x1.6)
SKU: 09160-06084 Weight: 0.060000 Brand: Price: $ 1.78 |
Washer (6.5x18x1.6) | 1 | $ 1.78 | ||
| 10 | 01550-06167 BOLT
SKU: 01550-06167 Weight: 0.060000 Brand: Price: $ 2.33 |
BOLT | 1 | $ 2.33 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
