Suzuki DF 9.9 Parts Listings - 2008
S/N 00992F-880001 to 00992F-88XXXX

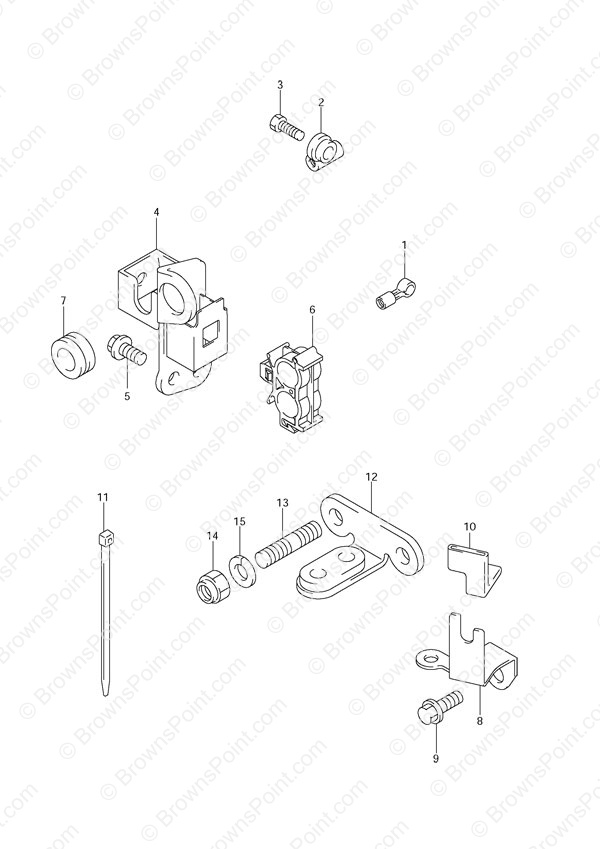

Fig. 57 - Remocon Cable Holder w/Power Tilt
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 67466-95200 Cable Connector
SKU: 67466-95200 Weight: 0.060000 Brand: Price: $ 5.35 |
Cable Connector | 1 | $ 5.35 | Throttle | |
| 2 | 67467-93E01 Cable Connector
SKU: 67467-93E01 Weight: 0.060000 Brand: Price: $ 7.55 |
Cable Connector | 1 | $ 7.55 | Clutch | |
| 3 | 09111-06064 Bolt (6x17)
SKU: 09111-06064 Weight: 0.060000 Brand: Price: $ 6.74 |
Bolt (6x17) | 1 | $ 6.74 | ||
| 4 | 67340-94JA0 Remocon Cable Holder
SKU: 67340-94JA0 Weight: 0.100000 Brand: Price: $ 73.04 |
Remocon Cable Holder | 1 | $ 73.04 | Clutch | |
| 5 | 09116-06094 Bolt (6x15)
SKU: 09116-06094 Weight: 0.060000 Brand: Price: $ 2.28 |
Bolt (6x15) | 1 | $ 2.28 | ||
| 6 | 09403-14309 Clamp
SKU: 09403-14309 Weight: 0.100000 Brand: Price: $ 4.27 |
Clamp | 1 | $ 4.27 | ||
| 7 | 09308-08013 Grommet
SKU: 09308-08013 Weight: 0.060000 Brand: Price: $ 1.26 |
Grommet | 1 | $ 1.26 | ||
| 8 | 67351-94J00 Remocon Cable Holder
SKU: 67351-94J00 Weight: 0.100000 Brand: Price: $ 11.23 |
Remocon Cable Holder | 1 | $ 11.23 | Throttle | |
| 9 | 01550-06167 BOLT
SKU: 01550-06167 Weight: 0.060000 Brand: Price: $ 2.33 |
BOLT | 1 | $ 2.33 | ||
| 10 | 67356-94J00 Cable Holder Cushion
SKU: 67356-94J00 Weight: 0.100000 Brand: Price: $ 12.37 |
Cable Holder Cushion | 1 | $ 12.37 | ||
| 11 | 09407-14407 Clamp (L:140)
SKU: 09407-14407 Weight: 0.060000 Brand: Price: $ 3.09 |
Clamp (L:140) | 1 | $ 3.09 | ||
| 12 | 43755-94JA0 Steering Bracket Attachment
SKU: 43755-94JA0 Weight: 0.100000 Brand: Price: $ 83.77 |
Steering Bracket Attachment | 1 | $ 83.77 | ||
| 13 | 09108-08130 Stud Bolt (8x20)
SKU: 09108-08130 Weight: 0.200000 Brand: Price: $ 5.67 |
Stud Bolt (8x20) | 2 | $ 5.67 | ||
| 14 | 09159-08059 Nut
SKU: 09159-08059 Weight: 0.060000 Brand: Price: $ 5.21 |
Nut | 2 | $ 5.21 | ||
| 15 | 29162-93J10 Lock Washer
SKU: 29162-93J10 Weight: 0.100000 Brand: Price: $ 1.57 |
Lock Washer | 2 | $ 1.57 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
