Suzuki DF 9.9 Parts Listings - 2008
S/N 00992F-880001 to 00992F-88XXXX

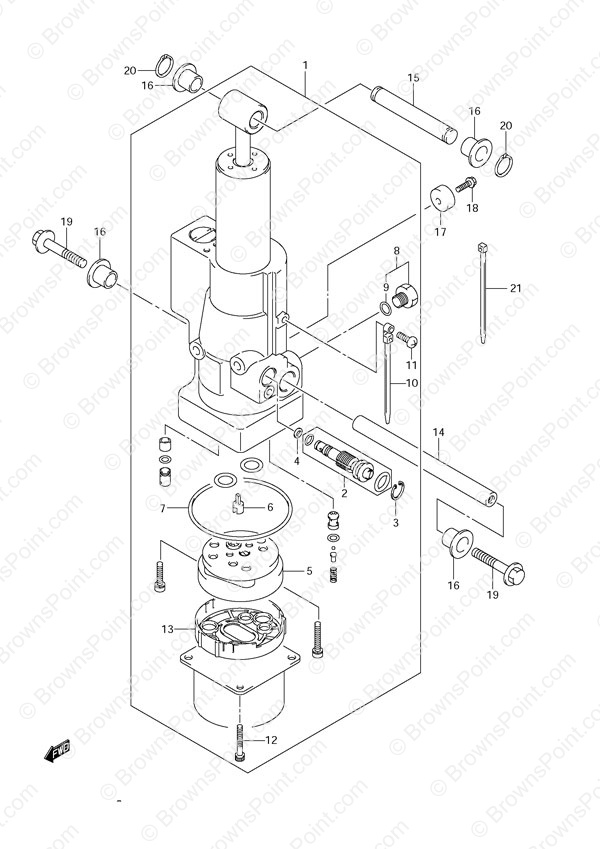

Fig. 42 - Trim Cylinder Power Tilt/Tiller Handle
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 48000-94JA0 Power Tilt Assembly (NLA)
SKU: 48000-94JA0 Weight: 10.000000 Brand: Price: $ 1,877.49 |
Power Tilt Assembly (NLA) | 1 | $ 1,877.49 | ||
| 2 | 48864-94J00 Manual Valve Set (NLA)
SKU: 48864-94J00 Weight: 0.250000 Brand: Price: $ 94.35 |
Manual Valve Set (NLA) | 1 | $ 94.35 | ||
| 3 | 48681-97E00 Circlip
SKU: 48681-97E00 Weight: 0.100000 Brand: Price: $ 4.74 |
Circlip | 1 | $ 4.74 | ||
| 4 | 48553-97E00 Seal Washer
SKU: 48553-97E00 Weight: 0.060000 Brand: Price: $ 8.21 |
Seal Washer | 1 | $ 8.21 | ||
| 5 | 48510-94600 Gear Pump Assembly (NLA)
SKU: 48510-94600 Weight: 0.100000 Brand: Price: $ 103.34 |
Gear Pump Assembly (NLA) | 1 | $ 103.34 | ||
| 6 | 48583-95E00 Drive Joint
SKU: 48583-95E00 Weight: 0.060000 Brand: Price: $ 11.21 |
Drive Joint | 1 | $ 11.21 | ||
| 7 | 31123-89J10 O-Ring
SKU: 31123-89J10 Weight: 0.100000 Brand: Price: $ 14.50 |
O-Ring | 1 | $ 14.50 | ||
| 8 | 48572-94J00 Cap (NLA)
SKU: 48572-94J00 Weight: 0.100000 Brand: Price: $ 17.16 |
Cap (NLA) | 1 | $ 17.16 | ||
| 9 | 48664-87D00 O-Ring
SKU: 48664-87D00 Weight: 0.100000 Brand: Price: $ 5.81 |
O-Ring | 1 | $ 5.81 | ||
| 10 | 31193-94J00 Band (NLA)
SKU: 31193-94J00 Weight: 0.100000 Brand: Price: $ 3.07 |
Band (NLA) | 1 | $ 3.07 | ||
| 11 | 31192-94J00 Screw (NLA)
SKU: 31192-94J00 Weight: 0.100000 Brand: Price: $ 4.34 |
Screw (NLA) | 1 | $ 4.34 | ||
| 12 | 31281-94J00 Through Bolt (NLA)
SKU: 31281-94J00 Weight: 0.100000 Brand: Price: $ 9.39 |
Through Bolt (NLA) | 2 | $ 9.39 | ||
| 13 | 48582-97E00 Pump Filter (NLA)
SKU: 48582-97E00 Weight: 0.100000 Brand: Price: $ 11.84 |
Pump Filter (NLA) | 1 | $ 11.84 | ||
| 14 | 48121-94JA0 Lower Tilt Cylinder Shaft (NLA)
SKU: 48121-94JA0 Weight: 0.100000 Brand: Price: $ 95.75 |
Lower Tilt Cylinder Shaft (NLA) | 1 | $ 95.75 | ||
| 15 | 48321-97E01 Upper Tilt Cylinder Shaft
SKU: 48321-97E01 Weight: 0.200000 Brand: Price: $ 17.53 |
Upper Tilt Cylinder Shaft | 1 | $ 17.53 | ||
| 16 | 48325-97E00 Tilt Cylinder Upper Bushing
SKU: 48325-97E00 Weight: 0.060000 Brand: Price: $ 3.82 |
Tilt Cylinder Upper Bushing | 4 | $ 3.82 | ||
| 17 | 55321-87J01 Aluminum Anode
SKU: 55321-87J01 Weight: 0.125000 Brand: Price: $ 7.36 |
Aluminum Anode | 1 | $ 7.36 | ||
| 18 | 09103-06281 Bolt (6x14)
SKU: 09103-06281 Weight: 0.060000 Brand: Price: $ 2.99 |
Bolt (6x14) | 1 | $ 2.99 | ||
| 19 | 09116-08122 Bolt (8x30)
SKU: 09116-08122 Weight: 0.060000 Brand: Price: $ 4.66 |
Bolt (8x30) | 2 | $ 4.66 | ||
| 20 | 09380-12002 Snap Ring
SKU: 09380-12002 Weight: 0.060000 Brand: Price: $ 1.52 |
Snap Ring | 2 | $ 1.52 | ||
| 21 | 09407-14407 Clamp (L:140)
SKU: 09407-14407 Weight: 0.060000 Brand: Price: $ 3.09 |
Clamp (L:140) | 2 | $ 3.09 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
