Suzuki DF 9.9 Parts Listings - 2008
S/N 00992F-880001 to 00992F-88XXXX

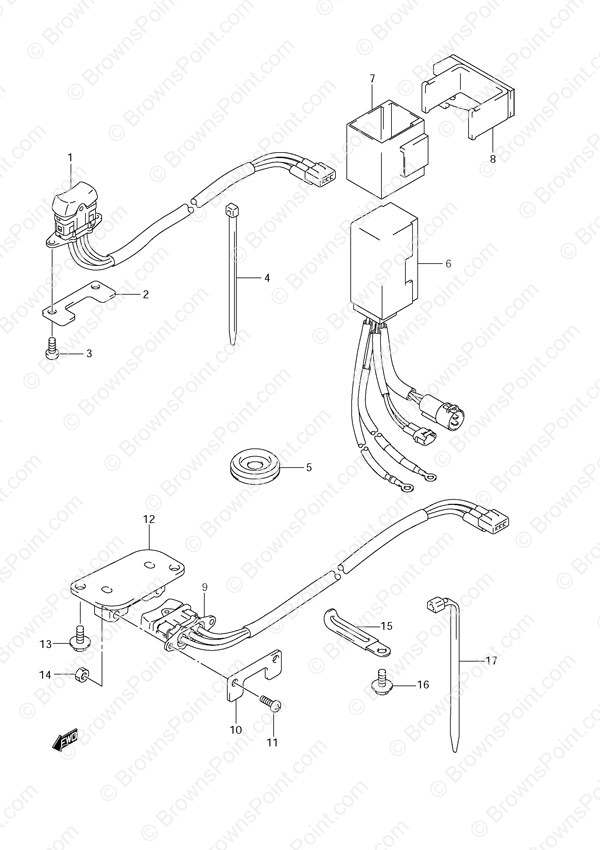

Fig. 35 - PTT Switch Power Tilt/Tiller Handle
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 37850-94JA3 Tilt Switch Assembly
SKU: 37850-94JA3 Weight: 0.250000 Brand: Price: $ 74.27 |
Tilt Switch Assembly | 1 | $ 74.27 | w/Power Tilt | |
| 2 | 37852-94JA0 PTT Switch Plate
SKU: 37852-94JA0 Weight: 0.060000 Brand: Price: $ 10.05 |
PTT Switch Plate | 1 | $ 10.05 | w/Power Tilt | |
| 3 | 09125-05046 Screw (5x12)
SKU: 09125-05046 Weight: 0.060000 Brand: Price: $ 1.82 |
Screw (5x12) | 2 | $ 1.82 | w/Power Tilt | |
| 4 | 09407-14407 Clamp (L:140)
SKU: 09407-14407 Weight: 0.060000 Brand: Price: $ 3.09 |
Clamp (L:140) | 1 | $ 3.09 | w/Power Tilt | |
| 5 | 09308-10017 Grommet
SKU: 09308-10017 Weight: 0.100000 Brand: Price: $ 4.51 |
Grommet | 1 | $ 4.51 | ||
| 6 | 38410-94JA2 PTT Relay Assembly
SKU: 38410-94JA2 Weight: 0.250000 Brand: Price: $ 150.49 |
PTT Relay Assembly | 1 | $ 150.49 | ||
| 7 | 38415-93J10 PTT Relay Holder
SKU: 38415-93J10 Weight: 0.100000 Brand: Price: $ 6.91 |
PTT Relay Holder | 1 | $ 6.91 | ||
| 8 | 38415-94JB0 PTT Relay Bracket (NLA)
SKU: 38415-94JB0 Weight: 0.100000 Brand: Price: $ 108.08 |
PTT Relay Bracket (NLA) | 1 | $ 108.08 | ||
| 9 | 37850-94JA3 Tilt Switch Assembly
SKU: 37850-94JA3 Weight: 0.250000 Brand: Price: $ 74.27 |
Tilt Switch Assembly | 1 | $ 74.27 | w/Tiller Handle | |
| 10 | 37852-94JA0 PTT Switch Plate
SKU: 37852-94JA0 Weight: 0.060000 Brand: Price: $ 10.05 |
PTT Switch Plate | 1 | $ 10.05 | w/Tiller Handle | |
| 11 | 09125-05046 Screw (5x12)
SKU: 09125-05046 Weight: 0.060000 Brand: Price: $ 1.82 |
Screw (5x12) | 2 | $ 1.82 | w/Tiller Handle | |
| 12 | 37851-94JA0 PTT Switch Bracket
SKU: 37851-94JA0 Weight: 0.100000 Brand: Price: $ 15.06 |
PTT Switch Bracket | 1 | $ 15.06 | w/Tiller Handle | |
| 13 | 29103-93J00 Bolt (6x12)
SKU: 29103-93J00 Weight: 0.060000 Brand: Price: $ 2.05 |
Bolt (6x12) | 2 | $ 2.05 | w/Tiller Handle | |
| 14 | 09140-05005 Nut
SKU: 09140-05005 Weight: 0.060000 Brand: Price: $ 2.65 |
Nut | 2 | $ 2.65 | w/Tiller Handle | |
| 15 | 29404-93J11 Clamp (L:65)
SKU: 29404-93J11 Weight: 0.060000 Brand: Price: $ 1.57 |
Clamp (L:65) | 1 | $ 1.57 | w/Tiller Handle | |
| 16 | 29103-93J00 Bolt (6x12)
SKU: 29103-93J00 Weight: 0.060000 Brand: Price: $ 2.05 |
Bolt (6x12) | 1 | $ 2.05 | w/Tiller Handle | |
| 17 | 09407-11401 Clamp (L:95)
SKU: 09407-11401 Weight: 0.060000 Brand: Price: $ 2.28 |
Clamp (L:95) | 1 | $ 2.28 | w/Tiller Handle |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
