Suzuki DF 9.9 Parts Listings - 2007
S/N 00992F-780001 to 00992F-78XXXX

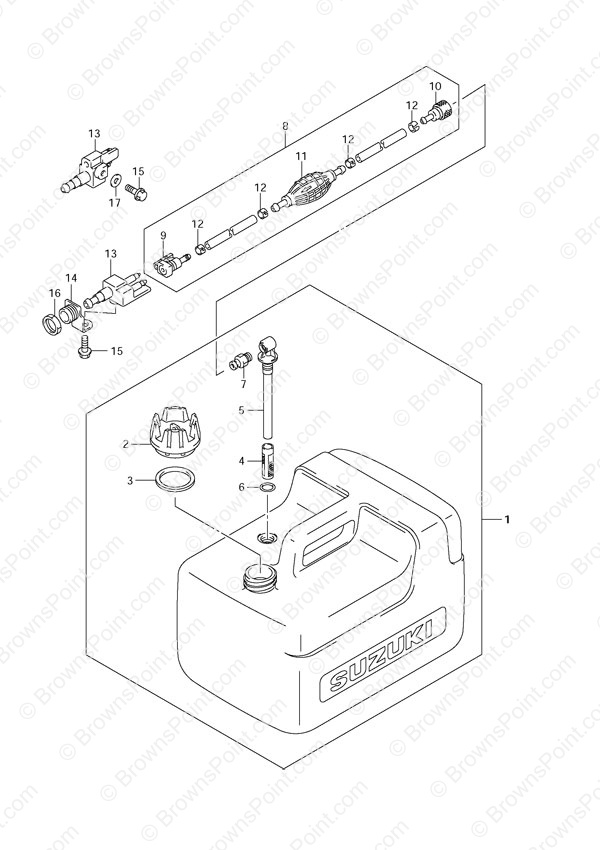

Fig. 50 - Fuel Tank
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 65000-99J01 3 Gallon Fuel Tank
SKU: 65000-99J01 Weight: 5.000000 Brand: Price: $ 133.96 |
3 Gallon Fuel Tank | 1 | $ 133.96 | ||
| 2 | 65520-99100 Fuel Tank Cap (NLA)
SKU: 65520-99100 Weight: 0.180000 Brand: Price: $ 4.15 |
Fuel Tank Cap (NLA) | 1 | $ 4.15 | ||
| 3 | 65561-95D00 Fuel Tank Cap Gasket
SKU: 65561-95D00 Weight: 0.125000 Brand: Price: $ 1.96 |
Fuel Tank Cap Gasket | 1 | $ 1.96 | ||
| 4 | 65831-95D00 Fuel Outlet Filter
SKU: 65831-95D00 Weight: 0.060000 Brand: Price: $ 13.54 |
Fuel Outlet Filter | 1 | $ 13.54 | ||
| 5 | 65890-99100 Outlet Assembly
SKU: 65890-99100 Weight: 0.250000 Brand: Price: $ 59.19 |
Outlet Assembly | 1 | $ 59.19 | ||
| 6 | 65892-95D00 Fuel Outlet O-Ring
SKU: 65892-95D00 Weight: 0.060000 Brand: Price: $ 4.66 |
Fuel Outlet O-Ring | 1 | $ 4.66 | ||
| 7 | 99105-00192 Fuel Tank Connector (11mm)
SKU: 99105-00192 Weight: 0.125000 Brand: Price: $ 11.26 |
Fuel Tank Connector (11mm) | 1 | $ 11.26 | ||
| 8 | 65700-91J23 Fuel Hose Assembly (NLA) - Use 65700-91J23-BPMS
SKU: 65700-91J23 Weight: 1.000000 Brand: Price: $ 304.93 |
Fuel Hose Assembly (NLA) - Use 65700-91J23-BPMS | 1 | $ 304.93 | ||
| 9 | 65750-87J11 Fuel Hose Connector
SKU: 65750-87J11 Weight: 0.200000 Brand: Price: $ 20.94 |
Fuel Hose Connector | 1 | $ 20.94 | ||
| 10 | 65750-98506 Fuel Hose Connector (11mm)
SKU: 65750-98506 Weight: 0.120000 Brand: Price: $ 30.19 |
Fuel Hose Connector (11mm) | 1 | $ 30.19 | ||
| 11 | 65770-94J00 Replaced by 65770-94J04
SKU: 65770-94J00 Weight: 0.500000 Brand: Price: $ 171.87 |
Replaced by 65770-94J04 | 1 | $ 171.87 | ||
| 12 | 65781-98500 Hose Clip
SKU: 65781-98500 Weight: 0.060000 Brand: Price: $ 2.90 |
Hose Clip | 4 | $ 2.90 | ||
| 13 | 65720-986L0 Fuel Connector
SKU: 65720-986L0 Weight: 0.100000 Brand: Price: $ 57.47 |
Fuel Connector | 1 | $ 57.47 | ||
| 15 | 09103-06237 Bolt (6x12.5)
SKU: 09103-06237 Weight: 0.060000 Brand: Price: $ 3.52 |
Bolt (6x12.5) | 1 | $ 3.52 | ||
| 17 | 09160-06085 Washer (6.5x15x1.0)
SKU: 09160-06085 Weight: 0.060000 Brand: Price: $ 1.36 |
Washer (6.5x15x1.0) | 1 | $ 1.36 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
