Suzuki DF 9.9 Parts Listings - 2006
S/N 00992F-680001 to 00992F-68XXXX

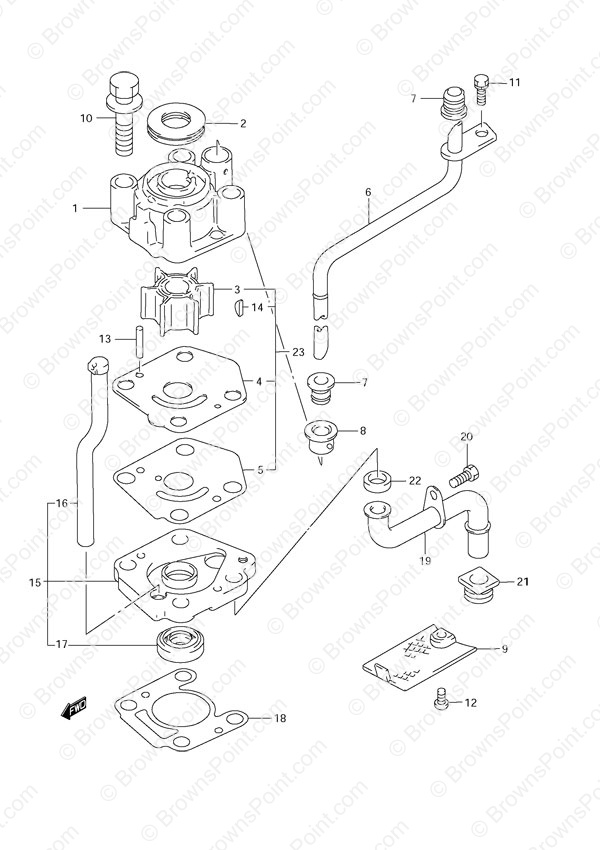

Fig. 15 - Water Pump
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 17411-93901 Water Pump Case
SKU: 17411-93901 Weight: 0.700000 Brand: Price: $ 64.78 |
Water Pump Case | 1 | $ 64.78 | ||
| 2 | 17417-93911 Water Pump Case Grommet
SKU: 17417-93911 Weight: 0.125000 Brand: Price: $ 2.33 |
Water Pump Case Grommet | 1 | $ 2.33 | ||
| 3 | 17461-939M0 Water Pump Impeller
SKU: 17461-939M0 Weight: 0.060000 Brand: Price: $ 21.72 |
Water Pump Impeller | 1 | $ 21.72 | ||
| 4 | 17471-93902 Water Pump Plate
SKU: 17471-93902 Weight: 0.060000 Brand: Price: $ 5.67 |
Water Pump Plate | 1 | $ 5.67 | ||
| 5 | 17472-93911 Water Pump Plate Gasket
SKU: 17472-93911 Weight: 0.060000 Brand: Price: $ 3.51 |
Water Pump Plate Gasket | 1 | $ 3.51 | ||
| 6-1 | 17560-94J11 Water Tube (S)
SKU: 17560-94J11 Weight: 0.500000 Brand: Price: $ 41.00 |
Water Tube (S) | 1 | $ 41.00 | w/Transom (S) | |
| 6-2 | 17560-94J01 Water Tube (L)
SKU: 17560-94J01 Weight: 0.250000 Brand: Price: $ 45.53 |
Water Tube (L) | 1 | $ 45.53 | w/Transom (L) | |
| 7 | 17563-94J00 Water Tube Grommet
SKU: 17563-94J00 Weight: 0.060000 Brand: Price: $ 1.92 |
Water Tube Grommet | 2 | $ 1.92 | ||
| 8 | 17564-93901 Water Pump Bushing
SKU: 17564-93901 Weight: 0.060000 Brand: Price: $ 2.40 |
Water Pump Bushing | 1 | $ 2.40 | ||
| 9 | 17631-92D01 Water Filter
SKU: 17631-92D01 Weight: 0.060000 Brand: Price: $ 5.05 |
Water Filter | 1 | $ 5.05 | ||
| 10 | 09116-08159 Bolt (8x55)
SKU: 09116-08159 Weight: 0.060000 Brand: Price: $ 3.89 |
Bolt (8x55) | 4 | $ 3.89 | ||
| 11 | 09116-06094 Bolt (6x15)
SKU: 09116-06094 Weight: 0.060000 Brand: Price: $ 2.28 |
Bolt (6x15) | 1 | $ 2.28 | ||
| 12 | 09125-06063 Screw (6x10)
SKU: 09125-06063 Weight: 0.060000 Brand: Price: $ 1.96 |
Screw (6x10) | 1 | $ 1.96 | ||
| 13 | 09202-04014 Pin
SKU: 09202-04014 Weight: 0.060000 Brand: Price: $ 1.52 |
Pin | 2 | $ 1.52 | ||
| 14 | 09420-03009 Key
SKU: 09420-03009 Weight: 0.060000 Brand: Price: $ 4.57 |
Key | 1 | $ 4.57 | ||
| 15 | 17450-94J00 Water Inlet Housing
SKU: 17450-94J00 Weight: 0.250000 Brand: Price: $ 65.51 |
Water Inlet Housing | 1 | $ 65.51 | ||
| 16 | 17453-93901 Water Inlet Drain
SKU: 17453-93901 Weight: 0.060000 Brand: Price: $ 4.67 |
Water Inlet Drain | 1 | $ 4.67 | ||
| 17 | 09289-12003 Oil Seal
SKU: 09289-12003 Weight: 0.060000 Brand: Price: $ 10.68 |
Oil Seal | 1 | $ 10.68 | ||
| 18 | 17452-93910 Water Inlet Hsg Gasket
SKU: 17452-93910 Weight: 0.060000 Brand: Price: $ 4.25 |
Water Inlet Hsg Gasket | 1 | $ 4.25 | ||
| 19 | 17520-94J01 Water Inlet Tube
SKU: 17520-94J01 Weight: 0.080000 Brand: Price: $ 17.73 |
Water Inlet Tube | 1 | $ 17.73 | ||
| 20 | 09100-06106 Bolt (6x9)
SKU: 09100-06106 Weight: 0.060000 Brand: Price: $ 2.16 |
Bolt (6x9) | 1 | $ 2.16 | ||
| 21 | 59317-94J00 Water Inlet Grommet
SKU: 59317-94J00 Weight: 0.060000 Brand: Price: $ 7.01 |
Water Inlet Grommet | 1 | $ 7.01 | ||
| 22 | 59317-94J10 Water Inlet Grommet
SKU: 59317-94J10 Weight: 0.060000 Brand: Price: $ 4.57 |
Water Inlet Grommet | 1 | $ 4.57 | ||
| 23 | 17400-93951 Water Pump Repair Kit DF9.9 / DF15 - DT9.9 / DT15 / DT15c
SKU: 17400-93951 Weight: 0.120000 Brand: Price: $ 26.65 |
Water Pump Repair Kit DF9.9 / DF15 - DT9.9 / DT15 / DT15c | 1 | $ 26.65 | Optional |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
