Suzuki DF 15 Parts Listings - 2004
S/N 01502F-421001 to 01502F-42XXXX

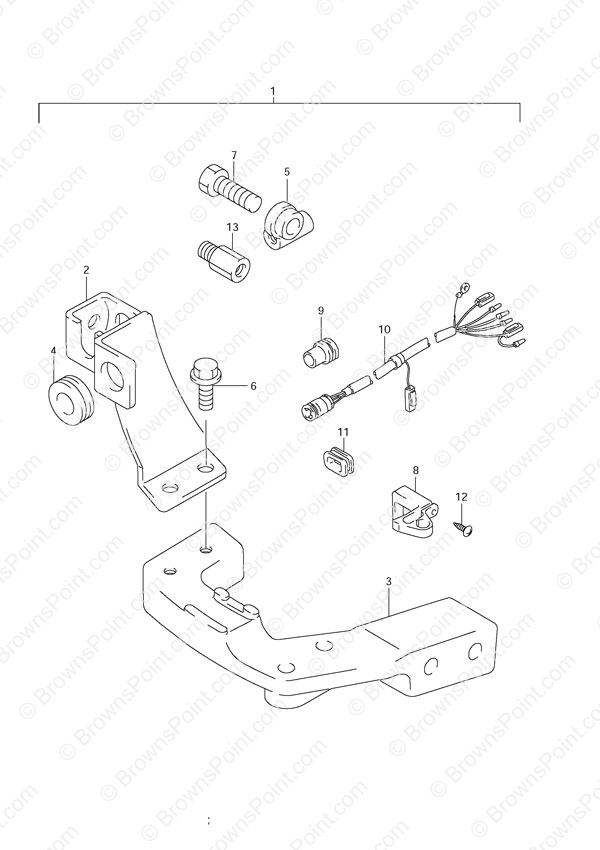

Fig. 69 - Opt: Remote Control Parts
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 67130-93E22-0EP Remote Control Parts Kit (NLA)
SKU: 67130-93E22-0EP Weight: 2.500000 Brand: Price: $ 196.95 |
Remote Control Parts Kit (NLA) | 1 | $ 196.95 | ||
| 2 | 67340-93E11-0EP Remocon Cable Holder
SKU: 67340-93E11-0EP Weight: 0.250000 Brand: Price: $ 58.76 |
Remocon Cable Holder | 1 | $ 58.76 | ||
| 3 | 43755-93E02-0EP Steering Cable End Attachment
SKU: 43755-93E02-0EP Weight: 0.500000 Brand: Price: $ 90.97 |
Steering Cable End Attachment | 1 | $ 90.97 | ||
| 4 | 09308-08013 Grommet
SKU: 09308-08013 Weight: 0.060000 Brand: Price: $ 1.26 |
Grommet | 1 | $ 1.26 | Throttle | |
| 5 | 67467-93E01 Cable Connector
SKU: 67467-93E01 Weight: 0.060000 Brand: Price: $ 7.55 |
Cable Connector | 1 | $ 7.55 | ||
| 6 | 09116-06204 Bolt (6x20)
SKU: 09116-06204 Weight: 0.060000 Brand: Price: $ 3.10 |
Bolt (6x20) | 2 | $ 3.10 | ||
| 7 | 09111-06064 Bolt (6x17)
SKU: 09111-06064 Weight: 0.060000 Brand: Price: $ 6.74 |
Bolt (6x17) | 1 | $ 6.74 | ||
| 8 | 33816-96300 Cable Clamp
SKU: 33816-96300 Weight: 0.060000 Brand: Price: $ 5.56 |
Cable Clamp | 1 | $ 5.56 | ||
| 9 | 36612-92D00 Remote Wire Harness Grommet (NLA)
SKU: 36612-92D00 Weight: 0.100000 Brand: Price: $ 7.78 |
Remote Wire Harness Grommet (NLA) | 1 | $ 7.78 | ||
| 10 | 36630-89E02 Remote Control Wire Harness
SKU: 36630-89E02 Weight: 1.000000 Brand: Price: $ 110.85 |
Remote Control Wire Harness | 1 | $ 110.85 | ||
| 11 | 63625-94300 Throttle Cable Cap
SKU: 63625-94300 Weight: 0.060000 Brand: Price: $ 3.35 |
Throttle Cable Cap | 1 | $ 3.35 | ||
| 12 | 03241-0625A SCREW
SKU: 03241-0625A Weight: 0.100000 Brand: Price: $ 2.08 |
SCREW | 1 | $ 2.08 | ||
| 13 | 41141-89E00 Steering Cable Attachment
SKU: 41141-89E00 Weight: 0.100000 Brand: Price: $ 68.18 |
Steering Cable Attachment | 1 | $ 68.18 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
