Suzuki DF 15 Parts Listings - 2004
S/N 01502F-421001 to 01502F-42XXXX

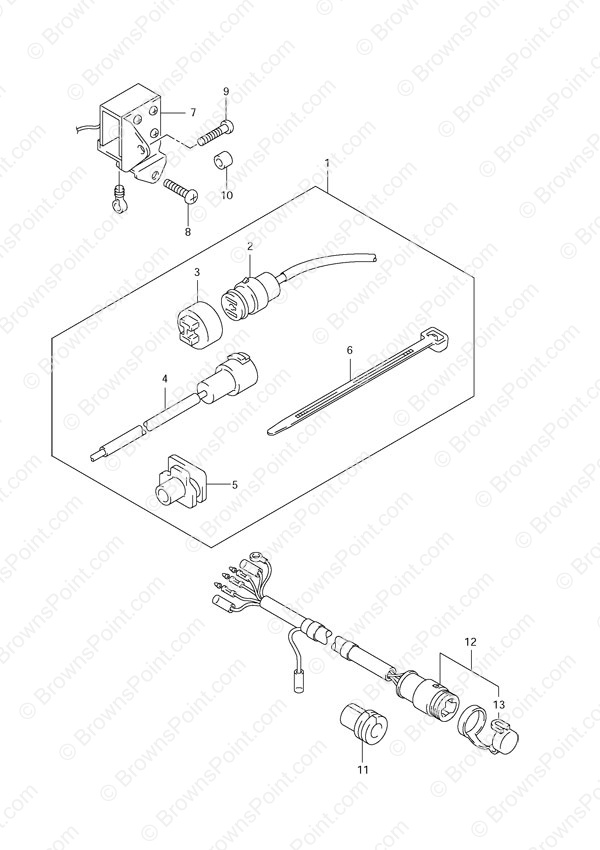

Fig. 65 - Opt: Receptacle Set
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 39600-93910 Receptacle Set (NLA)
SKU: 39600-93910 Weight: 1.000000 Brand: Price: $ 79.35 |
Receptacle Set (NLA) | 1 | $ 79.35 | ||
| 2 | 39601-95D00 Lighting Receptacle Assembly
SKU: 39601-95D00 Weight: 0.250000 Brand: Price: $ 39.79 |
Lighting Receptacle Assembly | 1 | $ 39.79 | ||
| 3 | 36634-93910 Connector Cap
SKU: 36634-93910 Weight: 0.060000 Brand: Price: $ 4.66 |
Connector Cap | 1 | $ 4.66 | ||
| 4 | 39602-93900 Lamp Cord Plug Assembly
SKU: 39602-93900 Weight: 0.500000 Brand: Price: $ 41.23 |
Lamp Cord Plug Assembly | 1 | $ 41.23 | ||
| 5 | 39603-94400 Receptacle Grommet (NLA)
SKU: 39603-94400 Weight: 0.100000 Brand: Price: $ 6.73 |
Receptacle Grommet (NLA) | 1 | $ 6.73 | ||
| 6-1 | 09407-14403 Clamp (L:125)
SKU: 09407-14403 Weight: 0.060000 Brand: Price: $ 2.27 |
Clamp (L:125) | 1 | $ 2.27 | ||
| 6-2 | 09407-25402 Clamp (L:248)
SKU: 09407-25402 Weight: 0.100000 Brand: Price: $ 4.73 |
Clamp (L:248) | 1 | $ 4.73 | ||
| 7 | 38610-93E00 Choke Solenoid Assembly
SKU: 38610-93E00 Weight: 0.100000 Brand: Price: $ 132.19 |
Choke Solenoid Assembly | 1 | $ 132.19 | ||
| 8 | 02112-36167 SCREW
SKU: 02112-36167 Weight: 0.060000 Brand: Price: $ 2.34 |
SCREW | 1 | $ 2.34 | ||
| 9 | 02112-36257 SCREW
SKU: 02112-36257 Weight: 0.060000 Brand: Price: $ 2.72 |
SCREW | 1 | $ 2.72 | ||
| 10 | 09180-06300 Spacer
SKU: 09180-06300 Weight: 0.100000 Brand: Price: $ 3.91 |
Spacer | 1 | $ 3.91 | ||
| 11 | 36612-92D00 Remote Wire Harness Grommet (NLA)
SKU: 36612-92D00 Weight: 0.100000 Brand: Price: $ 7.78 |
Remote Wire Harness Grommet (NLA) | 1 | $ 7.78 | ||
| 12 | 36630-89E02 Remote Control Wire Harness
SKU: 36630-89E02 Weight: 1.000000 Brand: Price: $ 110.85 |
Remote Control Wire Harness | 1 | $ 110.85 | ||
| 13 | 36631-94300 Cap
SKU: 36631-94300 Weight: 0.200000 Brand: Price: $ 4.20 |
Cap | 1 | $ 4.20 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
