Suzuki DF 15 Parts Listings - 2004
S/N 01502F-421001 to 01502F-42XXXX

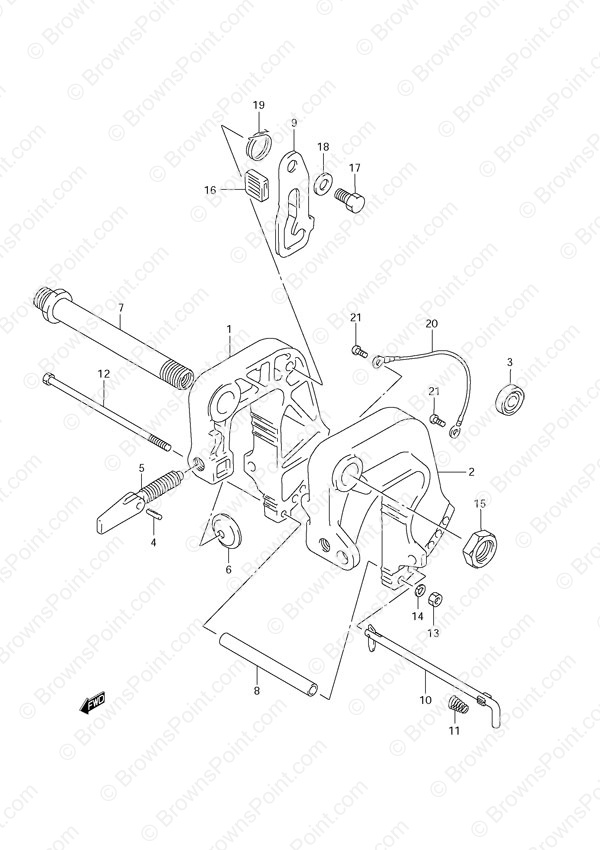

Fig. 36 - Clamp Bracket
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 41111-93E02-0EP Starboard Clamp Bracket
SKU: 41111-93E02-0EP Weight: 10.000000 Brand: Price: $ 192.62 |
Starboard Clamp Bracket | 1 | $ 192.62 | ||
| 2 | 41121-89E53-0EP Port Clamp Bracket (NLA)
SKU: 41121-89E53-0EP Weight: 10.000000 Brand: Price: $ 145.05 |
Port Clamp Bracket (NLA) | 1 | $ 145.05 | ||
| 4 | 09205-06007 Spring Pin (6x25)
SKU: 09205-06007 Weight: 0.080000 Brand: Price: $ 2.28 |
Spring Pin (6x25) | 2 | $ 2.28 | ||
| 5 | 41210-89E11 Clamp Screw Assembly
SKU: 41210-89E11 Weight: 0.280000 Brand: Price: $ 61.86 |
Clamp Screw Assembly | 2 | $ 61.86 | ||
| 6 | 41213-94J01 Clamp Plate
SKU: 41213-94J01 Weight: 0.060000 Brand: Price: $ 3.70 |
Clamp Plate | 2 | $ 3.70 | ||
| 7 | 41130-90L00 Clamp Bracket Shaft
SKU: 41130-90L00 Weight: 0.800000 Brand: Price: $ 132.19 |
Clamp Bracket Shaft | 1 | $ 132.19 | ||
| 8 | 09180-06163 Spacer
SKU: 09180-06163 Weight: 0.100000 Brand: Price: $ 4.32 |
Spacer | 1 | $ 4.32 | ||
| 9 | 41222-93E1V Tilt Lock Arm
SKU: 41222-93E1V Weight: 0.260000 Brand: Price: $ 25.86 |
Tilt Lock Arm | 1 | $ 25.86 | ||
| 10 | 45420-93E02 Tilt Lock Pin
SKU: 45420-93E02 Weight: 0.200000 Brand: Price: $ 39.41 |
Tilt Lock Pin | 1 | $ 39.41 | ||
| 11 | 09441-17001 Spring
SKU: 09441-17001 Weight: 0.060000 Brand: Price: $ 1.78 |
Spring | 1 | $ 1.78 | ||
| 12 | 09100-06177 Bolt (6x140)
SKU: 09100-06177 Weight: 0.100000 Brand: Price: $ 5.54 |
Bolt (6x140) | 1 | $ 5.54 | ||
| 13 | 29141-93J00 Nut (6mm)
SKU: 29141-93J00 Weight: 0.060000 Brand: Price: $ 1.80 |
Nut (6mm) | 1 | $ 1.80 | ||
| 14 | 09162-06006 Lock Washer
SKU: 09162-06006 Weight: 0.060000 Brand: Price: $ 1.49 |
Lock Washer | 1 | $ 1.49 | ||
| 15 | 09159-22006 Nut
SKU: 09159-22006 Weight: 0.250000 Brand: Price: $ 25.75 |
Nut | 1 | $ 25.75 | ||
| 16 | 41225-94400 Tilt Lock Arm Rubber
SKU: 41225-94400 Weight: 0.060000 Brand: Price: $ 2.88 |
Tilt Lock Arm Rubber | 1 | $ 2.88 | ||
| 17 | 09111-10067 Bolt (10x20.4)
SKU: 09111-10067 Weight: 0.060000 Brand: Price: $ 6.13 |
Bolt (10x20.4) | 2 | $ 6.13 | ||
| 18 | 09160-10082 Washer (10.5x19x2.0)
SKU: 09160-10082 Weight: 0.060000 Brand: Price: $ 1.63 |
Washer (10.5x19x2.0) | 3 | $ 1.63 | ||
| 19 | 41224-94J00 Tilt Lock Spring
SKU: 41224-94J00 Weight: 0.200000 Brand: Price: $ 5.52 |
Tilt Lock Spring | 1 | $ 5.52 | ||
| 20 | 36894-95201 Wire Lead (L:165)
SKU: 36894-95201 Weight: 0.060000 Brand: Price: $ 12.07 |
Wire Lead (L:165) | 1 | $ 12.07 | Clamp to Swivel | |
| 21 | 09125-05050 Screw (5x8)
SKU: 09125-05050 Weight: 0.060000 Brand: Price: $ 1.88 |
Screw (5x8) | 2 | $ 1.88 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
