Suzuki DF 15 Parts Listings - 2004
S/N 01502F-421001 to 01502F-42XXXX

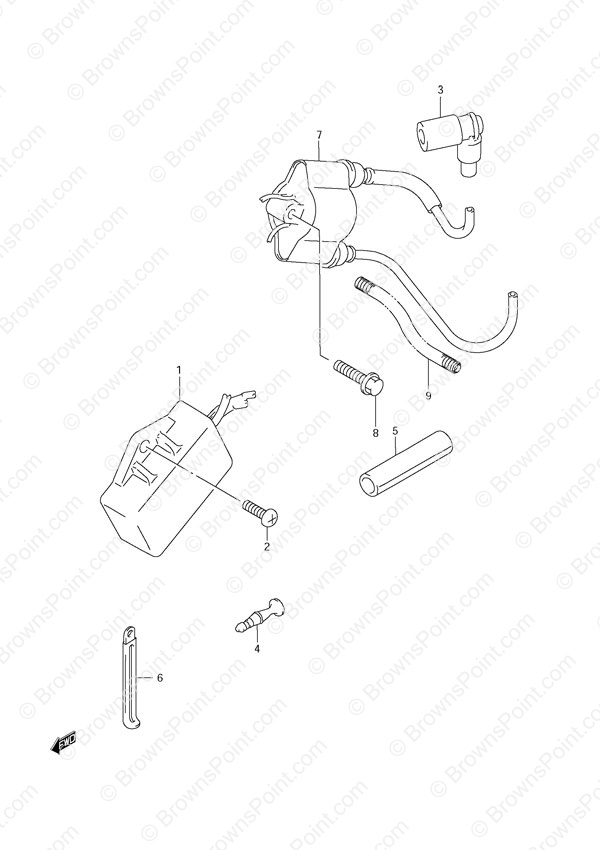

Fig. 29 - Ignition Coil
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 32900-93E50 CDI Unit
SKU: 32900-93E50 Weight: 5.000000 Brand: Price: $ 395.17 |
CDI Unit | 1 | $ 395.17 | ||
| 2 | 09132-06018 Screw (6x16) (NLA)
SKU: 09132-06018 Weight: 0.100000 Brand: Price: $ 1.58 |
Screw (6x16) (NLA) | 2 | $ 1.58 | ||
| 3 | 33510-93E00 Spark Plug Cap
SKU: 33510-93E00 Weight: 0.250000 Brand: Price: $ 23.51 |
Spark Plug Cap | 2 | $ 23.51 | ||
| 4 | 36615-96300 Resin Terminal
SKU: 36615-96300 Weight: 0.060000 Brand: Price: $ 1.31 |
Resin Terminal | 1 | $ 1.31 | Optional | |
| 5 | 33834-87E00 Protector (NLA)
SKU: 33834-87E00 Weight: 0.100000 Brand: Price: $ 1.57 |
Protector (NLA) | 1 | $ 1.57 | ||
| 7 | 33410-93E10 Ignition Coil Assembly
SKU: 33410-93E10 Weight: 0.500000 Brand: Price: $ 169.36 |
Ignition Coil Assembly | 1 | $ 169.36 | ||
| 8 | 01550-06307 BOLT
SKU: 01550-06307 Weight: 0.060000 Brand: Price: $ 2.74 |
BOLT | 2 | $ 2.74 | ||
| 9 | 16919-93E00 Hose Protector
SKU: 16919-93E00 Weight: 0.250000 Brand: Price: $ 3.77 |
Hose Protector | 1 | $ 3.77 | L:560->50 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
