Suzuki DF 15 Parts Listings - 2004
S/N 01502F-421001 to 01502F-42XXXX

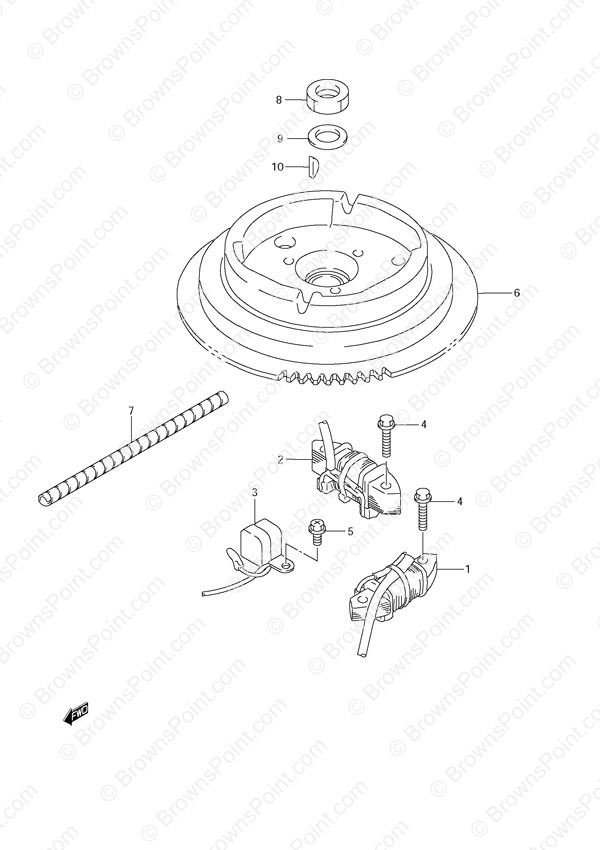

Fig. 27 - Magneto
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 32120-93E20 Battery Charge Coil
SKU: 32120-93E20 Weight: 0.440000 Brand: Price: $ 101.39 |
Battery Charge Coil | 1 | $ 101.39 | ||
| 2 | 32140-93E10 Primary Coil
SKU: 32140-93E10 Weight: 0.340000 Brand: Price: $ 79.99 |
Primary Coil | 1 | $ 79.99 | ||
| 3 | 32160-93E20 Ignition Timing Coil
SKU: 32160-93E20 Weight: 0.100000 Brand: Price: $ 118.36 |
Ignition Timing Coil | 1 | $ 118.36 | ||
| 4 | 01547-0630B BOLT
SKU: 01547-0630B Weight: 0.250000 Brand: Price: $ 2.74 |
BOLT | 4 | $ 2.74 | ||
| 5 | 02162-05127 Screw (NLA)
SKU: 02162-05127 Weight: 0.100000 Brand: Price: $ 1.01 |
Screw (NLA) | 2 | $ 1.01 | ||
| 6 | 32102-93E40 Flywheel (NLA)
SKU: 32102-93E40 Weight: 8.440000 Brand: Price: $ 375.50 |
Flywheel (NLA) | 1 | $ 375.50 | ||
| 7-1 | 33833-91J00 Tube (6x8x250)
SKU: 33833-91J00 Weight: 0.125000 Brand: Price: $ 7.13 |
Tube (6x8x250) | 1 | $ 7.13 | w/Electric Starter L:250->150 | |
| 7-2 | 33833-91J00 Tube (6x8x250)
SKU: 33833-91J00 Weight: 0.125000 Brand: Price: $ 7.13 |
Tube (6x8x250) | 1 | $ 7.13 | w/Manual Starter L:250->100 | |
| 8 | 09140-14008 Nut 14mm
SKU: 09140-14008 Weight: 0.125000 Brand: Price: $ 2.32 |
Nut 14mm | 1 | $ 2.32 | ||
| 9 | 09160-15047 Washer (NLA)
SKU: 09160-15047 Weight: 0.100000 Brand: Price: $ 2.06 |
Washer (NLA) | 1 | $ 2.06 | ||
| 10 | 09420-04008 Key
SKU: 09420-04008 Weight: 0.060000 Brand: Price: $ 3.48 |
Key | 1 | $ 3.48 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
