Suzuki DF 15 Parts Listings - 2004
S/N 01502F-421001 to 01502F-42XXXX

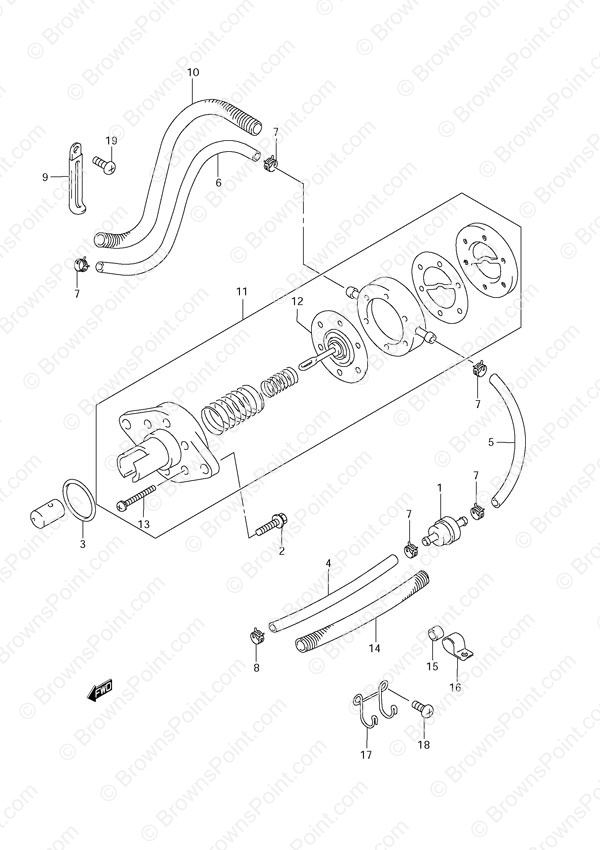

Fig. 13 - Fuel Pump
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 15410-98500 Fuel Filter
SKU: 15410-98500 Weight: 0.060000 Brand: Price: $ 10.74 |
Fuel Filter | 1 | $ 10.74 | ||
| 2 | 01550-06257 BOLT
SKU: 01550-06257 Weight: 0.060000 Brand: Price: $ 2.33 |
BOLT | 2 | $ 2.33 | ||
| 3 | 09280-26005 O-Ring
SKU: 09280-26005 Weight: 0.060000 Brand: Price: $ 2.33 |
O-Ring | 1 | $ 2.33 | ||
| 4 | 09359-50823-600 Hose
SKU: 09359-50823-600 Weight: 0.250000 Brand: Price: $ 8.96 |
Hose | 1 | $ 8.96 | Connector to Filter L:600->470 | |
| 5 | 15211-91J00-060 Fuel Hose
SKU: 15211-91J00-060 Weight: 0.250000 Brand: Price: $ 1.50 |
Fuel Hose | 1 | $ 1.50 | Filter to Pump | |
| 6 | 15211-91J00-640 Fuel Hose
SKU: 15211-91J00-640 Weight: 0.100000 Brand: Price: $ 7.06 |
Fuel Hose | 1 | $ 7.06 | Pump to Carb | |
| 7 | 09401-08411 Clip
SKU: 09401-08411 Weight: 0.060000 Brand: Price: $ 1.78 |
Clip | 5 | $ 1.78 | ||
| 8 | 09401-10409 Clip
SKU: 09401-10409 Weight: 0.060000 Brand: Price: $ 2.27 |
Clip | 1 | $ 2.27 | ||
| 10 | 16919-93E00 Hose Protector
SKU: 16919-93E00 Weight: 0.250000 Brand: Price: $ 3.77 |
Hose Protector | 1 | $ 3.77 | ||
| 11 | 15100-93E02 Fuel Pump Assembly
SKU: 15100-93E02 Weight: 0.600000 Brand: Price: $ 149.85 |
Fuel Pump Assembly | 1 | $ 149.85 | ||
| 12 | 15170-99E1V Fuel Pump Diaphragm Set
SKU: 15170-99E1V Weight: 0.060000 Brand: Price: $ 69.47 |
Fuel Pump Diaphragm Set | 1 | $ 69.47 | ||
| 13 | 15251-93E01 Screw
SKU: 15251-93E01 Weight: 0.060000 Brand: Price: $ 2.53 |
Screw | 6 | $ 2.53 | ||
| 14 | 16919-93E00 Hose Protector
SKU: 16919-93E00 Weight: 0.250000 Brand: Price: $ 3.77 |
Hose Protector | 1 | $ 3.77 | L:560->400 | |
| 16 | 09403-14204 Clamp (NLA)
SKU: 09403-14204 Weight: 0.100000 Brand: Price: $ 1.28 |
Clamp (NLA) | 1 | $ 1.28 | ||
| 17 | 65792-93E10 Fuel Hose Clamp
SKU: 65792-93E10 Weight: 0.100000 Brand: Price: $ 13.76 |
Fuel Hose Clamp | 1 | $ 13.76 | ||
| 18 | 09125-06069 Screw (6x12)
SKU: 09125-06069 Weight: 0.060000 Brand: Price: $ 2.09 |
Screw (6x12) | 2 | $ 2.09 | ||
| 19 | 02112-06127 SCREW
SKU: 02112-06127 Weight: 0.060000 Brand: Price: $ 1.85 |
SCREW | 1 | $ 1.85 |
