Suzuki DF 15 Parts Listings - 2004
S/N 01502F-421001 to 01502F-42XXXX

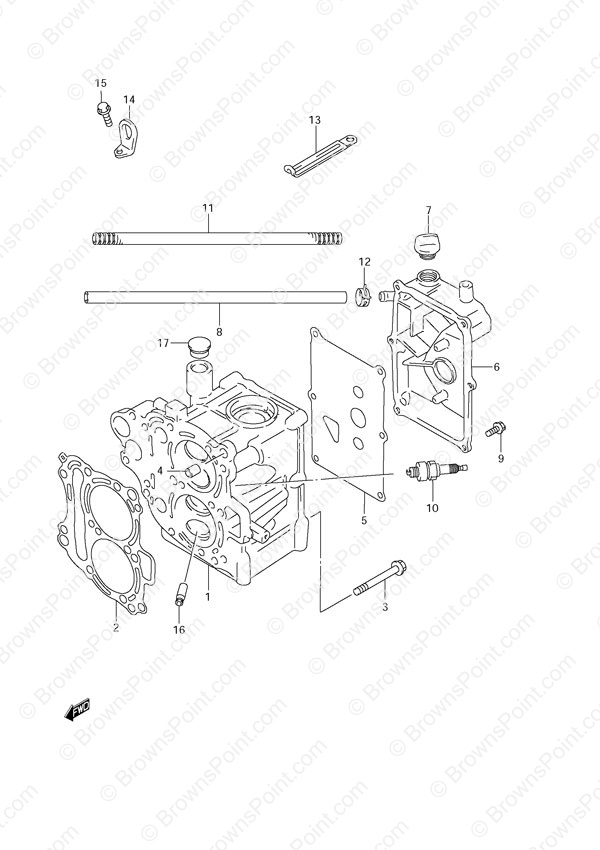

Fig. 1 - Cylinder Head
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 11110-93E11-0EP Cylinder Head (NLA)
SKU: 11110-93E11-0EP Weight: 0.100000 Brand: Price: $ 713.89 |
Cylinder Head (NLA) | 1 | $ 713.89 | ||
| 2 | 11141-93E20 Cylinder Head Gasket
SKU: 11141-93E20 Weight: 0.100000 Brand: Price: $ 24.01 |
Cylinder Head Gasket | 1 | $ 24.01 | ||
| 3 | 09116-08110 Bolt (8x65) (NLA)
SKU: 09116-08110 Weight: 0.100000 Brand: Price: $ 4.59 |
Bolt (8x65) (NLA) | 8 | $ 4.59 | ||
| 4 | 04211-11129 11 X 12 DOWEL P
SKU: 04211-11129 Weight: 0.060000 Brand: Price: $ 1.78 |
11 X 12 DOWEL P | 2 | $ 1.78 | ||
| 5 | 11162-93E01 Cylinder Head Cover Gasket
SKU: 11162-93E01 Weight: 0.060000 Brand: Price: $ 12.66 |
Cylinder Head Cover Gasket | 1 | $ 12.66 | ||
| 6 | 11170-93E00-0EP Cylinder Head Cover
SKU: 11170-93E00-0EP Weight: 0.100000 Brand: Price: $ 109.06 |
Cylinder Head Cover | 1 | $ 109.06 | ||
| 7 | 09200-20810 Oil Filler Cap
SKU: 09200-20810 Weight: 0.125000 Brand: Price: $ 5.14 |
Oil Filler Cap | 1 | $ 5.14 | ||
| 8 | 11196-94J00-320 Hose
SKU: 11196-94J00-320 Weight: 0.250000 Brand: Price: $ 5.90 |
Hose | 1 | $ 5.90 | ||
| 9 | 01550-06167 BOLT
SKU: 01550-06167 Weight: 0.060000 Brand: Price: $ 2.33 |
BOLT | 6 | $ 2.33 | ||
| 10 | 09482-00446 NGK DCPR6E Spark Plug
SKU: 09482-00446 Weight: 0.187500 Brand: Price: $ 3.57 |
NGK DCPR6E Spark Plug | 2 | $ 3.57 | ||
| 11 | 16919-94J20-280 Hose Protector
SKU: 16919-94J20-280 Weight: 0.100000 Brand: Price: $ 2.17 |
Hose Protector | 1 | $ 2.17 | ||
| 12 | 09401-12405 Clip
SKU: 09401-12405 Weight: 0.100000 Brand: Price: $ 2.27 |
Clip | 2 | $ 2.27 | ||
| 13 | 09404-08207 Clamp (L:97)
SKU: 09404-08207 Weight: 0.100000 Brand: Price: $ 2.37 |
Clamp (L:97) | 1 | $ 2.37 | ||
| 14 | 11291-91B50 Engine Hook
SKU: 11291-91B50 Weight: 0.400000 Brand: Price: $ 9.28 |
Engine Hook | 1 | $ 9.28 | Optional | |
| 15 | 01550-08207 BOLT
SKU: 01550-08207 Weight: 0.060000 Brand: Price: $ 2.74 |
BOLT | 1 | $ 2.74 | Optional | |
| 16 | 11115-93E00-001 Valve Guide (OS:0.30)
SKU: 11115-93E00-001 Weight: 0.060000 Brand: Price: $ 23.71 |
Valve Guide (OS:0.30) | 4 | $ 23.71 | Optional | |
| 17 | 09250-10006 CAP
SKU: 09250-10006 Weight: 0.100000 Brand: Price: $ 2.06 |
CAP | 1 | $ 2.06 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
