Suzuki DF 9.9 Parts Listings - 2004
S/N 00992F-421001 to 00992F-42XXXX

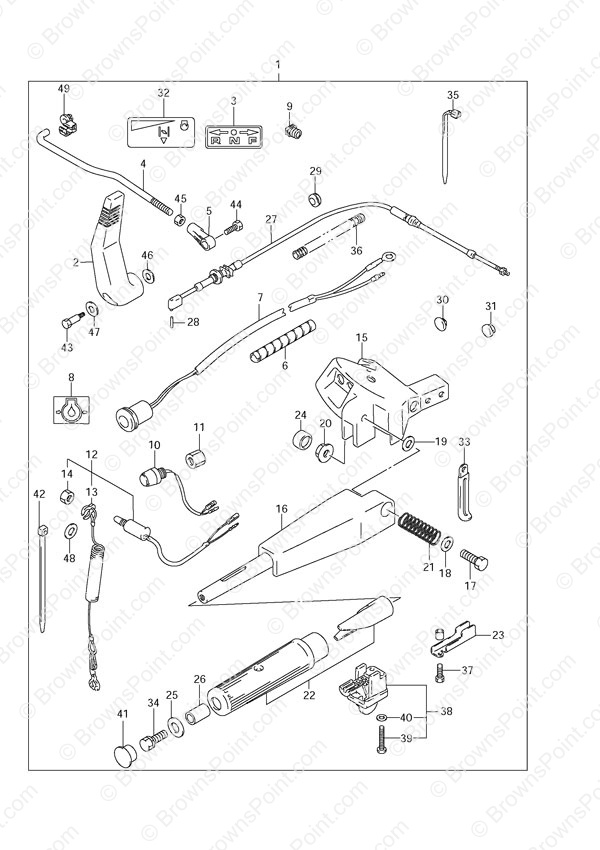

Fig. 66 - Opt: Tiller Handle
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 63001-93E32-0EP Tiller Handle Kit
SKU: 63001-93E32-0EP Weight: 10.000000 Brand: Price: $ 436.63 |
Tiller Handle Kit | 1 | $ 436.63 | ||
| 2 | 21110-93E03 Clutch Lever
SKU: 21110-93E03 Weight: 0.140000 Brand: Price: $ 17.63 |
Clutch Lever | 1 | $ 17.63 | ||
| 3 | 21131-94J00-YAY Clutch Shift Mark
SKU: 21131-94J00-YAY Weight: 0.060000 Brand: Price: $ 1.46 |
Clutch Shift Mark | 1 | $ 1.46 | ||
| 4 | 23115-93E10 Clutch Lever Link
SKU: 23115-93E10 Weight: 0.250000 Brand: Price: $ 11.89 |
Clutch Lever Link | 1 | $ 11.89 | ||
| 5 | 23312-94JL0 Clutch Connector
SKU: 23312-94JL0 Weight: 0.060000 Brand: Price: $ 8.83 |
Clutch Connector | 1 | $ 8.83 | ||
| 6 | 33834-93E00 Protector (NLA)
SKU: 33834-93E00 Weight: 0.100000 Brand: Price: $ 2.23 |
Protector (NLA) | 1 | $ 2.23 | ||
| 7 | 36360-89E10 Oil & Water Warning Lamp
SKU: 36360-89E10 Weight: 0.250000 Brand: Price: $ 53.41 |
Oil & Water Warning Lamp | 1 | $ 53.41 | ||
| 8 | 36367-93E00-019 Oil Level Label (NLA)
SKU: 36367-93E00-019 Weight: 0.060000 Brand: Price: $ 2.03 |
Oil Level Label (NLA) | 1 | $ 2.03 | ||
| 9 | 36656-93E00 Switch Lead Grommet (NLA)
SKU: 36656-93E00 Weight: 0.100000 Brand: Price: $ 3.89 |
Switch Lead Grommet (NLA) | 1 | $ 3.89 | ||
| 10 | 37161-89E13 Start Switch Assembly
SKU: 37161-89E13 Weight: 0.250000 Brand: Price: $ 36.22 |
Start Switch Assembly | 1 | $ 36.22 | ||
| 11 | 09159-14014 Nut (10mm)
SKU: 09159-14014 Weight: 0.060000 Brand: Price: $ 3.98 |
Nut (10mm) | 1 | $ 3.98 | ||
| 12 | 37830-93E04 Emergency Switch Assembly
SKU: 37830-93E04 Weight: 0.220000 Brand: Price: $ 48.29 |
Emergency Switch Assembly | 1 | $ 48.29 | ||
| 13 | 37823-92E02 Stop Switch Lanyard
SKU: 37823-92E02 Weight: 0.250000 Brand: Price: $ 19.68 |
Stop Switch Lanyard | 1 | $ 19.68 | ||
| 14 | 37826-92E00 Nut
SKU: 37826-92E00 Weight: 0.060000 Brand: Price: $ 5.77 |
Nut | 1 | $ 5.77 | ||
| 15 | 43761-93E11-0EP Handle Bracket
SKU: 43761-93E11-0EP Weight: 1.300000 Brand: Price: $ 197.01 |
Handle Bracket | 1 | $ 197.01 | ||
| 16 | 63111-93E10-0EP Tiller Handle
SKU: 63111-93E10-0EP Weight: 1.020000 Brand: Price: $ 161.20 |
Tiller Handle | 1 | $ 161.20 | ||
| 17 | 09100-10208 Bolt (10x70)
SKU: 09100-10208 Weight: 0.200000 Brand: Price: $ 11.13 |
Bolt (10x70) | 1 | $ 11.13 | ||
| 18 | 09160-10097 Washer (10.5x22x2.5)
SKU: 09160-10097 Weight: 0.060000 Brand: Price: $ 2.36 |
Washer (10.5x22x2.5) | 2 | $ 2.36 | ||
| 19 | 09161-10012 Washer (10.5x32x1.5) (NLA)
SKU: 09161-10012 Weight: 0.060000 Brand: Price: $ 2.12 |
Washer (10.5x32x1.5) (NLA) | 1 | $ 2.12 | ||
| 20 | 09159-10050 Nut
SKU: 09159-10050 Weight: 0.060000 Brand: Price: $ 2.59 |
Nut | 1 | $ 2.59 | ||
| 21 | 09440-22008 Spring
SKU: 09440-22008 Weight: 0.060000 Brand: Price: $ 11.89 |
Spring | 1 | $ 11.89 | ||
| 22 | 63200-93E00 Handle Grip Assembly
SKU: 63200-93E00 Weight: 0.460000 Brand: Price: $ 41.87 |
Handle Grip Assembly | 1 | $ 41.87 | ||
| 23 | 63125-93E01 Tiller Handle Stopper
SKU: 63125-93E01 Weight: 1.400000 Brand: Price: $ 8.86 |
Tiller Handle Stopper | 1 | $ 8.86 | ||
| 24 | 09251-09008 Cap
SKU: 09251-09008 Weight: 0.060000 Brand: Price: $ 3.56 |
Cap | 1 | $ 3.56 | ||
| 25 | 09160-08081 Washer (8.5x23x1.5)
SKU: 09160-08081 Weight: 0.060000 Brand: Price: $ 2.68 |
Washer (8.5x23x1.5) | 1 | $ 2.68 | ||
| 26 | 09180-08173 Spacer
SKU: 09180-08173 Weight: 0.060000 Brand: Price: $ 7.57 |
Spacer | 1 | $ 7.57 | ||
| 27 | 63610-93E20 Throttle Cable Assembly
SKU: 63610-93E20 Weight: 0.260000 Brand: Price: $ 92.51 |
Throttle Cable Assembly | 1 | $ 92.51 | ||
| 28 | 63216-93E00 Throttle Cable Pin
SKU: 63216-93E00 Weight: 0.060000 Brand: Price: $ 3.68 |
Throttle Cable Pin | 1 | $ 3.68 | ||
| 30 | 09250-12006 Cap
SKU: 09250-12006 Weight: 0.060000 Brand: Price: $ 2.00 |
Cap | 1 | $ 2.00 | ||
| 31 | 09250-15010 Plug
SKU: 09250-15010 Weight: 0.060000 Brand: Price: $ 1.88 |
Plug | 1 | $ 1.88 | ||
| 32 | 69714-93E11 Engine Start Mark
SKU: 69714-93E11 Weight: 0.060000 Brand: Price: $ 3.91 |
Engine Start Mark | 1 | $ 3.91 | ||
| 34 | 09117-08071 Bolt (8x35)
SKU: 09117-08071 Weight: 0.060000 Brand: Price: $ 6.05 |
Bolt (8x35) | 1 | $ 6.05 | ||
| 35 | 09407-14403 Clamp (L:125)
SKU: 09407-14403 Weight: 0.060000 Brand: Price: $ 2.27 |
Clamp (L:125) | 1 | $ 2.27 | ||
| 36 | 63615-93E00 Throttle Cable Tube
SKU: 63615-93E00 Weight: 0.060000 Brand: Price: $ 3.77 |
Throttle Cable Tube | 1 | $ 3.77 | ||
| 37 | 09100-06131 Bolt (6x12)
SKU: 09100-06131 Weight: 0.060000 Brand: Price: $ 2.10 |
Bolt (6x12) | 1 | $ 2.10 | ||
| 38 | 63240-93E00 Handle Grip Adjuster
SKU: 63240-93E00 Weight: 0.120000 Brand: Price: $ 41.00 |
Handle Grip Adjuster | 1 | $ 41.00 | ||
| 39 | 63247-93E00 Screw (NLA)
SKU: 63247-93E00 Weight: 0.100000 Brand: Price: $ 2.69 |
Screw (NLA) | 2 | $ 2.69 | ||
| 40 | 63248-93E10 Washer (NLA)
SKU: 63248-93E10 Weight: 0.100000 Brand: Price: $ 1.98 |
Washer (NLA) | 2 | $ 1.98 | ||
| 41 | 63213-94400 Stop Switch Cap
SKU: 63213-94400 Weight: 0.060000 Brand: Price: $ 7.13 |
Stop Switch Cap | 1 | $ 7.13 | ||
| 42 | 09407-14407 Clamp (L:140)
SKU: 09407-14407 Weight: 0.060000 Brand: Price: $ 3.09 |
Clamp (L:140) | 1 | $ 3.09 | ||
| 43 | 09111-06069 Bolt (6x28.8)
SKU: 09111-06069 Weight: 0.060000 Brand: Price: $ 10.55 |
Bolt (6x28.8) | 1 | $ 10.55 | ||
| 44 | 09125-06069 Screw (6x12)
SKU: 09125-06069 Weight: 0.060000 Brand: Price: $ 2.09 |
Screw (6x12) | 2 | $ 2.09 | ||
| 45 | 09140-06020 Nut (6mm)
SKU: 09140-06020 Weight: 0.060000 Brand: Price: $ 1.82 |
Nut (6mm) | 1 | $ 1.82 | ||
| 46 | 09160-06082 Washer (6.5x13x1.0)
SKU: 09160-06082 Weight: 0.060000 Brand: Price: $ 1.44 |
Washer (6.5x13x1.0) | 1 | $ 1.44 | ||
| 47 | 09160-08045 Washer (8x22x1.0)
SKU: 09160-08045 Weight: 0.060000 Brand: Price: $ 2.09 |
Washer (8x22x1.0) | 1 | $ 2.09 | ||
| 48 | 09160-12067 Washer (12.5x23x1.0)
SKU: 09160-12067 Weight: 0.060000 Brand: Price: $ 3.13 |
Washer (12.5x23x1.0) | 1 | $ 3.13 | ||
| 49 | 09209-09007 Connector
SKU: 09209-09007 Weight: 0.060000 Brand: Price: $ 3.21 |
Connector | 1 | $ 3.21 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
