Suzuki DF 9.9 Parts Listings - 2004
S/N 00992F-421001 to 00992F-42XXXX

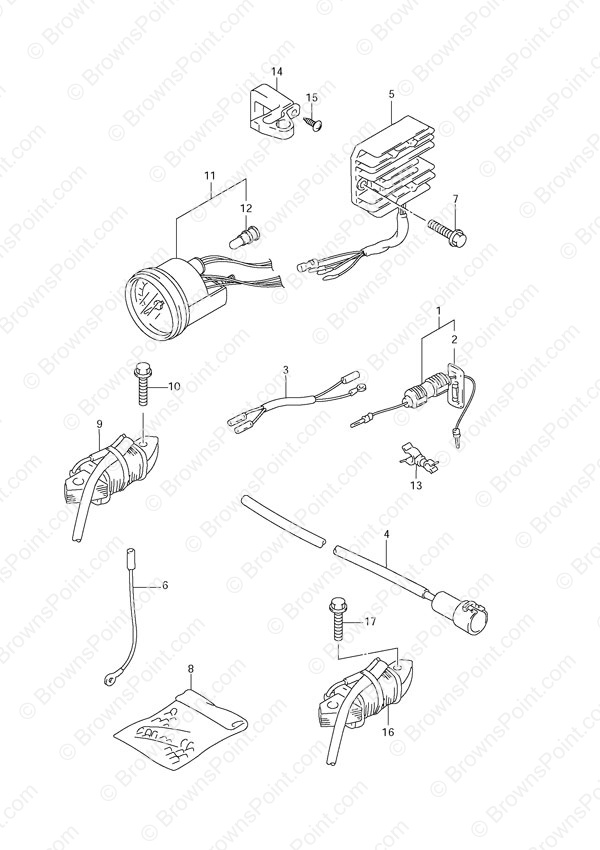

Fig. 61 - Opt: Electrical
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 36740-95253 Fuse Case Assembly
SKU: 36740-95253 Weight: 0.100000 Brand: Price: $ 18.47 |
Fuse Case Assembly | 1 | $ 18.47 | w/Manual Starter | |
| 2 | 09481-20001 20 Amp Fuse
SKU: 09481-20001 Weight: 0.060000 Brand: Price: $ 2.54 |
20 Amp Fuse | 1 | $ 2.54 | ||
| 3 | 36895-95D00 Lead (NLA)
SKU: 36895-95D00 Weight: 0.100000 Brand: Price: $ 7.85 |
Lead (NLA) | 1 | $ 7.85 | ||
| 4 | 39602-93900 Lamp Cord Plug Assembly
SKU: 39602-93900 Weight: 0.500000 Brand: Price: $ 41.23 |
Lamp Cord Plug Assembly | 1 | $ 41.23 | ||
| 5 | 32800-94620 Rectifier & Regulator
SKU: 32800-94620 Weight: 0.500000 Brand: Price: $ 133.77 |
Rectifier & Regulator | 1 | $ 133.77 | ||
| 6 | 37801-98300 Lead (NLA)
SKU: 37801-98300 Weight: 0.100000 Brand: Price: $ 3.65 |
Lead (NLA) | 1 | $ 3.65 | ||
| 7 | 01550-06207 BOLT
SKU: 01550-06207 Weight: 0.060000 Brand: Price: $ 2.33 |
BOLT | 2 | $ 2.33 | ||
| 8 | 36990-87D00 Terminal & Sleeve Set
SKU: 36990-87D00 Weight: 0.100000 Brand: Price: $ 18.47 |
Terminal & Sleeve Set | 1 | $ 18.47 | ||
| 9 | 32120-93E30 Battery Charge Coil (NLA)
SKU: 32120-93E30 Weight: 0.100000 Brand: Price: $ 61.72 |
Battery Charge Coil (NLA) | 1 | $ 61.72 | ||
| 10 | 01547-0630B BOLT
SKU: 01547-0630B Weight: 0.250000 Brand: Price: $ 2.74 |
BOLT | 2 | $ 2.74 | ||
| 11 | 34200-92E02 Tachometer (NLA)
SKU: 34200-92E02 Weight: 1.000000 Brand: Price: $ 116.95 |
Tachometer (NLA) | 1 | $ 116.95 | ||
| 12 | 09471-12179 Bulb (Red)
SKU: 09471-12179 Weight: 0.060000 Brand: Price: $ 6.52 |
Bulb (Red) | 1 | $ 6.52 | ||
| 13 | 09408-00168 Clamp (NLA)
SKU: 09408-00168 Weight: 0.100000 Brand: Price: $ 2.79 |
Clamp (NLA) | 1 | $ 2.79 | ||
| 14 | 33816-96300 Cable Clamp
SKU: 33816-96300 Weight: 0.060000 Brand: Price: $ 5.56 |
Cable Clamp | 1 | $ 5.56 | ||
| 15 | 03241-0625A SCREW
SKU: 03241-0625A Weight: 0.100000 Brand: Price: $ 2.08 |
SCREW | 1 | $ 2.08 | ||
| 16 | 32120-93E20 Battery Charge Coil
SKU: 32120-93E20 Weight: 0.440000 Brand: Price: $ 101.39 |
Battery Charge Coil | 1 | $ 101.39 | ||
| 17 | 01547-0630B BOLT
SKU: 01547-0630B Weight: 0.250000 Brand: Price: $ 2.74 |
BOLT | 2 | $ 2.74 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
