Suzuki DF 9.9 Parts Listings - 2004
S/N 00992F-421001 to 00992F-42XXXX

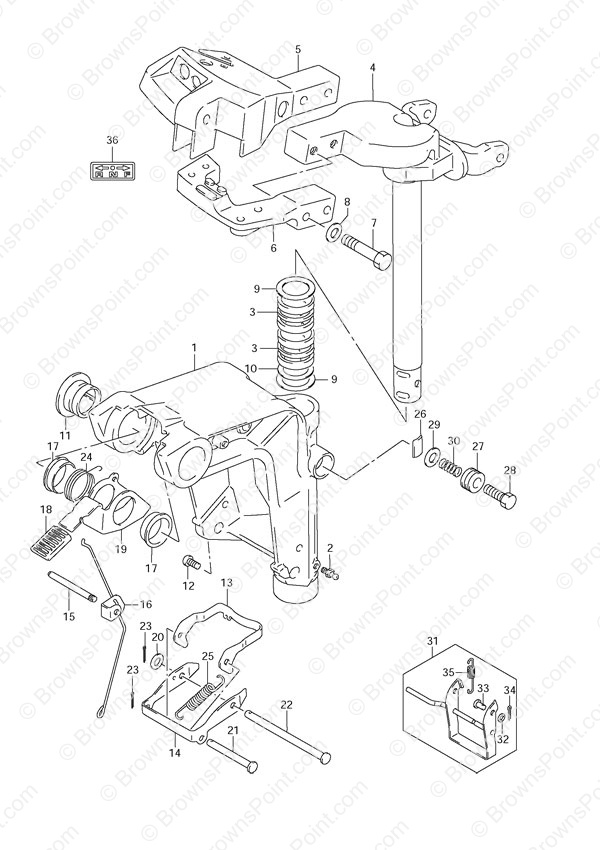

Fig. 39 - Swivel Bracket
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 43111-93933-0EP Swivel Bracket
SKU: 43111-93933-0EP Weight: 4.200000 Brand: Price: $ 334.94 |
Swivel Bracket | 1 | $ 334.94 | ||
| 2 | 22511-99011 Grease Nipple
SKU: 22511-99011 Weight: 0.060000 Brand: Price: $ 3.36 |
Grease Nipple | 3 | $ 3.36 | ||
| 3 | 43711-99J00 Steering Bushing
SKU: 43711-99J00 Weight: 0.250000 Brand: Price: $ 14.52 |
Steering Bushing | 2 | $ 14.52 | ||
| 4 | 43750-93E23-0EP Steering Bracket
SKU: 43750-93E23-0EP Weight: 5.000000 Brand: Price: $ 345.90 |
Steering Bracket | 1 | $ 345.90 | ||
| 5 | 43761-93E11-0EP Handle Bracket
SKU: 43761-93E11-0EP Weight: 1.300000 Brand: Price: $ 197.01 |
Handle Bracket | 1 | $ 197.01 | ||
| 6 | 43755-93E02-0EP Steering Cable End Attachment
SKU: 43755-93E02-0EP Weight: 0.500000 Brand: Price: $ 90.97 |
Steering Cable End Attachment | 1 | $ 90.97 | w/Remote Control | |
| 7 | 09100-08296 Bolt (NLA)
SKU: 09100-08296 Weight: 0.100000 Brand: Price: $ 3.03 |
Bolt (NLA) | 2 | $ 3.03 | ||
| 8 | 09160-08082 Washer (8.5x16x1.2)
SKU: 09160-08082 Weight: 0.060000 Brand: Price: $ 1.63 |
Washer (8.5x16x1.2) | 2 | $ 1.63 | ||
| 9 | 09160-27013 Washer
SKU: 09160-27013 Weight: 0.060000 Brand: Price: $ 3.72 |
Washer | 2 | $ 3.72 | ||
| 10 | 09280-27004 O-Ring
SKU: 09280-27004 Weight: 0.100000 Brand: Price: $ 1.93 |
O-Ring | 1 | $ 1.93 | ||
| 11 | 43211-87JL0 Swivel Bracket Bushing
SKU: 43211-87JL0 Weight: 0.100000 Brand: Price: $ 33.39 |
Swivel Bracket Bushing | 2 | $ 33.39 | ||
| 12 | 09125-06063 Screw (6x10)
SKU: 09125-06063 Weight: 0.060000 Brand: Price: $ 1.96 |
Screw (6x10) | 1 | $ 1.96 | ||
| 13 | 45231-93901 Reverse Lock Arm (NLA)
SKU: 45231-93901 Weight: 0.100000 Brand: Price: $ 0.00 |
Reverse Lock Arm (NLA) | 1 | $ 0.00 | ||
| 14 | 45241-90L00 Reverse Lock Arm Link
SKU: 45241-90L00 Weight: 0.250000 Brand: Price: $ 8.17 |
Reverse Lock Arm Link | 1 | $ 8.17 | ||
| 15 | 41225-94502 Release Arm Pin
SKU: 41225-94502 Weight: 0.060000 Brand: Price: $ 5.64 |
Release Arm Pin | 1 | $ 5.64 | ||
| 16 | 45250-89E01 Release Link (NLA)
SKU: 45250-89E01 Weight: 0.100000 Brand: Price: $ 13.78 |
Release Link (NLA) | 1 | $ 13.78 | ||
| 17 | 09306-22006 Bushing
SKU: 09306-22006 Weight: 0.060000 Brand: Price: $ 1.26 |
Bushing | 2 | $ 1.26 | ||
| 18 | 45255-93001 Release Lever Rubber
SKU: 45255-93001 Weight: 0.100000 Brand: Price: $ 4.20 |
Release Lever Rubber | 1 | $ 4.20 | ||
| 19 | 45261-92L00 Release Lever
SKU: 45261-92L00 Weight: 0.250000 Brand: Price: $ 8.42 |
Release Lever | 1 | $ 8.42 | ||
| 20 | 09160-06082 Washer (6.5x13x1.0)
SKU: 09160-06082 Weight: 0.060000 Brand: Price: $ 1.44 |
Washer (6.5x13x1.0) | 1 | $ 1.44 | ||
| 21 | 09200-05014 Pin
SKU: 09200-05014 Weight: 0.100000 Brand: Price: $ 3.00 |
Pin | 1 | $ 3.00 | ||
| 22 | 09200-06061 Pin
SKU: 09200-06061 Weight: 0.060000 Brand: Price: $ 8.40 |
Pin | 1 | $ 8.40 | ||
| 23 | 09204-01002 Cotter Pin
SKU: 09204-01002 Weight: 0.060000 Brand: Price: $ 1.70 |
Cotter Pin | 2 | $ 1.70 | ||
| 24 | 45267-94J00 Release Spring
SKU: 45267-94J00 Weight: 0.100000 Brand: Price: $ 5.17 |
Release Spring | 1 | $ 5.17 | ||
| 25 | 45212-94J01 Reverse Lock Spring
SKU: 45212-94J01 Weight: 0.060000 Brand: Price: $ 5.26 |
Reverse Lock Spring | 2 | $ 5.26 | ||
| 26 | 43411-939L0 Steering Adjuster Plate
SKU: 43411-939L0 Weight: 0.100000 Brand: Price: $ 3.31 |
Steering Adjuster Plate | 1 | $ 3.31 | ||
| 27 | 43412-93900 Steering Adjuster Cover
SKU: 43412-93900 Weight: 0.100000 Brand: Price: $ 3.76 |
Steering Adjuster Cover | 1 | $ 3.76 | ||
| 28 | 09100-08232 Bolt (8x30)
SKU: 09100-08232 Weight: 0.060000 Brand: Price: $ 3.57 |
Bolt (8x30) | 1 | $ 3.57 | ||
| 29 | 09160-08082 Washer (8.5x16x1.2)
SKU: 09160-08082 Weight: 0.060000 Brand: Price: $ 1.63 |
Washer (8.5x16x1.2) | 1 | $ 1.63 | ||
| 30 | 29440-93J00 Steering Adjuster Spring
SKU: 29440-93J00 Weight: 0.100000 Brand: Price: $ 2.24 |
Steering Adjuster Spring | 1 | $ 2.24 | ||
| 31 | 45700-93E01 Shallow Water Drive Assy
SKU: 45700-93E01 Weight: 0.340000 Brand: Price: $ 59.43 |
Shallow Water Drive Assy | 1 | $ 59.43 | ||
| 32 | 09160-06082 Washer (6.5x13x1.0)
SKU: 09160-06082 Weight: 0.060000 Brand: Price: $ 1.44 |
Washer (6.5x13x1.0) | 2 | $ 1.44 | ||
| 33 | 09200-06068 Shallow Drive Arm Shaft
SKU: 09200-06068 Weight: 0.100000 Brand: Price: $ 4.18 |
Shallow Drive Arm Shaft | 2 | $ 4.18 | ||
| 34 | 09204-01006 Cotter Pin
SKU: 09204-01006 Weight: 0.060000 Brand: Price: $ 1.40 |
Cotter Pin | 2 | $ 1.40 | ||
| 35 | 09443-08031 Spring
SKU: 09443-08031 Weight: 0.060000 Brand: Price: $ 7.57 |
Spring | 1 | $ 7.57 | ||
| 36 | 21131-94J00-YAY Clutch Shift Mark
SKU: 21131-94J00-YAY Weight: 0.060000 Brand: Price: $ 1.46 |
Clutch Shift Mark | 1 | $ 1.46 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
