Suzuki DF 9.9 Parts Listings - 2004
S/N 00992F-421001 to 00992F-42XXXX

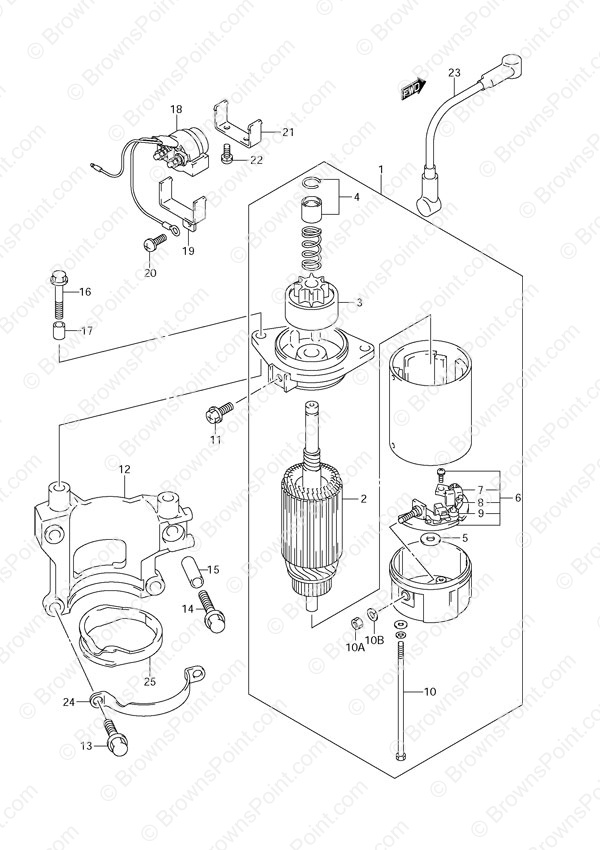

Fig. 25 - Starting Motor
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 31100-95D00 Starter Motor Assembly
SKU: 31100-95D00 Weight: 10.000000 Brand: Price: $ 776.71 |
Starter Motor Assembly | 1 | $ 776.71 | ||
| 2 | 31310-96300 Armature (NLA)
SKU: 31310-96300 Weight: 5.000000 Brand: Price: $ 269.35 |
Armature (NLA) | 1 | $ 269.35 | ||
| 3 | 31320-94400 Pinion Assembly
SKU: 31320-94400 Weight: 0.100000 Brand: Price: $ 274.10 |
Pinion Assembly | 1 | $ 274.10 | ||
| 4 | 31312-96300 Pinion Stopper Set
SKU: 31312-96300 Weight: 0.250000 Brand: Price: $ 15.24 |
Pinion Stopper Set | 1 | $ 15.24 | ||
| 5 | 31360-96300 Washer Kit (NLA)
SKU: 31360-96300 Weight: 0.100000 Brand: Price: $ 7.35 |
Washer Kit (NLA) | 1 | $ 7.35 | ||
| 6 | 31173-89J00 Brush Holder Assembly
SKU: 31173-89J00 Weight: 0.250000 Brand: Price: $ 93.18 |
Brush Holder Assembly | 1 | $ 93.18 | ||
| 7 | 31131-96300 Brush (+)
SKU: 31131-96300 Weight: 0.100000 Brand: Price: $ 22.37 |
Brush (+) | 1 | $ 22.37 | ||
| 8 | 31132-96300 Brush (-)
SKU: 31132-96300 Weight: 0.100000 Brand: Price: $ 11.89 |
Brush (-) | 1 | $ 11.89 | ||
| 9 | 31135-89J00 Spring (NLA)
SKU: 31135-89J00 Weight: 0.100000 Brand: Price: $ 4.88 |
Spring (NLA) | 2 | $ 4.88 | ||
| 10 | 31281-93340 Through Bolt (NLA)
SKU: 31281-93340 Weight: 0.100000 Brand: Price: $ 3.24 |
Through Bolt (NLA) | 2 | $ 3.24 | ||
| 10A | 08310-00067 Nut
SKU: 08310-00067 Weight: 0.060000 Brand: Price: $ 1.85 |
Nut | 1 | $ 1.85 | ||
| 10B | 08321-01067 Lock Washer
SKU: 08321-01067 Weight: 0.060000 Brand: Price: $ 1.85 |
Lock Washer | 1 | $ 1.85 | ||
| 11 | 01550-06167 BOLT
SKU: 01550-06167 Weight: 0.060000 Brand: Price: $ 2.33 |
BOLT | 1 | $ 2.33 | ||
| 12 | 31911-95D00-0EP Starter Motor Bracket (NLA)
SKU: 31911-95D00-0EP Weight: 1.000000 Brand: Price: $ 48.93 |
Starter Motor Bracket (NLA) | 1 | $ 48.93 | ||
| 13 | 01550-08257 BOLT
SKU: 01550-08257 Weight: 0.060000 Brand: Price: $ 2.82 |
BOLT | 3 | $ 2.82 | ||
| 14 | 01550-08357 BOLT
SKU: 01550-08357 Weight: 0.060000 Brand: Price: $ 3.54 |
BOLT | 1 | $ 3.54 | ||
| 15 | 09180-08210 Spacer (NLA)
SKU: 09180-08210 Weight: 0.100000 Brand: Price: $ 1.79 |
Spacer (NLA) | 1 | $ 1.79 | ||
| 16 | 01550-06357 BOLT
SKU: 01550-06357 Weight: 0.060000 Brand: Price: $ 2.82 |
BOLT | 2 | $ 2.82 | ||
| 17 | 04211-09189 PIN
SKU: 04211-09189 Weight: 0.060000 Brand: Price: $ 1.66 |
PIN | 2 | $ 1.66 | ||
| 18 | 31800-94401 Starter Relay
SKU: 31800-94401 Weight: 0.340000 Brand: Price: $ 140.18 |
Starter Relay | 1 | $ 140.18 | ||
| 19 | 38412-94700 Relay Bracket (NLA)
SKU: 38412-94700 Weight: 0.100000 Brand: Price: $ 4.18 |
Relay Bracket (NLA) | 1 | $ 4.18 | ||
| 20 | 02112-36167 SCREW
SKU: 02112-36167 Weight: 0.060000 Brand: Price: $ 2.34 |
SCREW | 1 | $ 2.34 | ||
| 21 | 31805-95501 Relay Bracket
SKU: 31805-95501 Weight: 0.125000 Brand: Price: $ 4.20 |
Relay Bracket | 1 | $ 4.20 | Optional | |
| 22 | 02112-35127 SCREW 5X12
SKU: 02112-35127 Weight: 0.060000 Brand: Price: $ 1.54 |
SCREW 5X12 | 2 | $ 1.54 | Optional | |
| 23 | 33820-93E01 Starter Sub Cable (NLA)
SKU: 33820-93E01 Weight: 5.000000 Brand: Price: $ 7.74 |
Starter Sub Cable (NLA) | 1 | $ 7.74 | ||
| 24 | 31912-95D00 Starting Motor Band
SKU: 31912-95D00 Weight: 0.250000 Brand: Price: $ 7.70 |
Starting Motor Band | 1 | $ 7.70 | Optional | |
| 25 | 31918-94402 Lower Damper
SKU: 31918-94402 Weight: 0.060000 Brand: Price: $ 9.82 |
Lower Damper | 1 | $ 9.82 | Optional |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
